Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in the illustration.

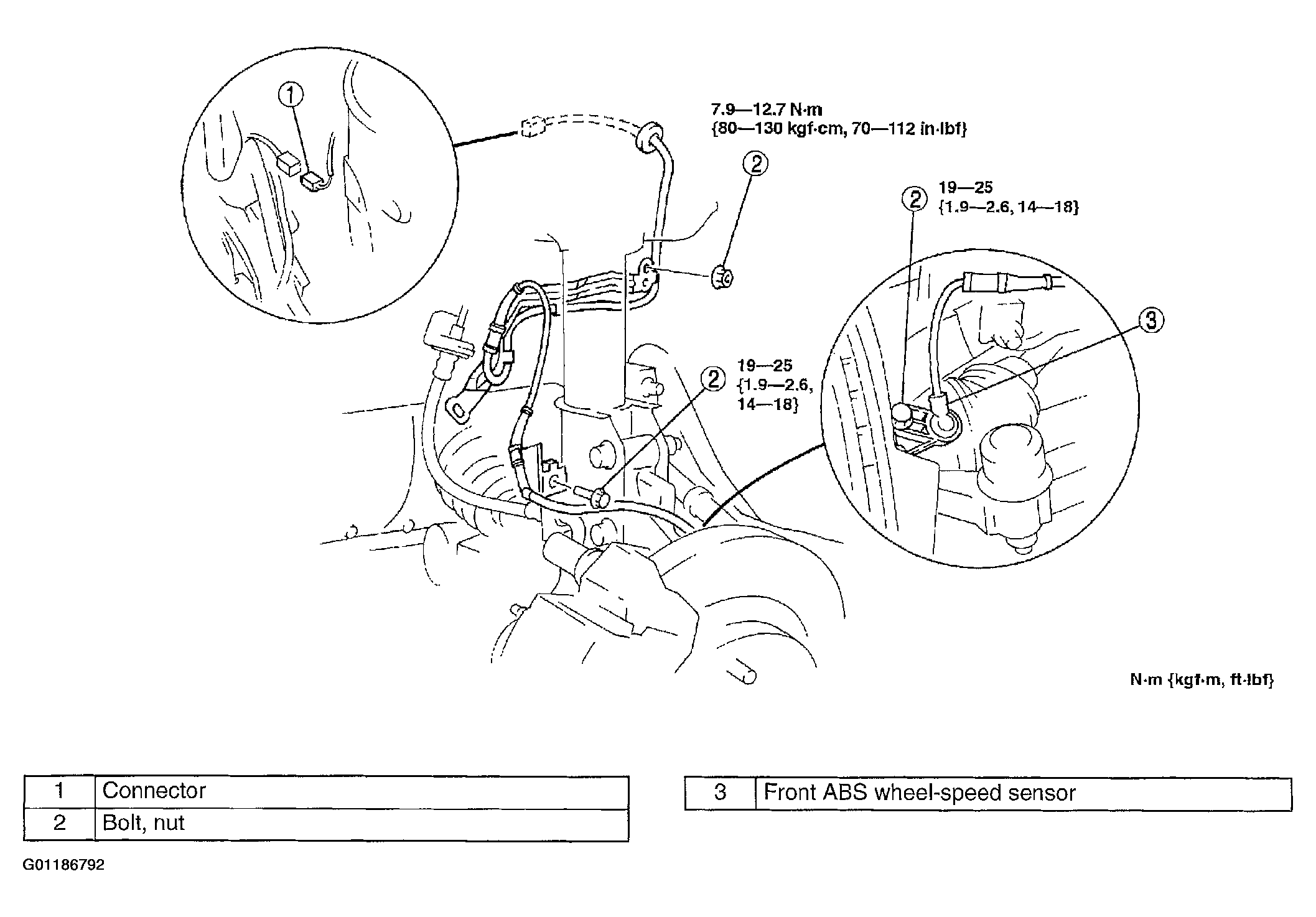

    Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
    G01186792Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
