Front Bumper Installation Note

1. Spread the front bumper ends (wheel arches) apart.
2. Attach the front bumper to the body.
3. Press the front bumper connection portion into the body to engage with the bracket.

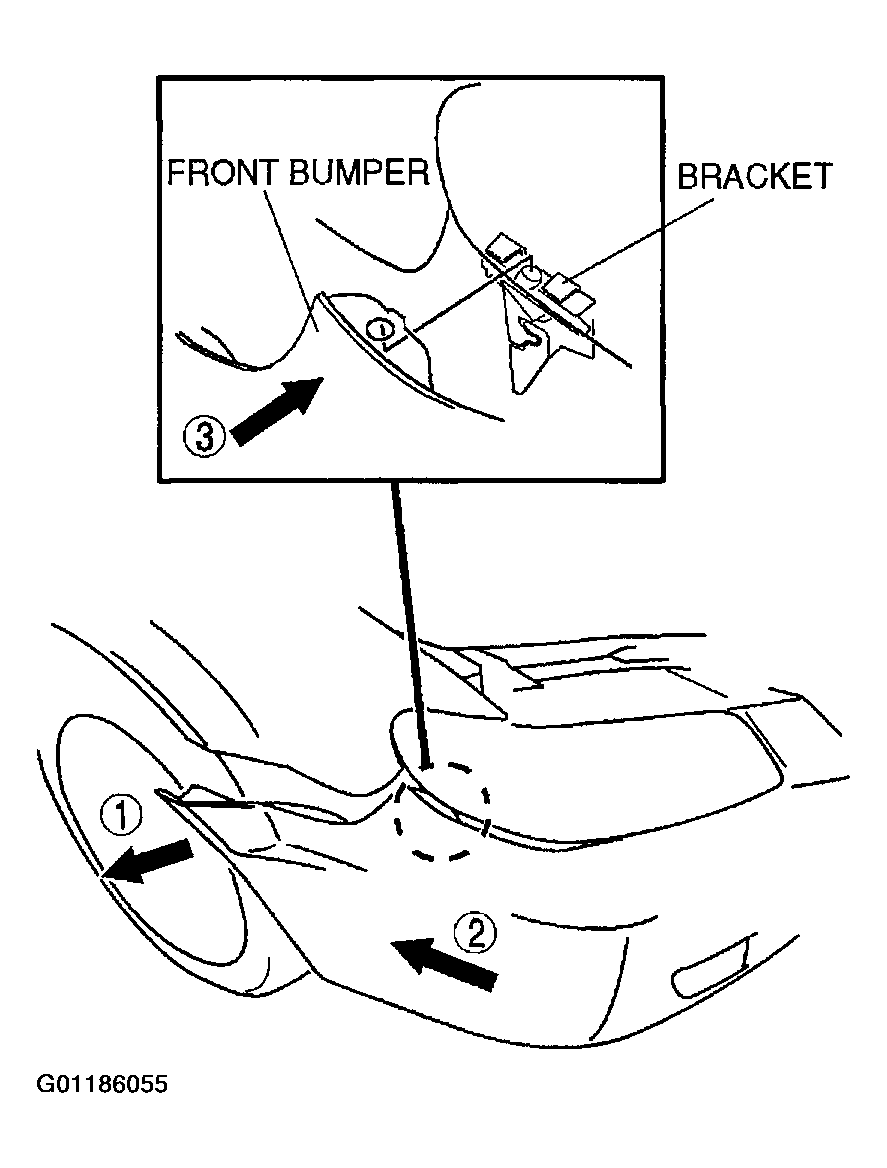

Fig 1: Engaging Front Bumper To Body

Courtesy of MAZDA MOTORS CORP.
