Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure(s).

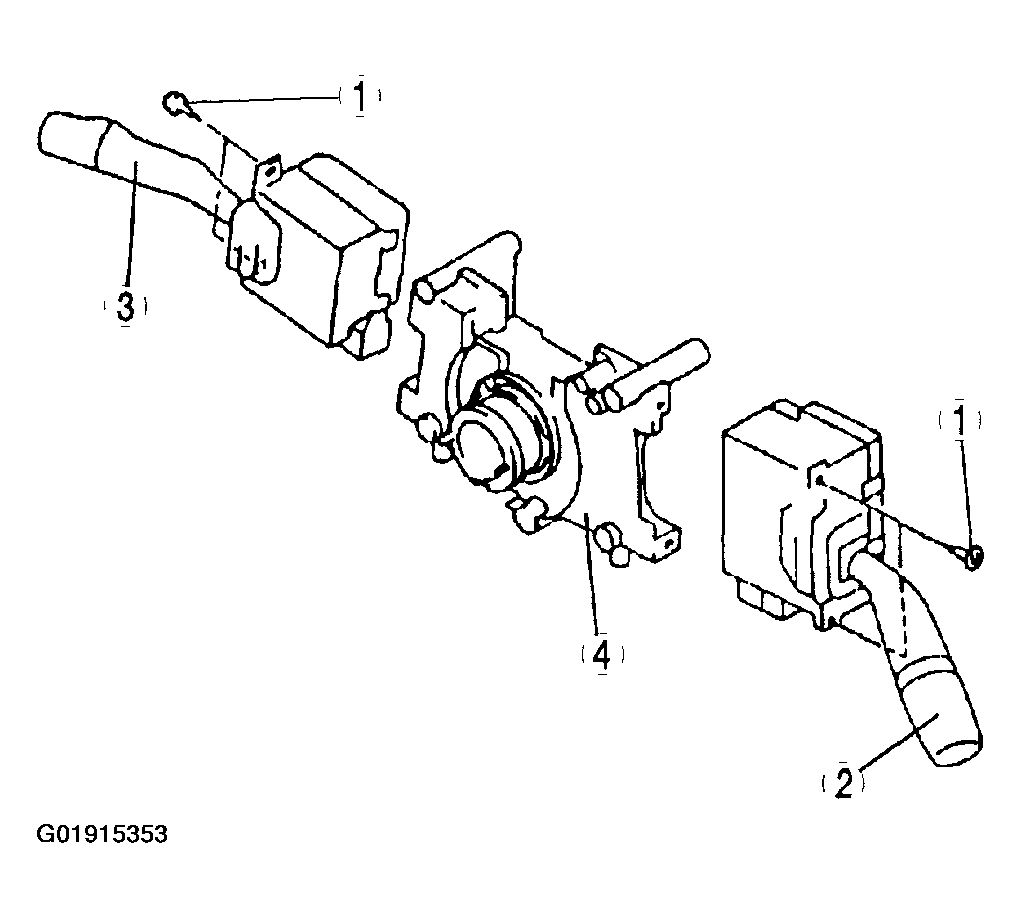

    Fig 1: Disassembling Components Of Combination Switch
    G01915353Courtesy of MAZDA MOTORS CORP.
    Fig 2: Combination Switch Components Disassembling Sequence
    G01915352Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
