Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure(s).

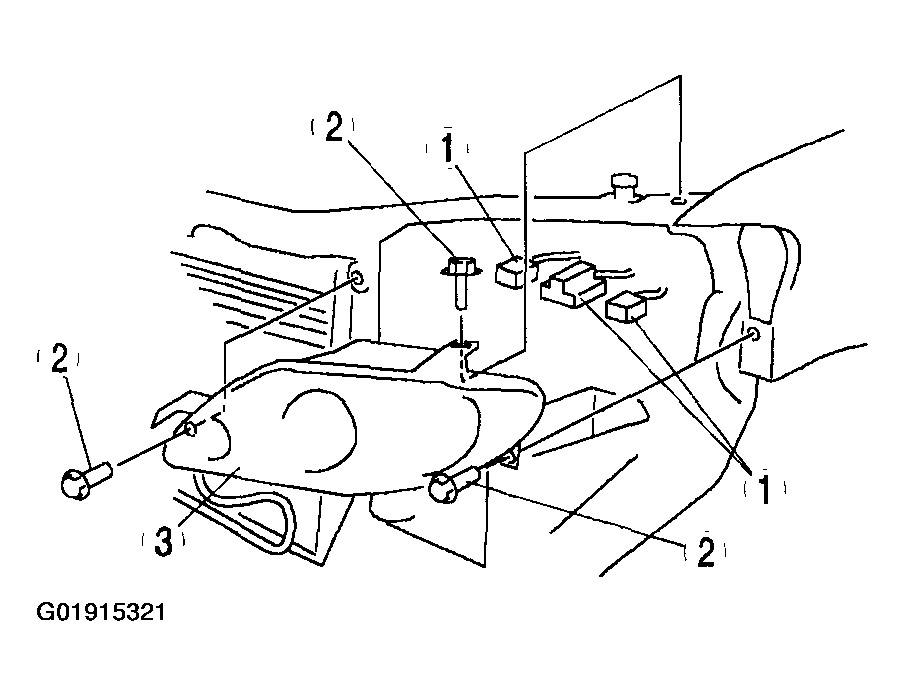

Fig 1: Removing Front Combination Light
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Combination Light Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the headlight aiming. (See HEADLIGHT ADJUSTMENT .)
