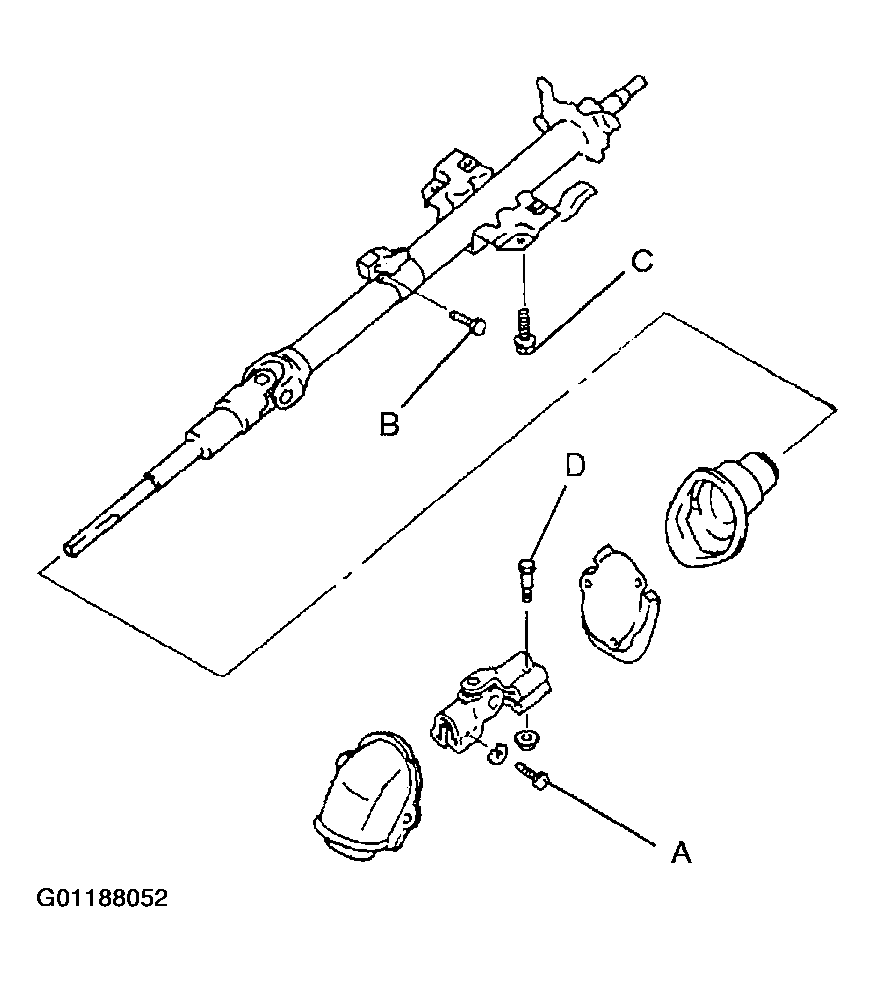

Steering Shaft Installation Note
CAUTION:
Do not apply a shock in the axial direction of the shaft.
- Tighten bolt A.
- Tighten bolt C.
- Tighten bolt B.
- Release the adjusting lever, and lower the steering shaft to the lowest position.
- Tighten bolt D.
Courtesy of MAZDA MOTORS CORP.
