Front Lower Arm: Removal/Installation: Notes
Remove in the order indicated in the illustration.

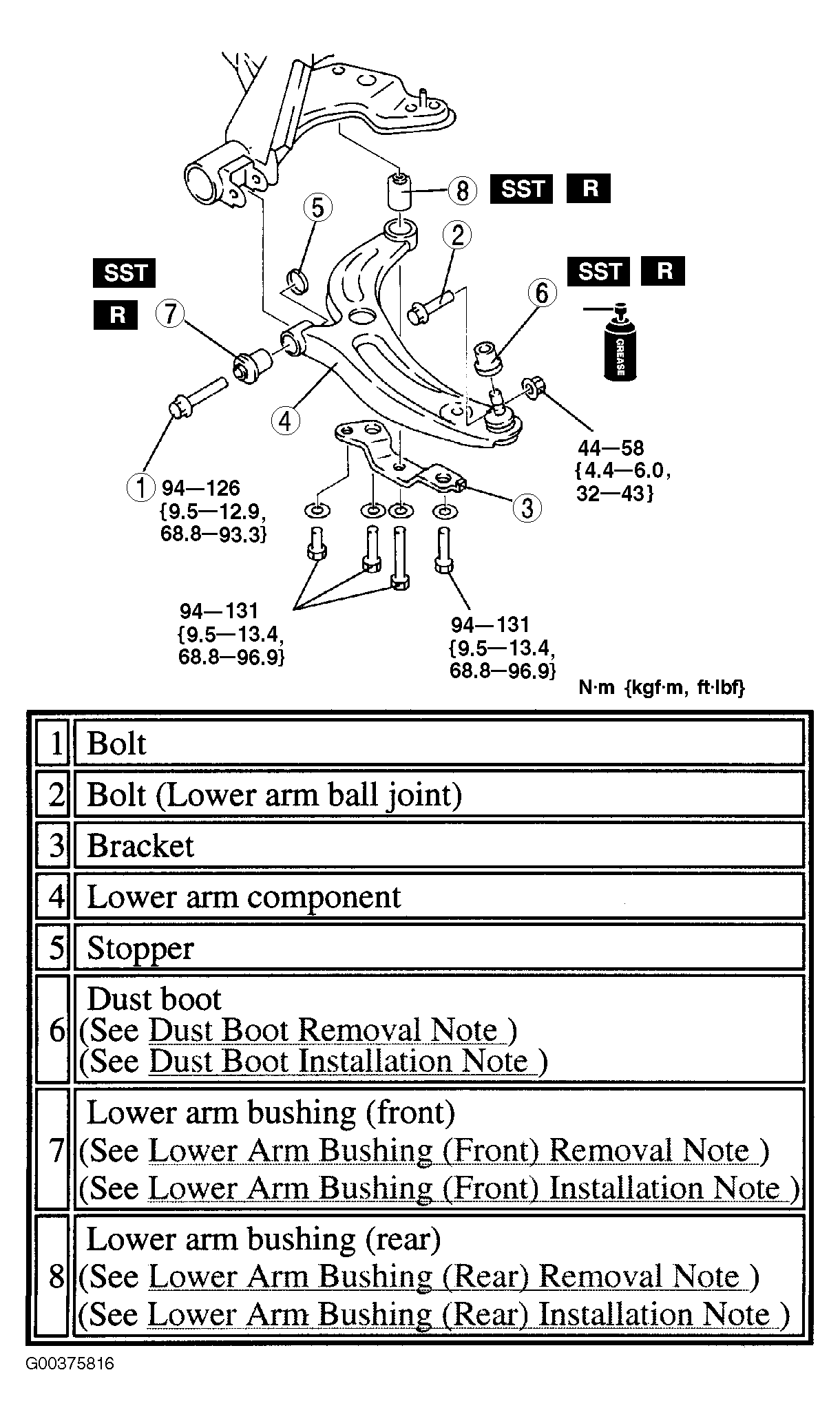

Fig 1: Removing Front Lower Arm
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
