Front Strut Bar: Removal/Installation
Remove in the order indicated in the illustration.

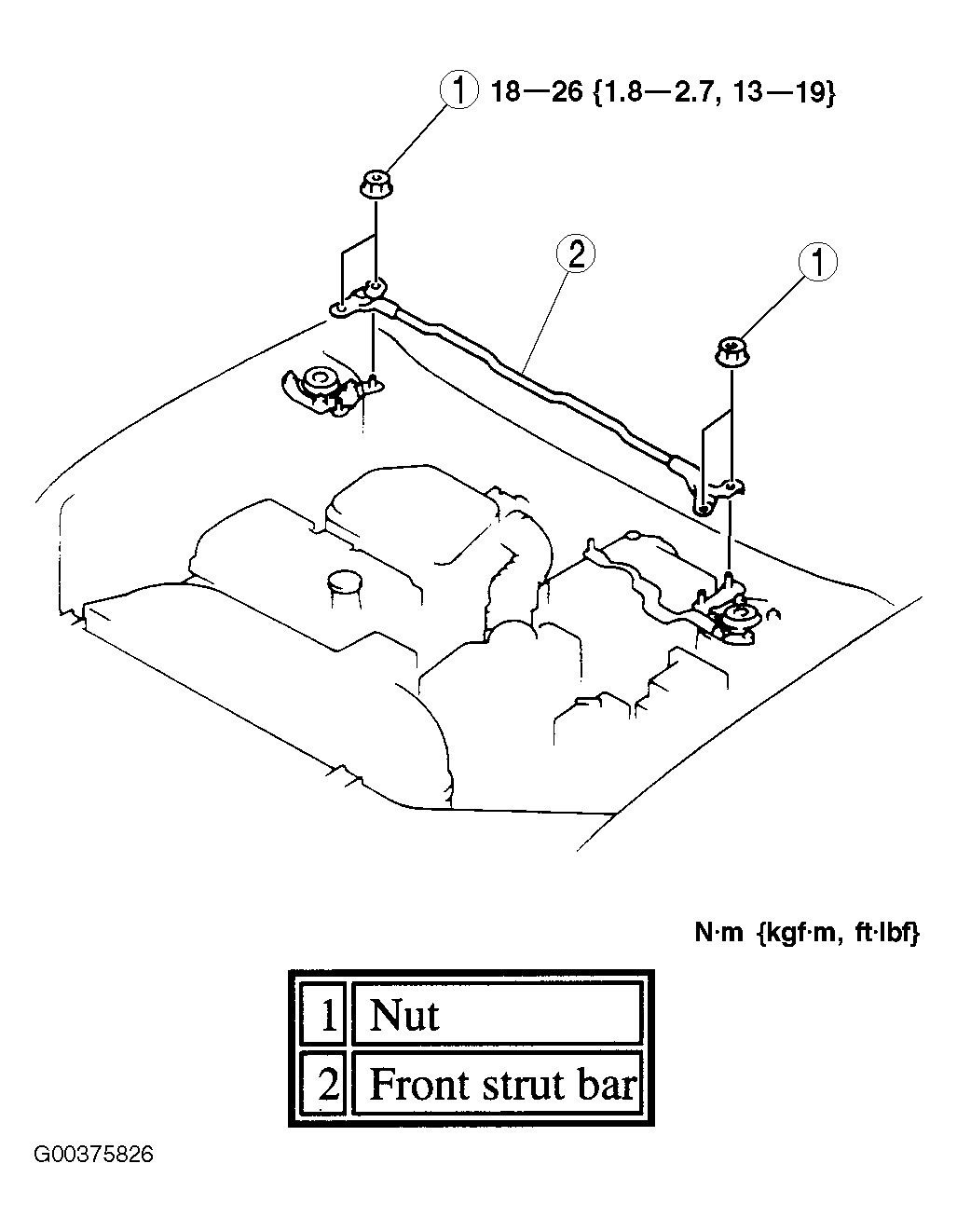

Fig 1: Removing Front Strut Bar
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
