Cruise Control Switch Removal/Installation

Disconnect the negative battery cable.
Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
Disconnect the cruise control switch connector.
Remove in the order indicated in the illustration.

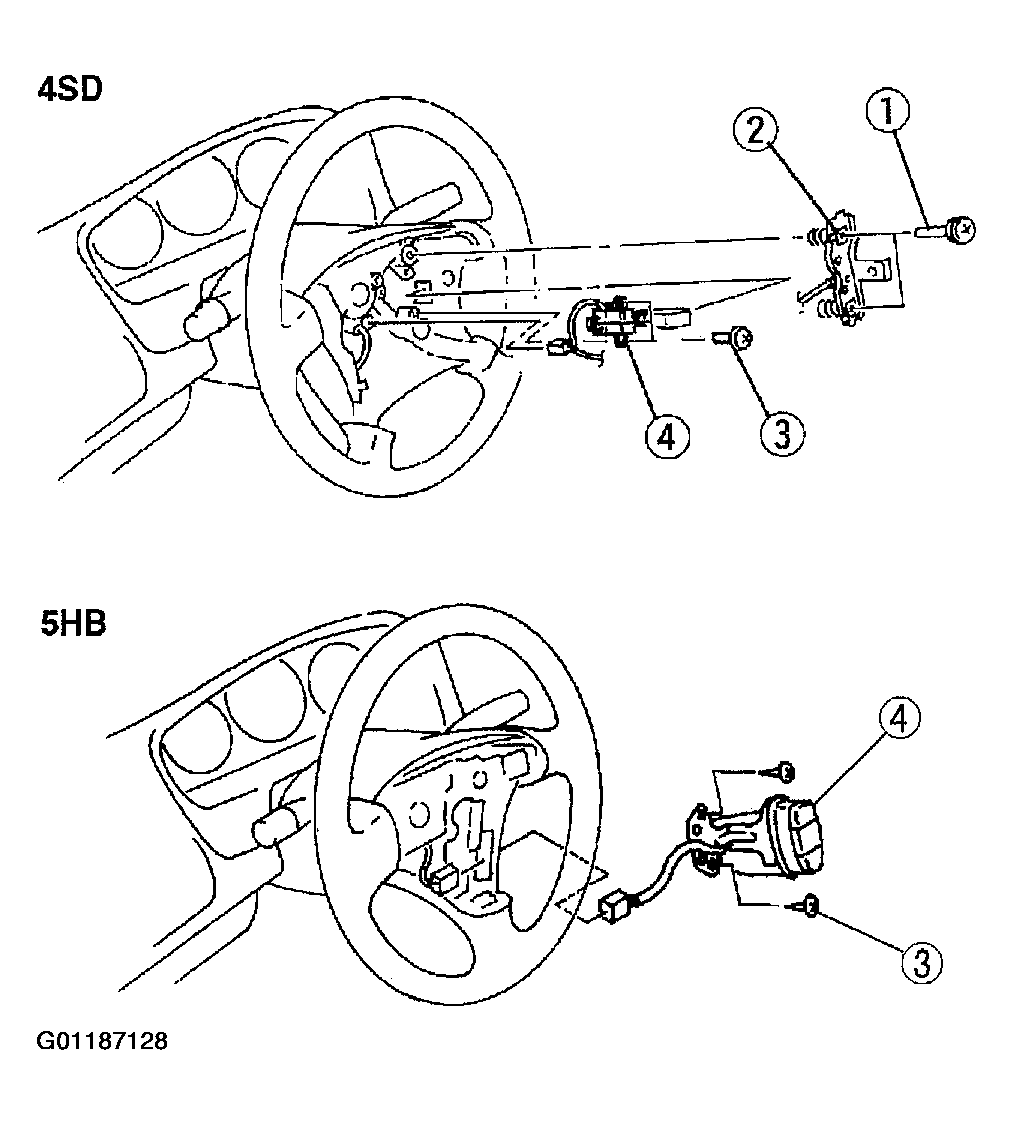

Fig 1: Removing/Installing Cruise Control Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Cruise Control Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
