Keyless Entry System Check Sheet

NOTE:

• Use the sheet below as a customer interview sheet when accepting a vehicle for service.
• If the symptom is "Power door lock system does not operate with transmitter at all", find out how the customer uses the keyless entry system by following the check sheet.

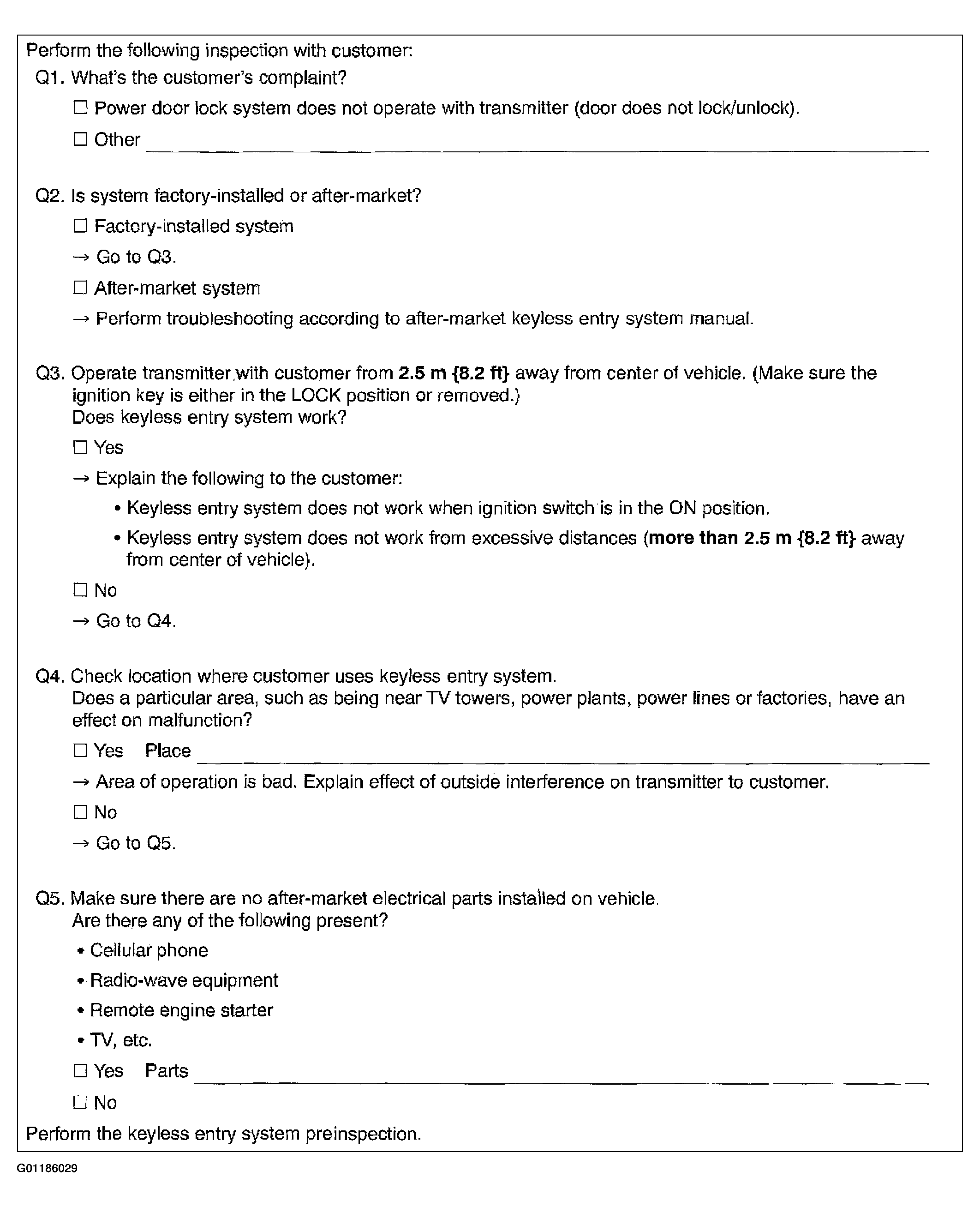

Fig 1: Keyless Entry Customer Check Sheet

Courtesy of MAZDA MOTORS CORP.
