Keyless Entry System Pre-Inspection
Keyless Entry System Pre-Inspection
Perform the following pre-inspection before troubleshooting.

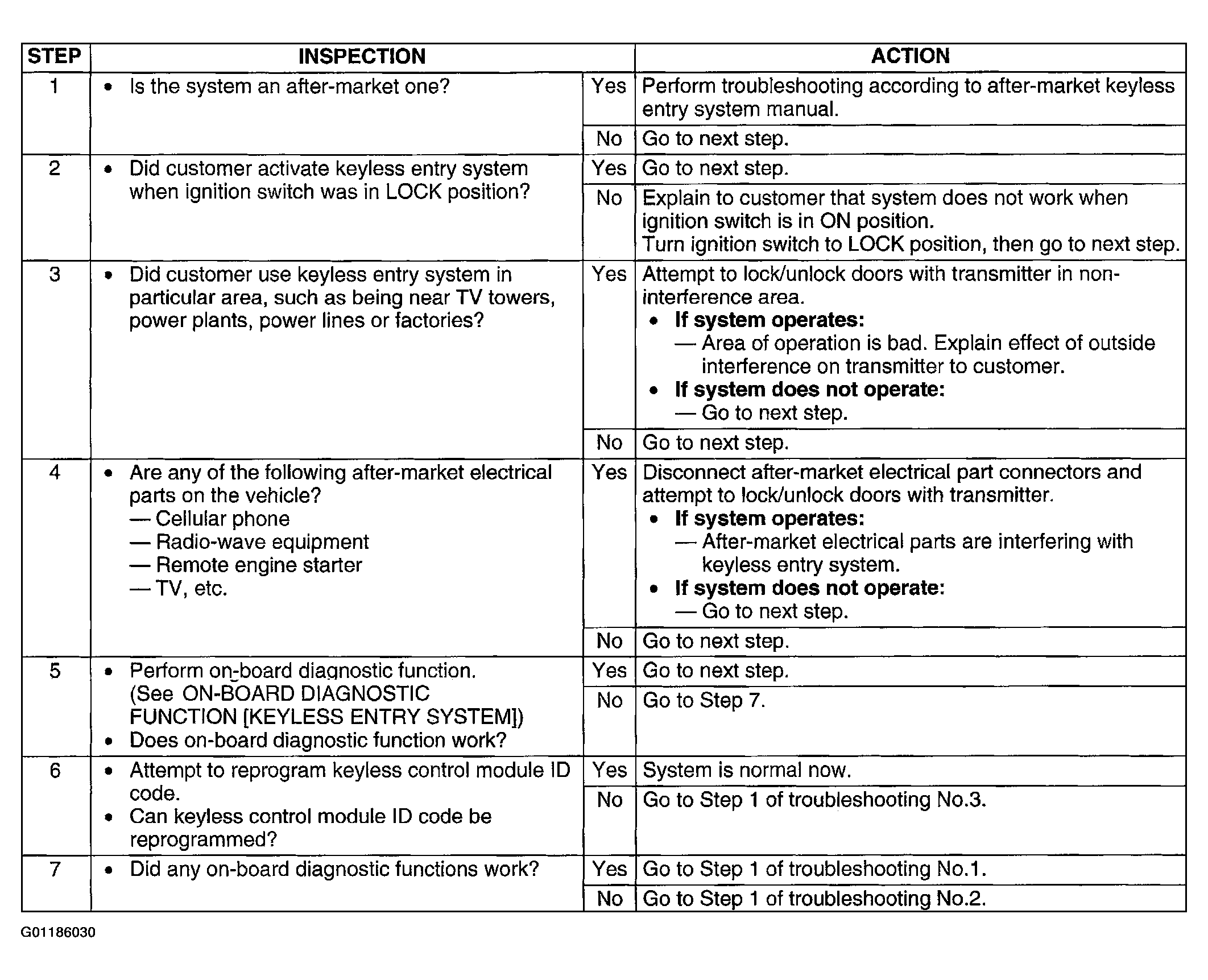

Fig 1: Keyless Entry Pre-Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
