No. 7 Brake System Malfunction

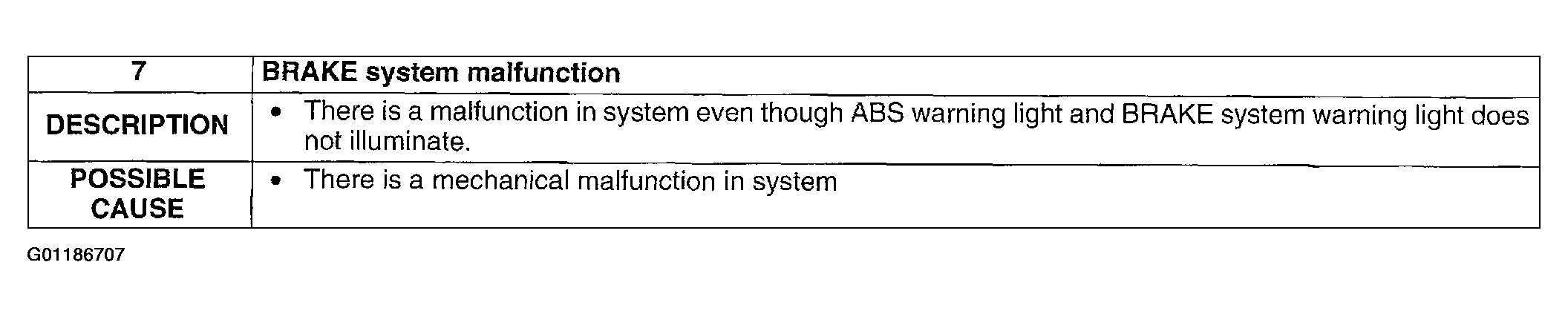

Fig 1: No. 7 Brake System Malfunction Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

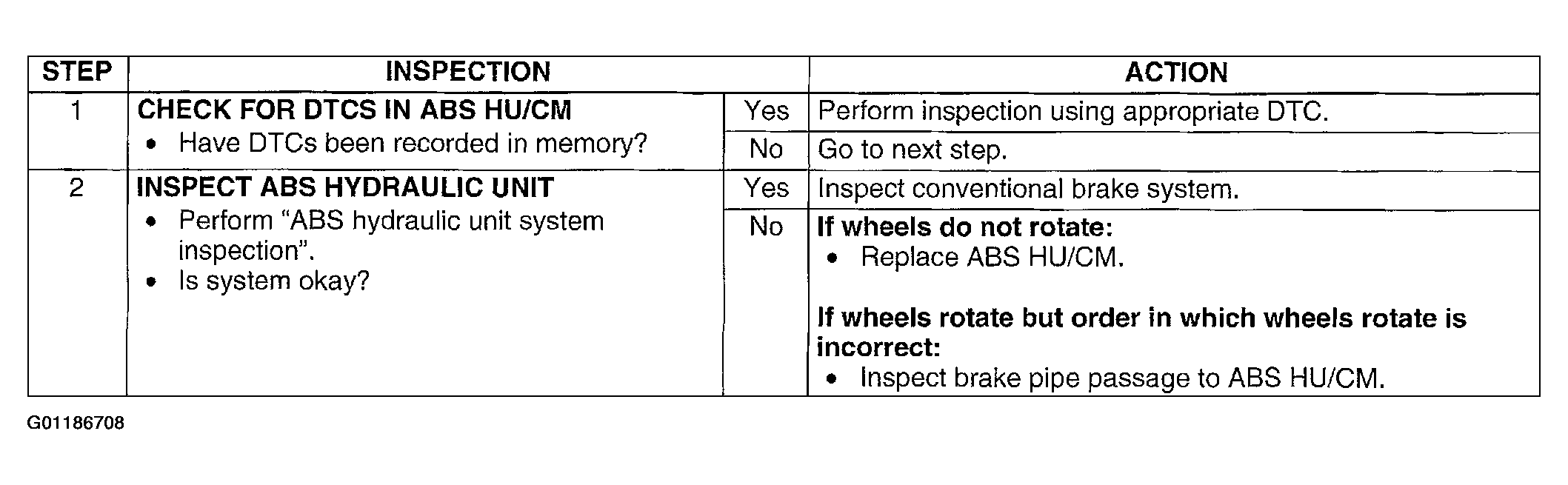

Fig 2: No. 7 Brake System Malfunction Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
