Location Index

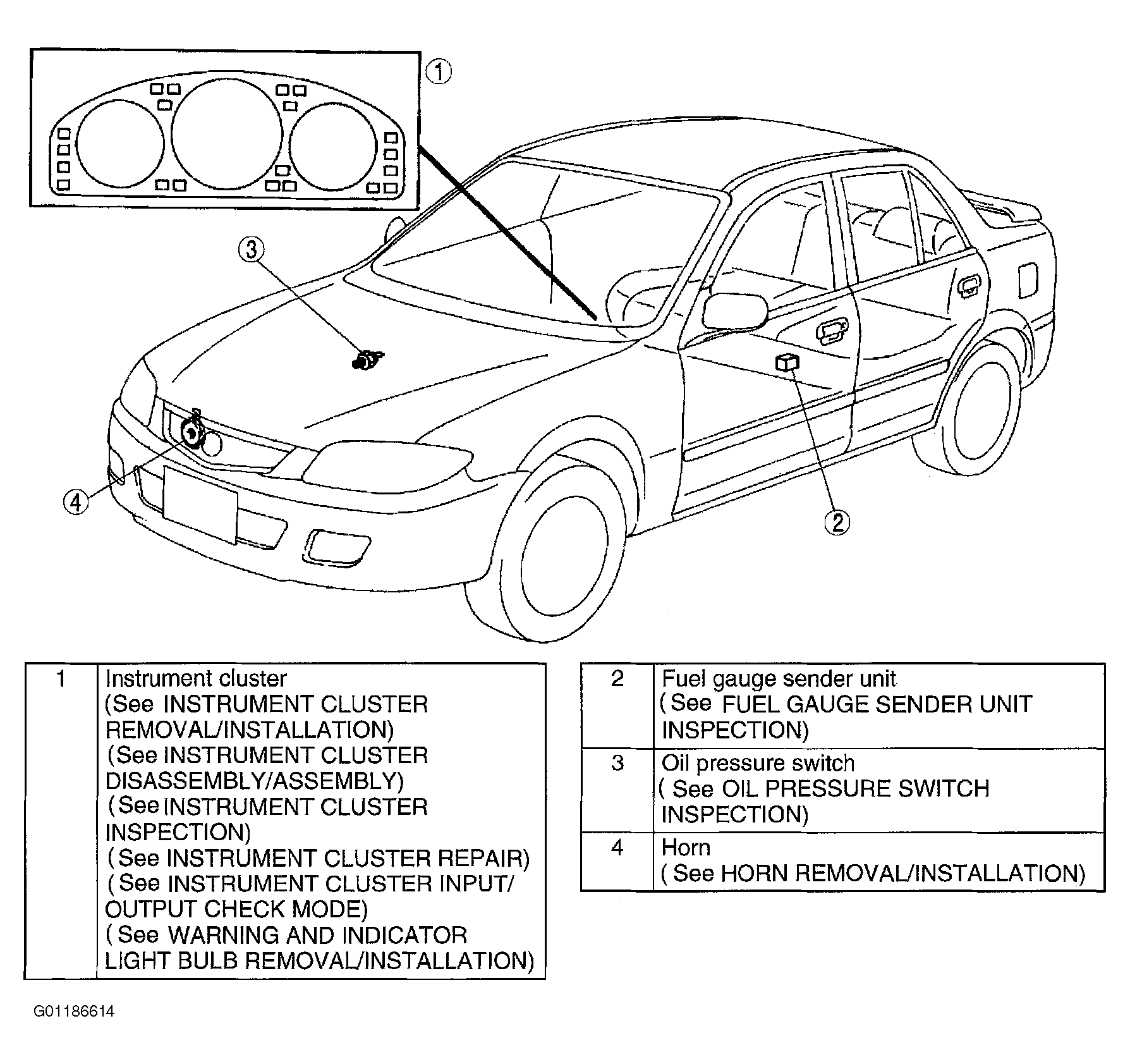

Fig 1: Identifying Instrument Panel Components
G01186614Courtesy of MAZDA MOTORS CORP.
