Cylinder Head Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration. Refer to DISASSEMBLY NOTES .

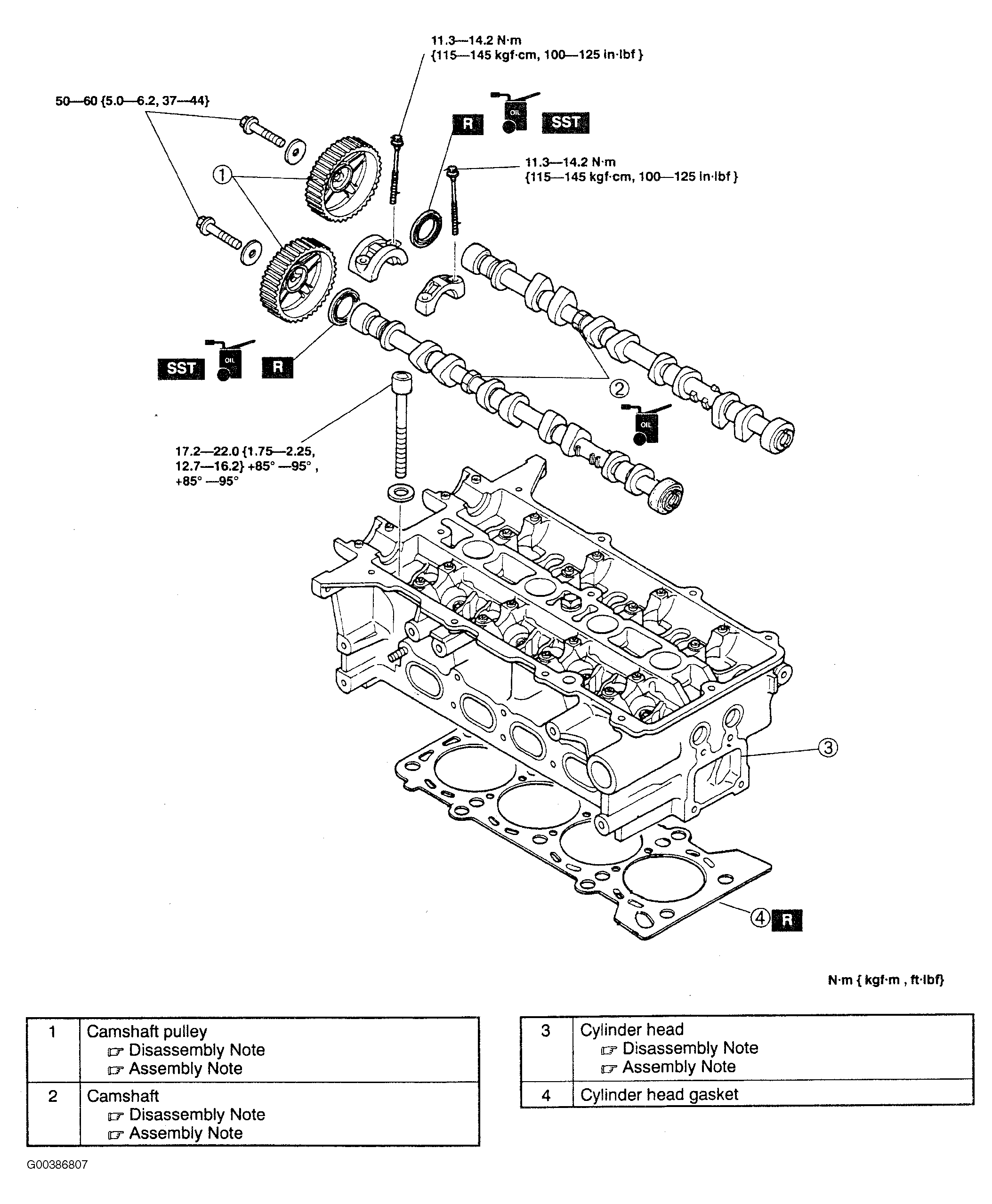

    Fig 1: Disassembling/Assembling Cylinder Head.
    G00386807Courtesy of MAZDA MOTORS CORP.
  2. Assemble in reverse order of disassembly. Refer to ASSEMBLY NOTES .
