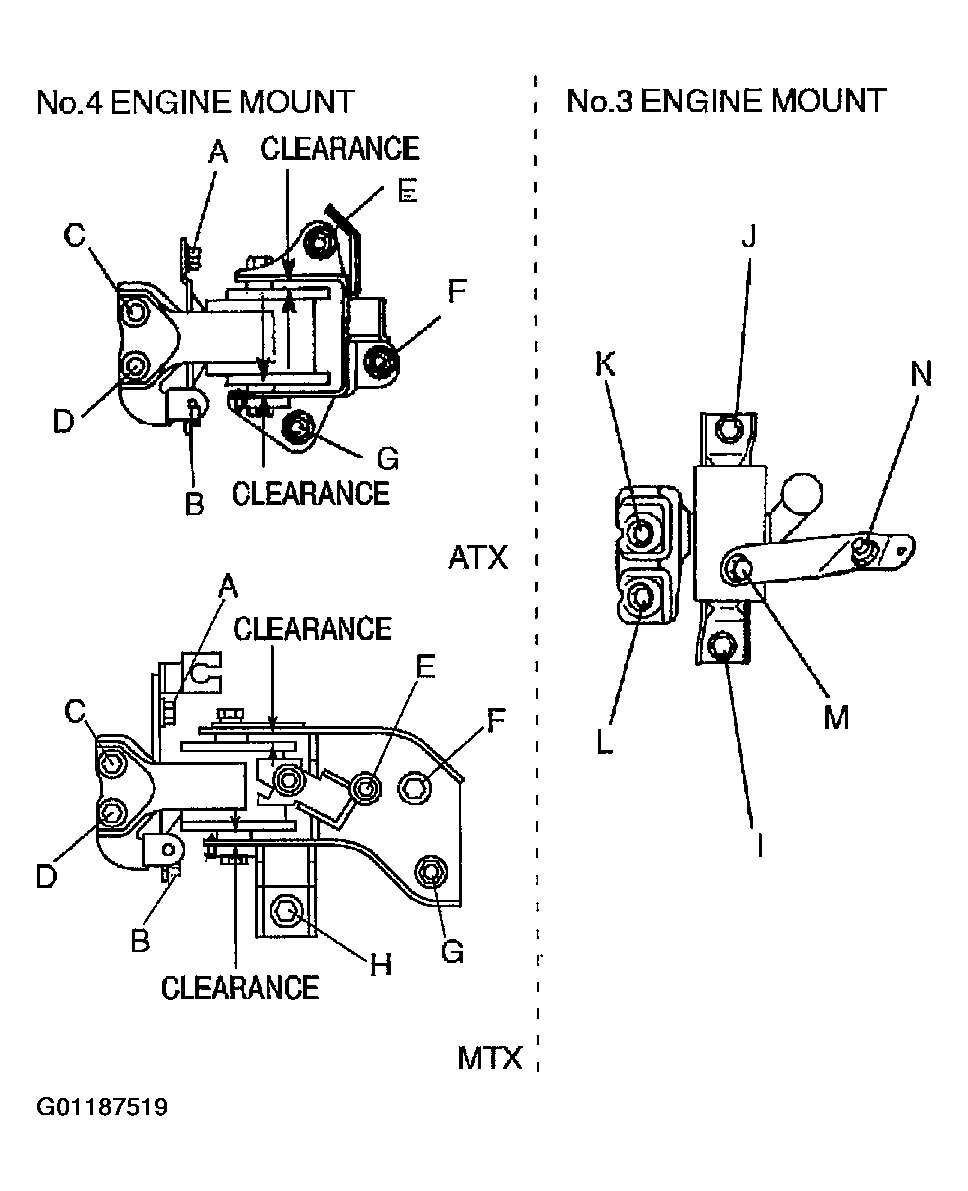

No. 3, No. 4 Engine Mount Installation Note
- Hand tighten the No. 3 and No. 4 engine mount rubber bolts and nuts (A-M).
- Tighten the No. 4 engine mount rubber bolts and nuts (A-H).
- Tighten the No. 3 engine mount rubber bolts and nuts (I-N)
- Measure the No. 4 engine mount rubber clearance.
- If not within the specification, repeat from step 1.
Standard Clearance
3.0-4.0 mm {0.12-0.15 in}
