Thermostat Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the fresh air duct.
  3. Drain the engine coolant.
  4. Remove in the order indicated in the illustrations.

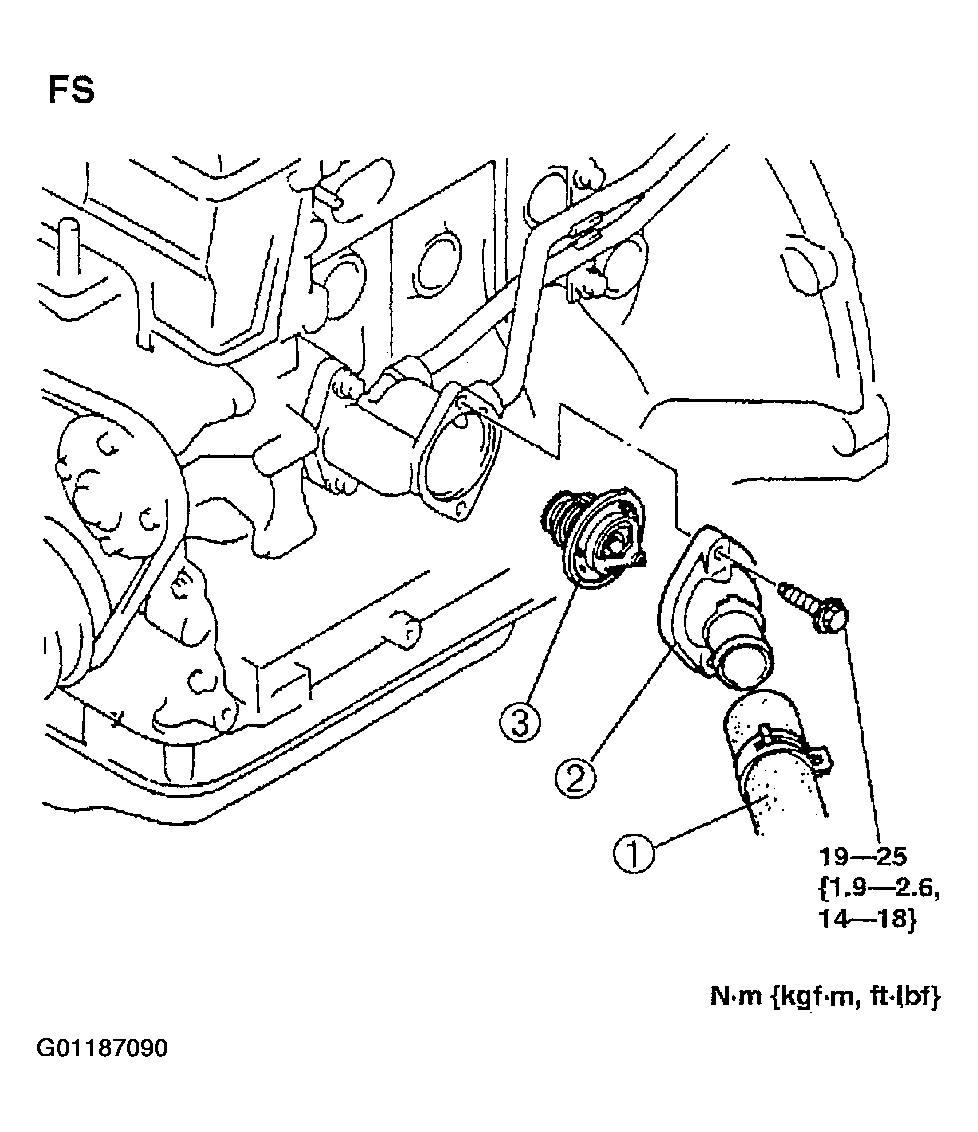

    Fig 1: Removing/Installing Thermostat
    G01187090Courtesy of MAZDA MOTORS CORP.
    Fig 2: Removing/Installing Thermostat Legend
    G01187089Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal. Refer to INSTALLATION NOTE .
