A/C Amplifier Assembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the evaporator temperature sensor as shown in the figure.

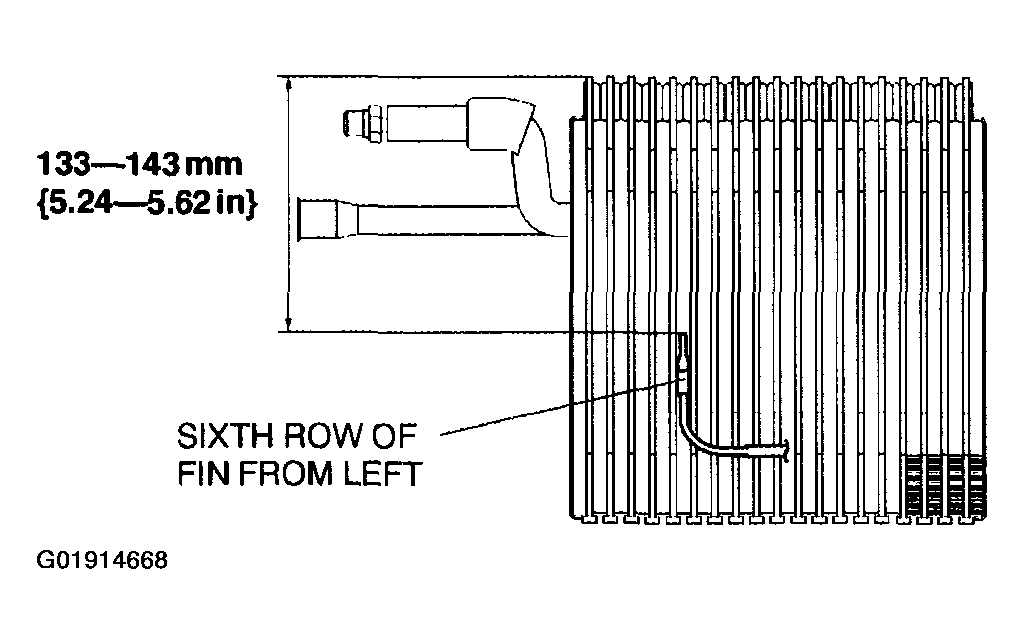

Fig 1: Assembling Evaporator Temperature Sensor
Courtesy of MAZDA MOTORS CORP.
