Cooling Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the figure.
CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

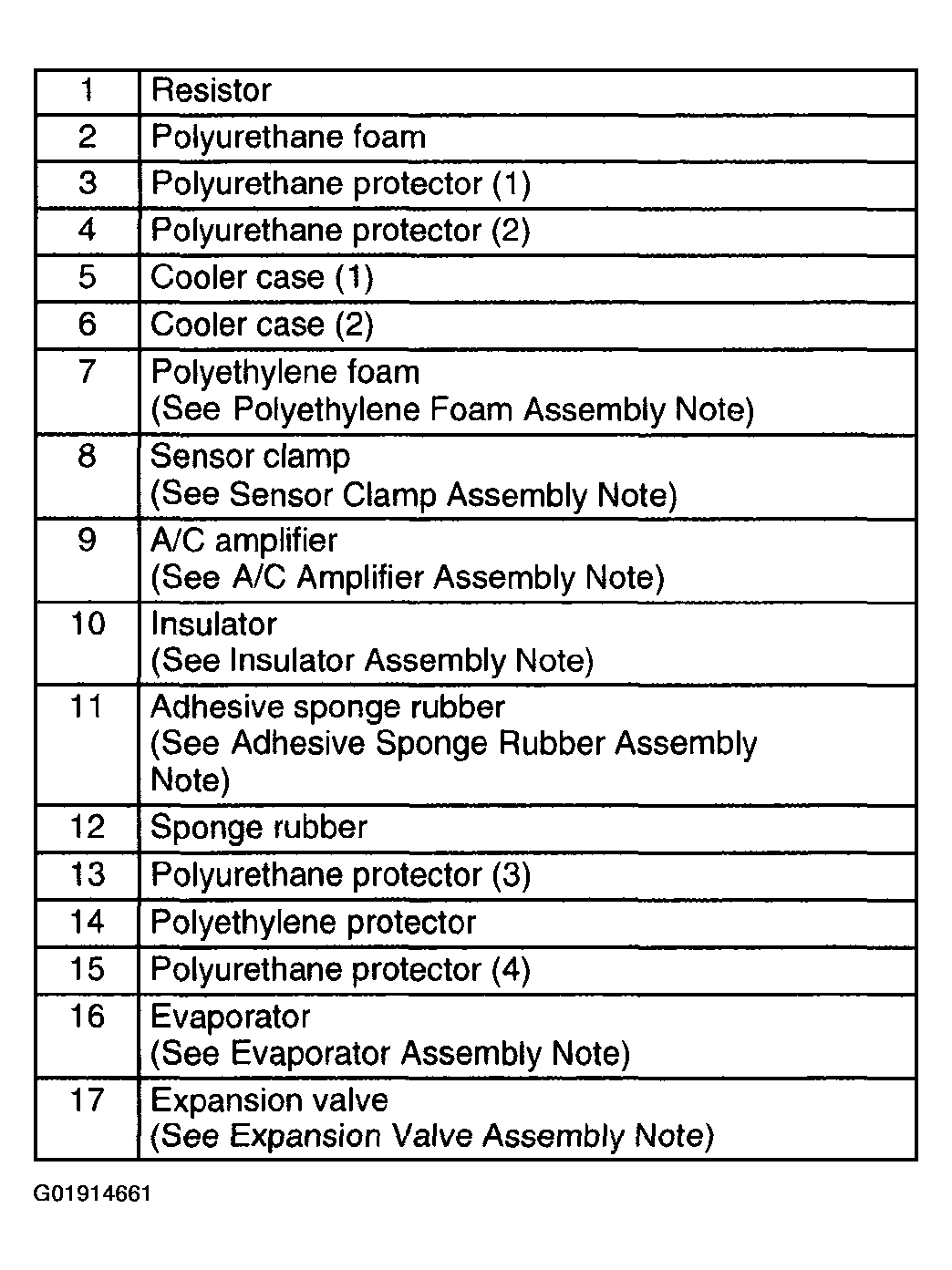

Fig 1: Cooling Unit Components Description Chart
Courtesy of MAZDA MOTORS CORP.

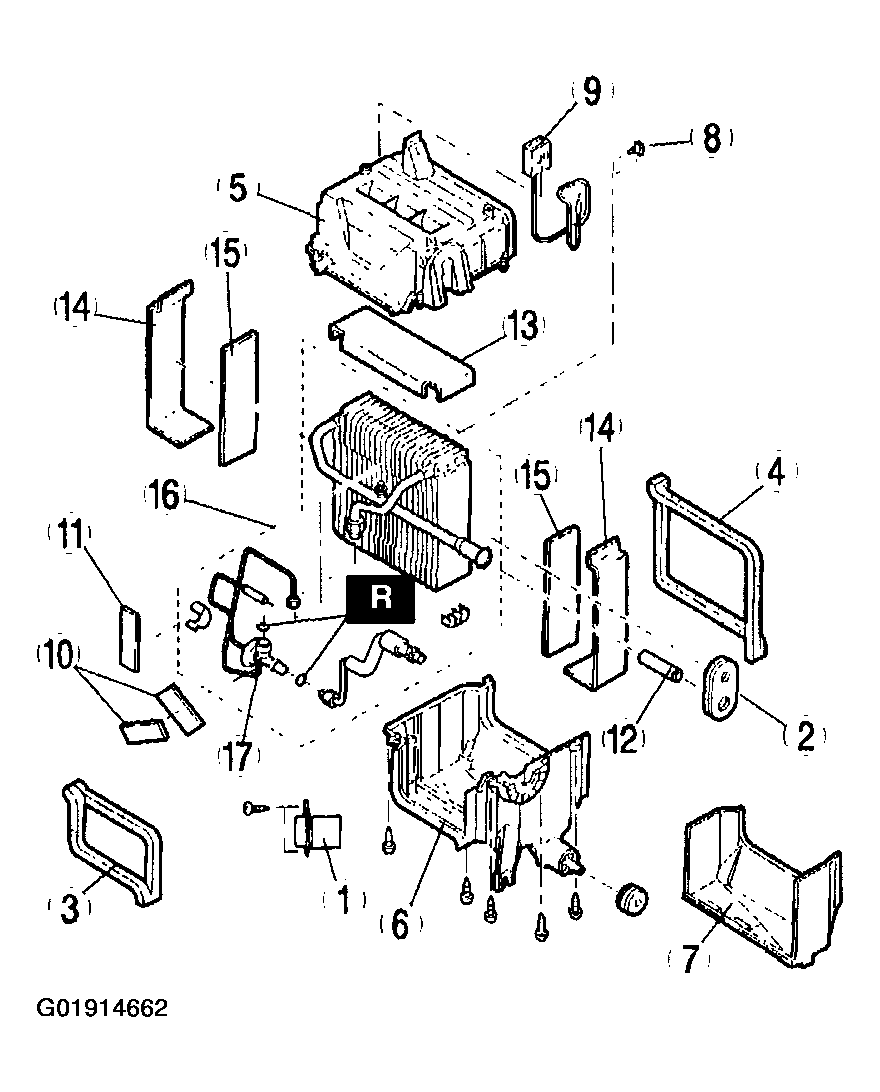

Fig 2: Exploded View Of Cooling Unit Components
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
