Cooling Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
Remove the passenger-side lower panel.
Remove the glove compartment and glove compartment cover.
CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
Disconnect cooler pipe No. 3 and cooler hose (LO). (See REFRIGERANT LINES REMOVAL NOTE .) (See REFRIGERANT LINES INSTALLATION NOTE .)

Fig 1: Disconnecting Cooler Pipe No. 3 And Cooler Hose
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figure. Do not allow compressor oil to spill.

Fig 2: Cooling Unit Component Removal Chart
Courtesy of MAZDA MOTORS CORP.

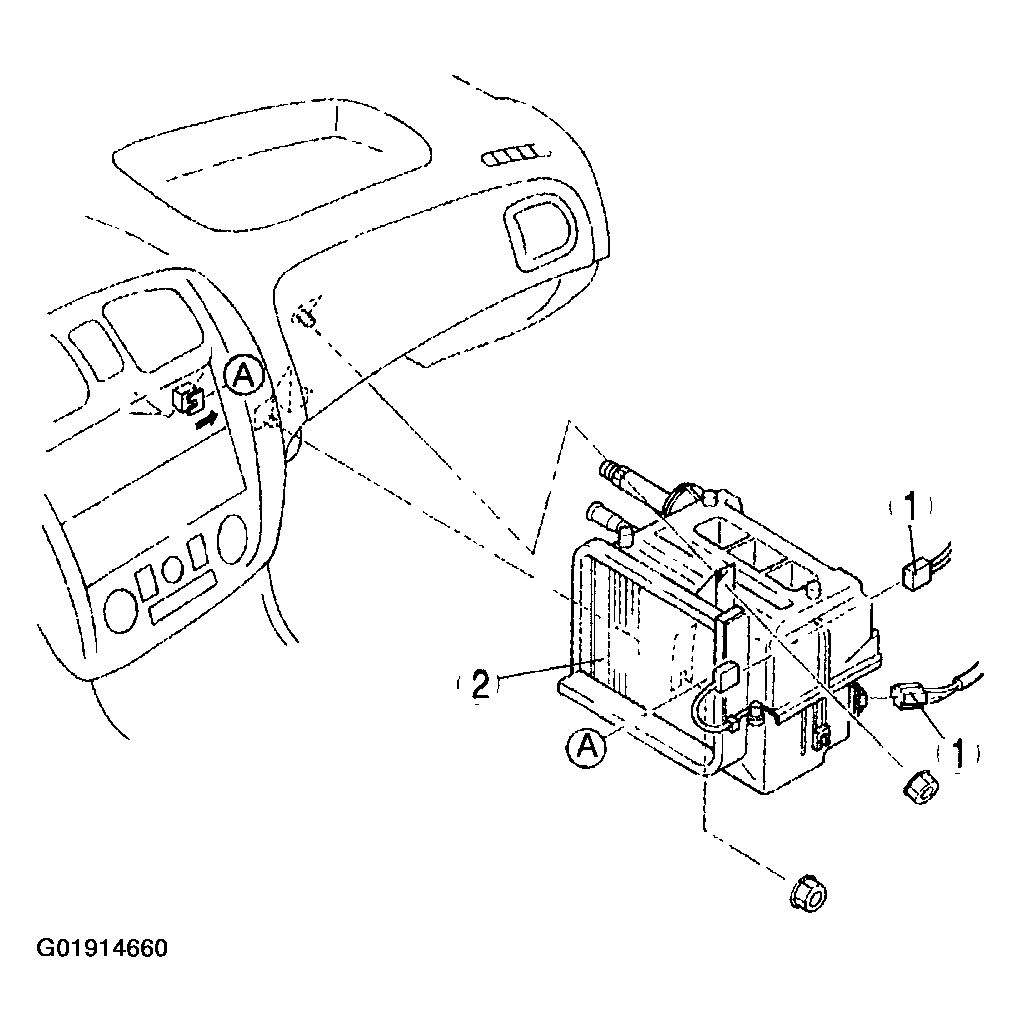

Fig 3: Removing Cooling Unit Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform the refrigerant system performance test. (See REFRIGERANT PRESSURE CHECK .)
