WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
Disassemble in the order indicated in the figure.

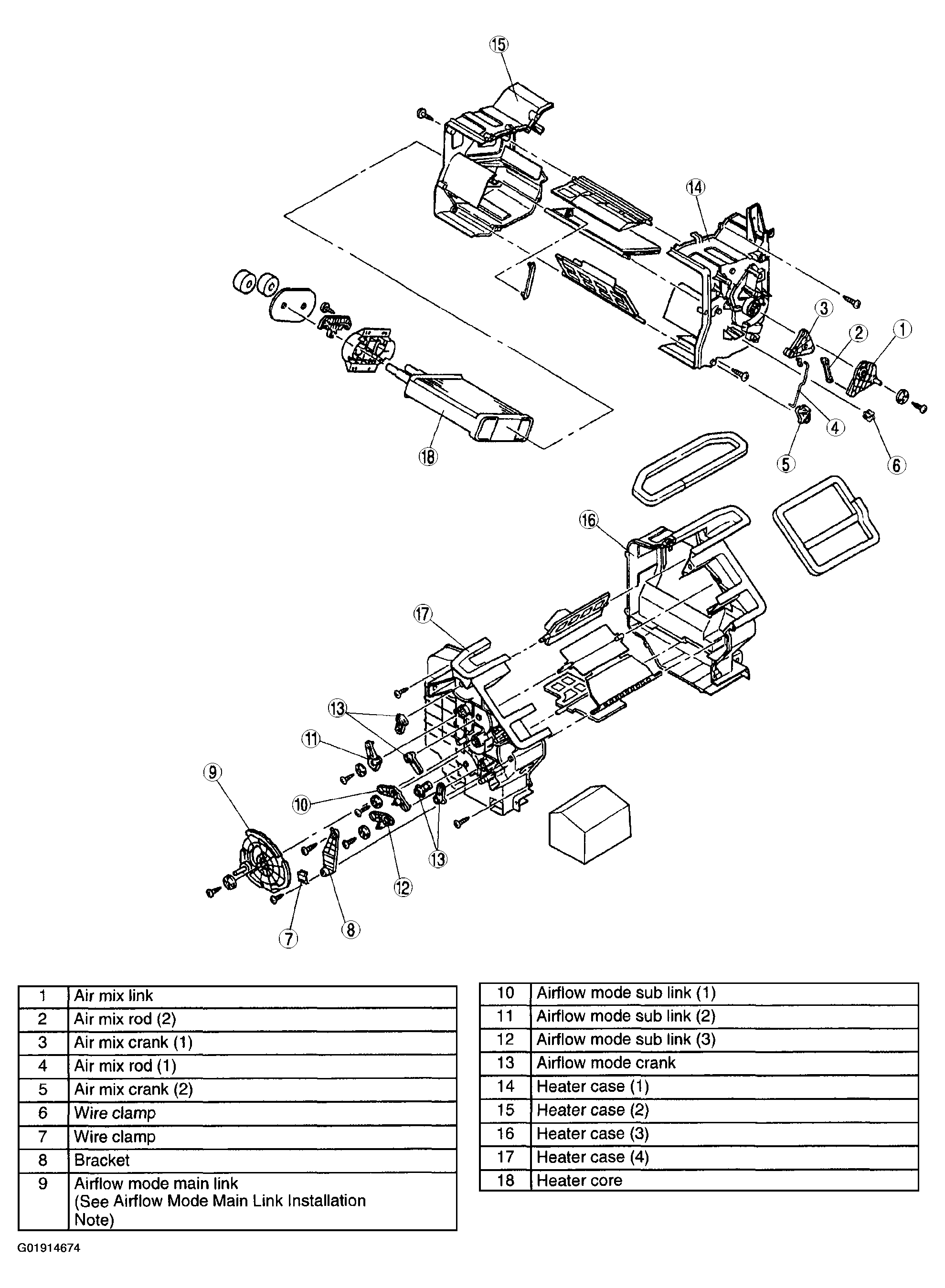

Fig 1: Exploded View Of Heater Unit Components And Components Removal Chart
