Front Side Marker Light Removal/Installation: 4SD

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the figure(s).

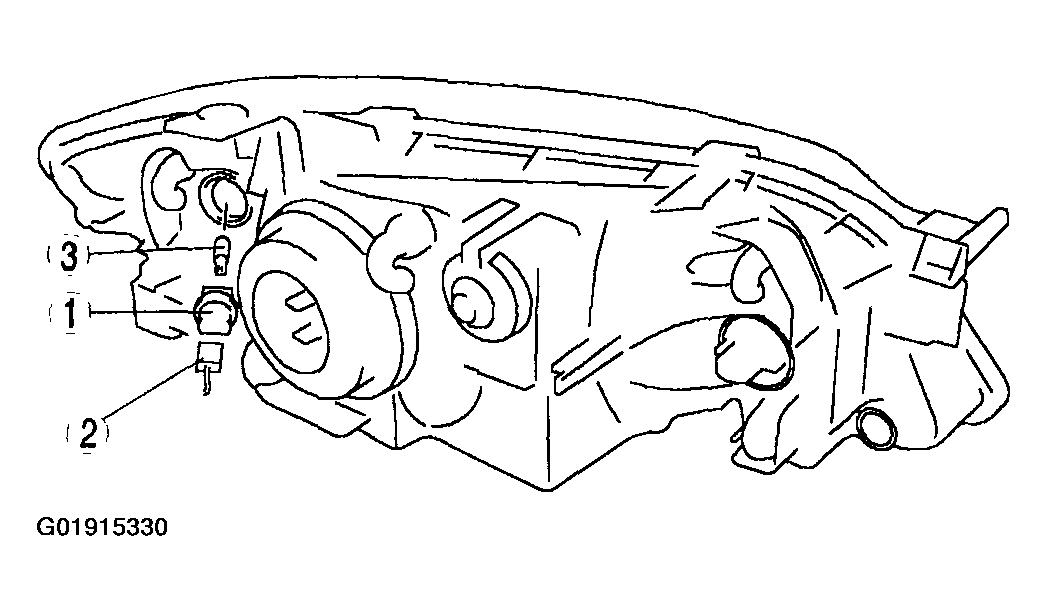

Fig 1: Removing Front Side Marker Light (4SD)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Side Marker Light Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
