Checking Fluid Level: Transaxle

Make sure the vehicle is on level ground and apply the parking brake. If necessary, disconnect the Vehicle Speed Sensor (VSS) harness connector. See Fig 1 . If necessary, remove the VSS bolt and the VSS. See Fig 2 . Check VSS for the full level as shown. See Fig 3 . Install the VSS and the bolt. Tighten VSS bolt to specification. See TORQUE SPECIFICATIONS  . Connect the VSS electrical connector.

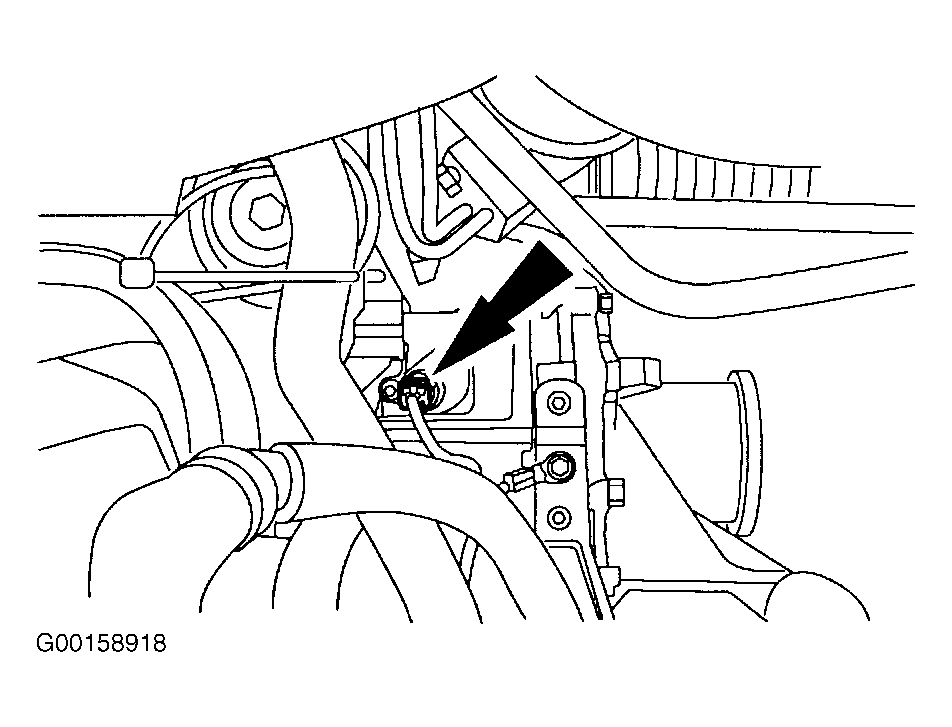

Fig 1: Locating Vehicle Speed Sensor Harness Connector

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Vehicle Speed Sensor Retaining Bolt (2WD)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Full Level On Vehicle Speed Sensor

Courtesy of MAZDA MOTORS CORP.
