External Sealing

The CD4E transaxle has the following parts to prevent external fluid leakages:

• Gaskets
• Lip type seals
• O-rings
• Seal rings

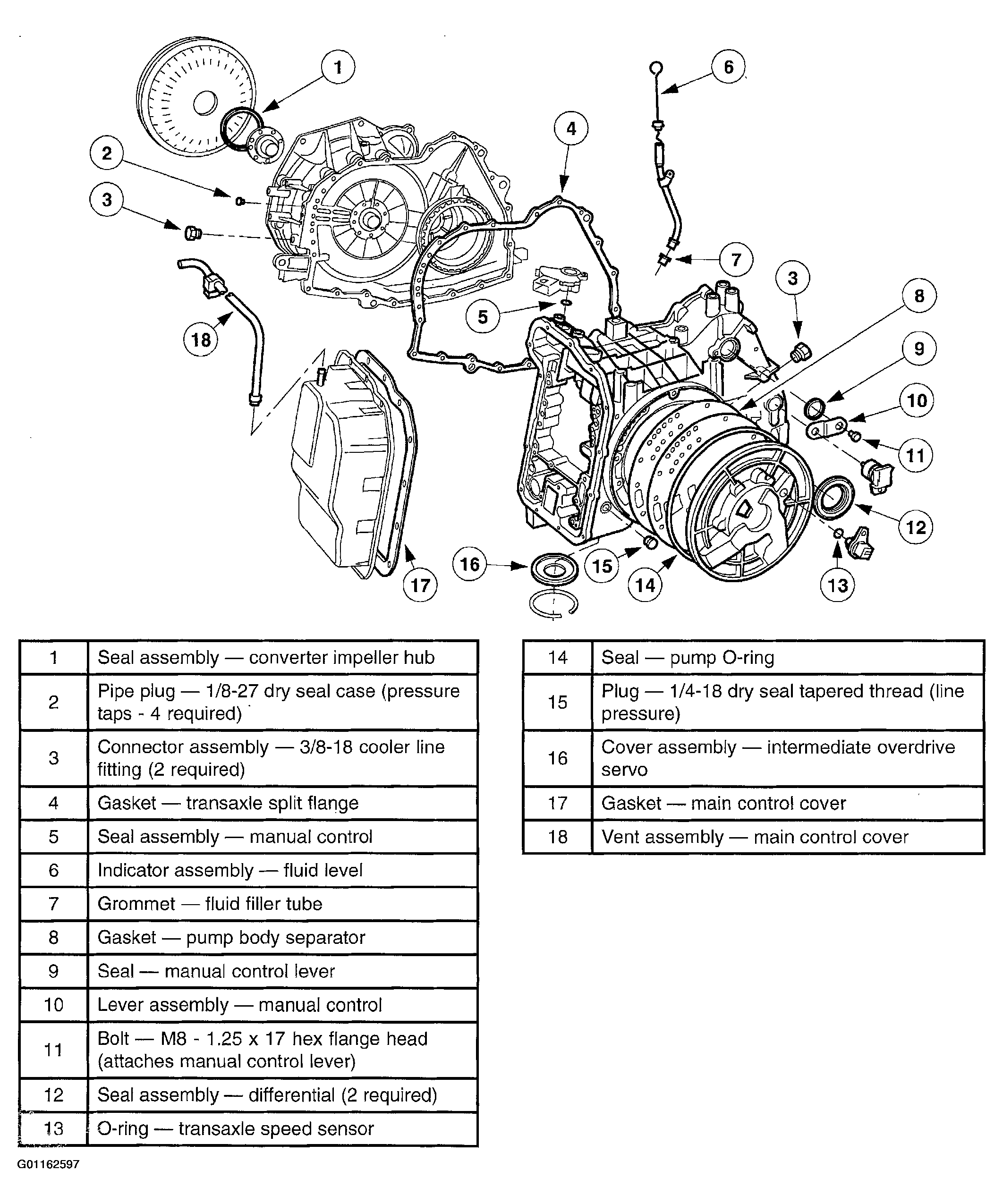

Fig 1: Locating External Seals

Courtesy of MAZDA MOTORS CORP.
