Diagnostic procedure

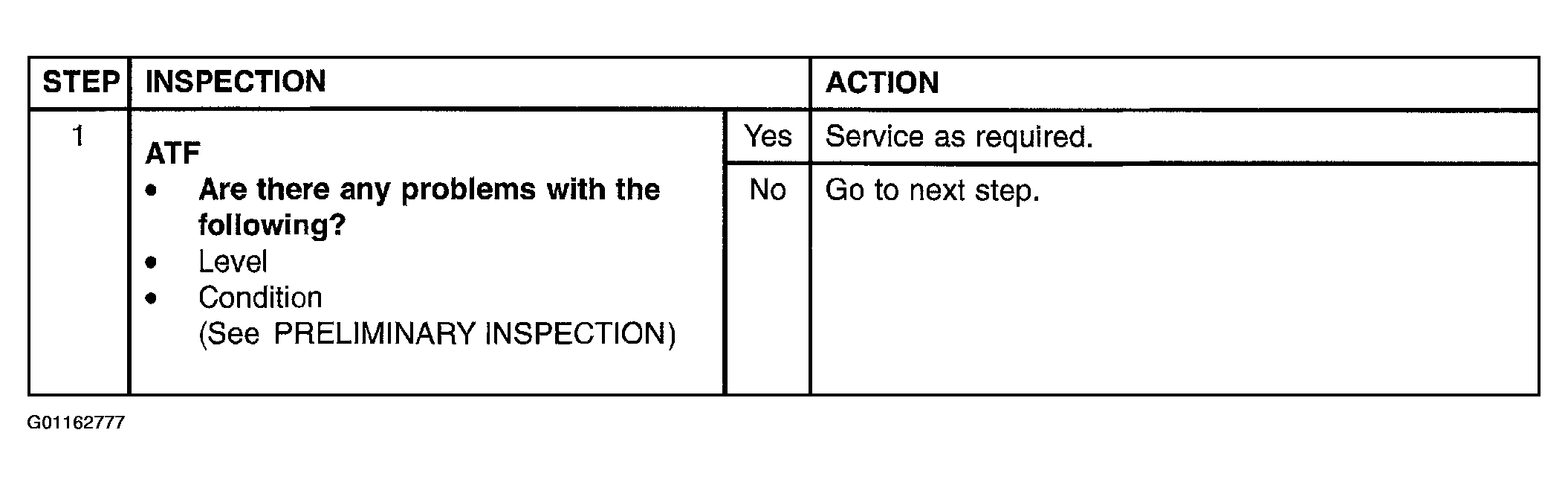

Fig 1: Pinpoint Test 32: Transaxle Overheating (Step 1)

Courtesy of MAZDA MOTORS CORP.

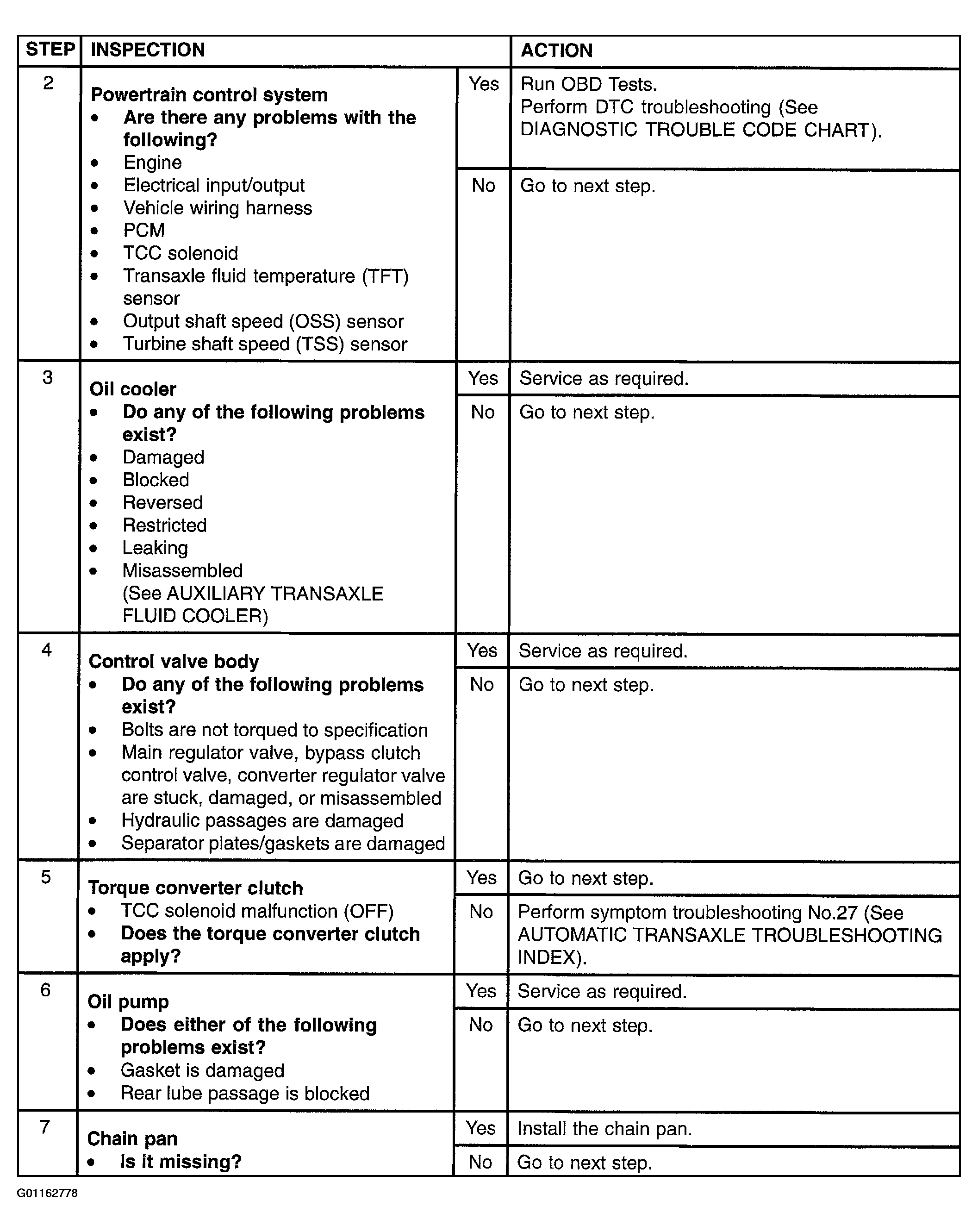

Fig 2: Pinpoint Test 32: Transaxle Overheating (Steps 2-7)

Courtesy of MAZDA MOTORS CORP.

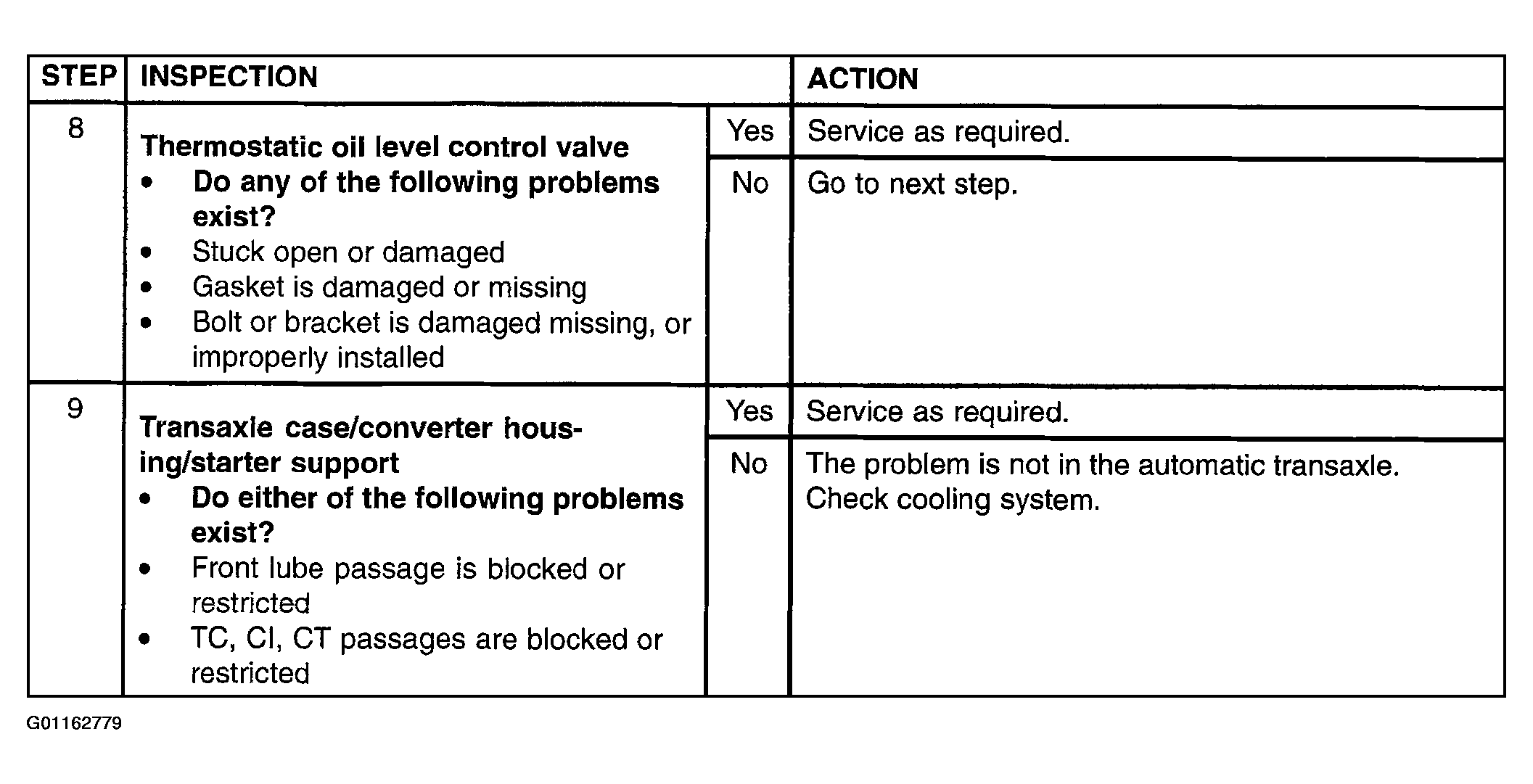

Fig 3: Pinpoint Test 32: Transaxle Overheating (Steps 8-9)

Courtesy of MAZDA MOTORS CORP.
