Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module

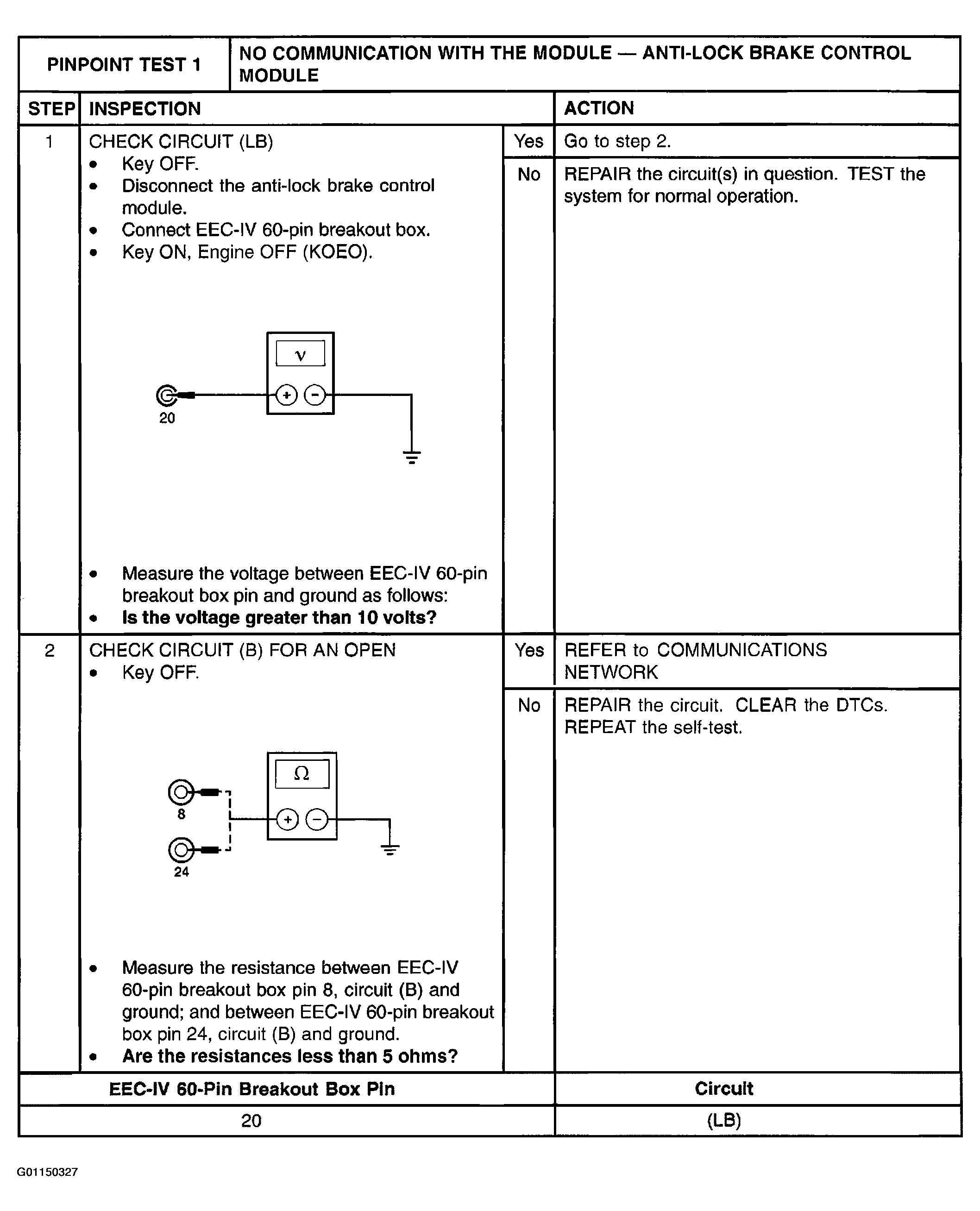

Fig 1: Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module

Courtesy of MAZDA MOTORS CORP.
