Troubleshooting Index - Instrument Cluster: Notes

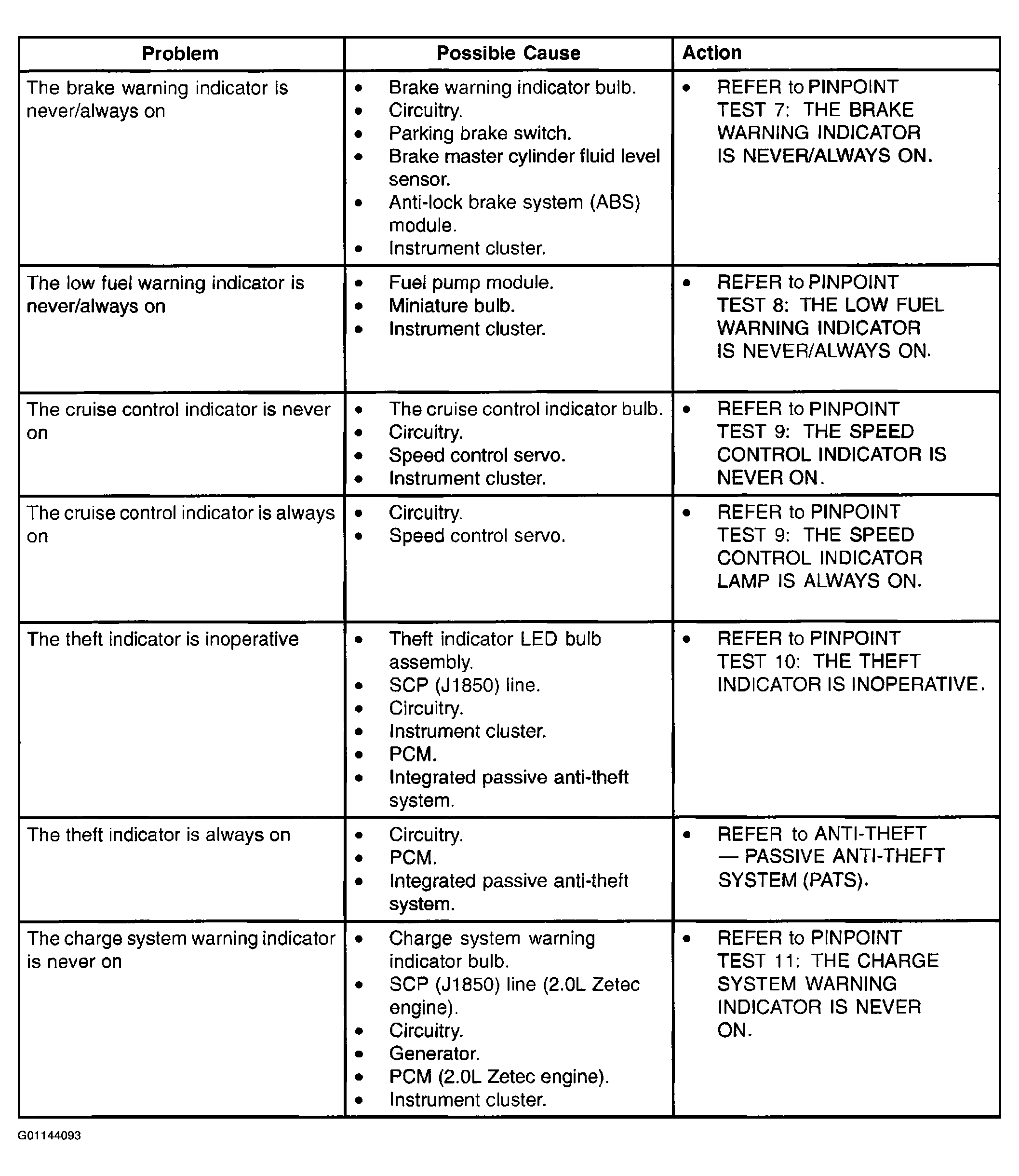

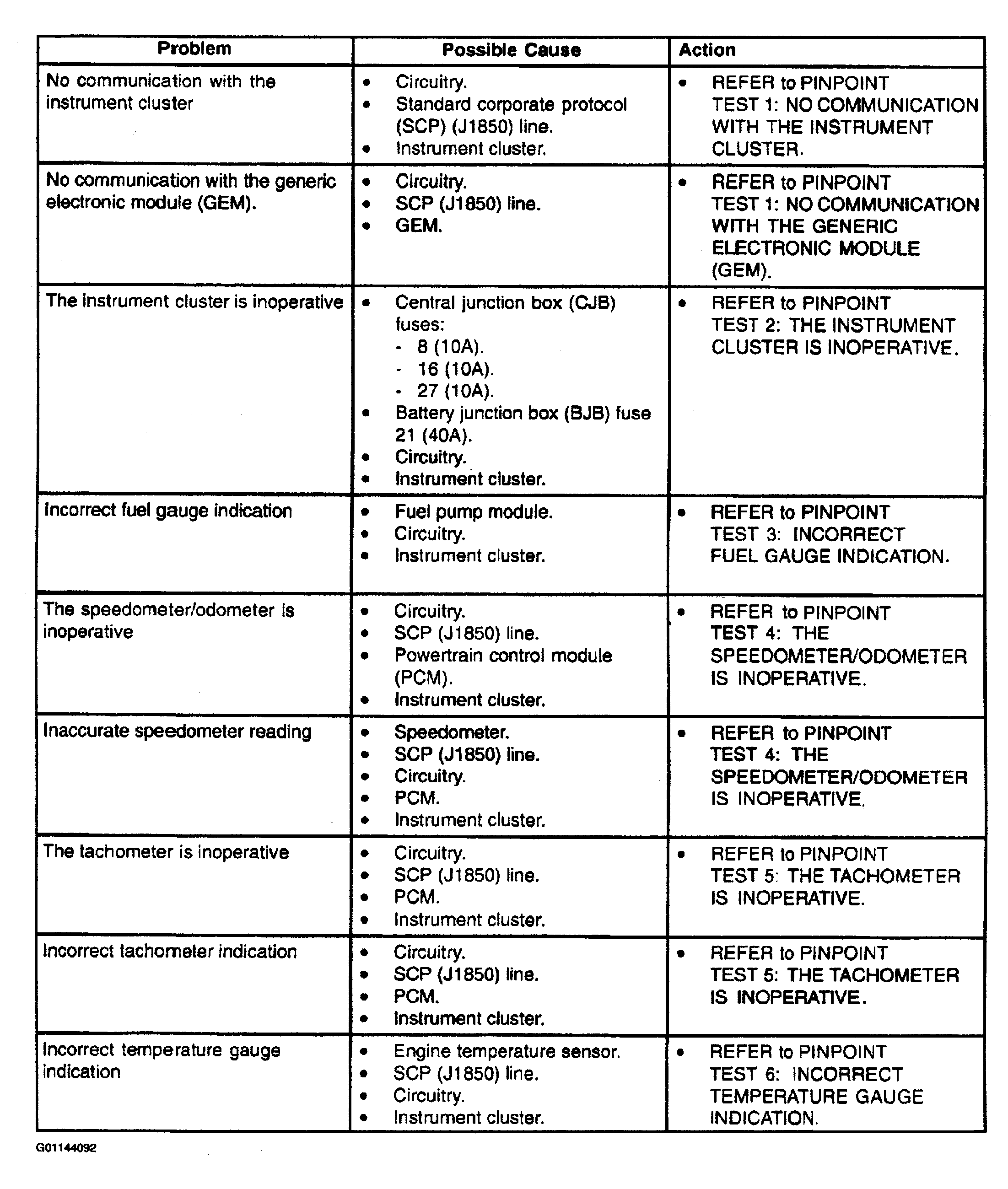

Fig 1: Troubleshooting Index - Instrument Cluster (1 Of 5)

Courtesy of MAZDA MOTORS CORP.

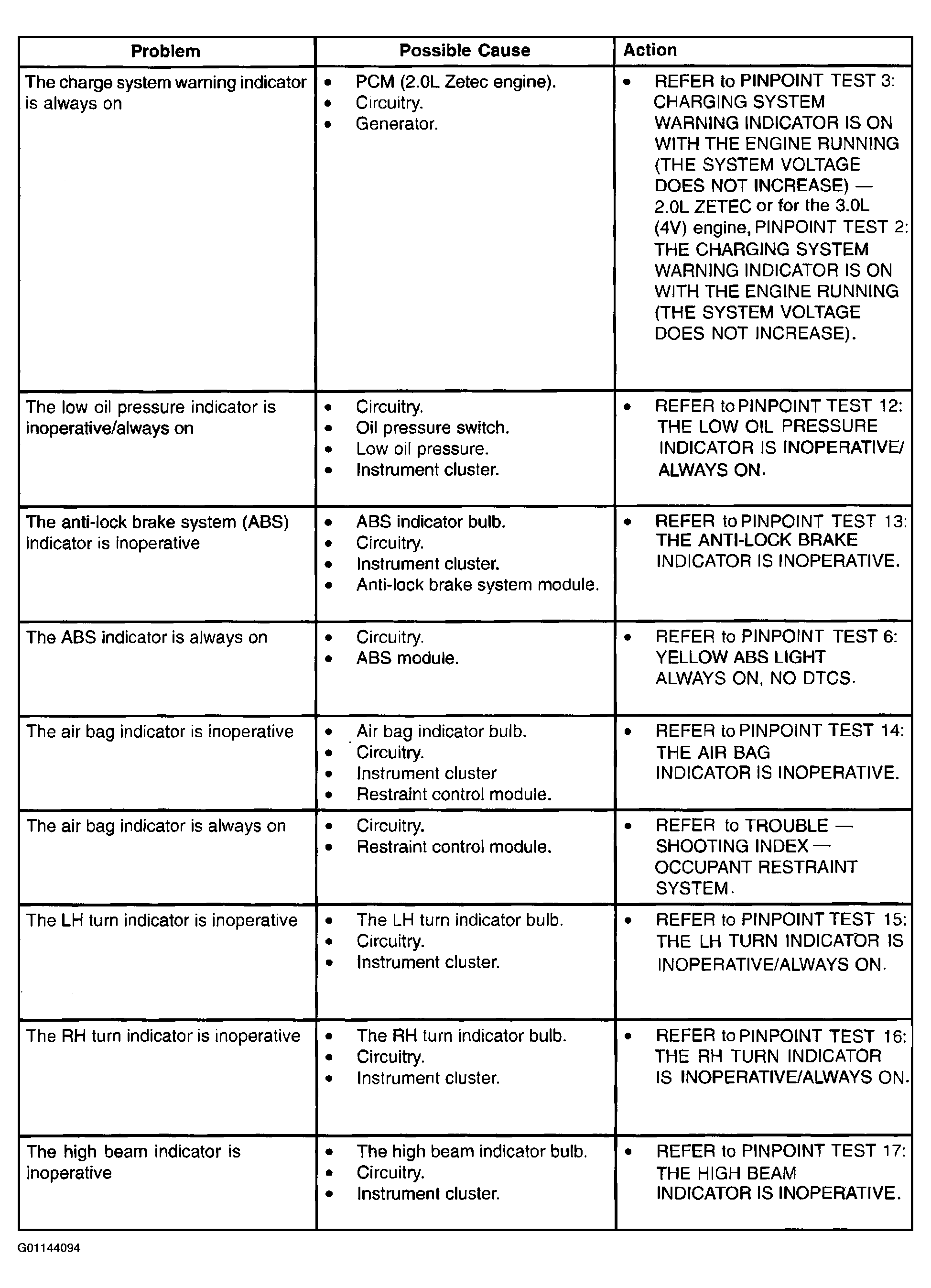

Fig 2: Troubleshooting Index - Instrument Cluster (2 Of 5)

Courtesy of MAZDA MOTORS CORP.

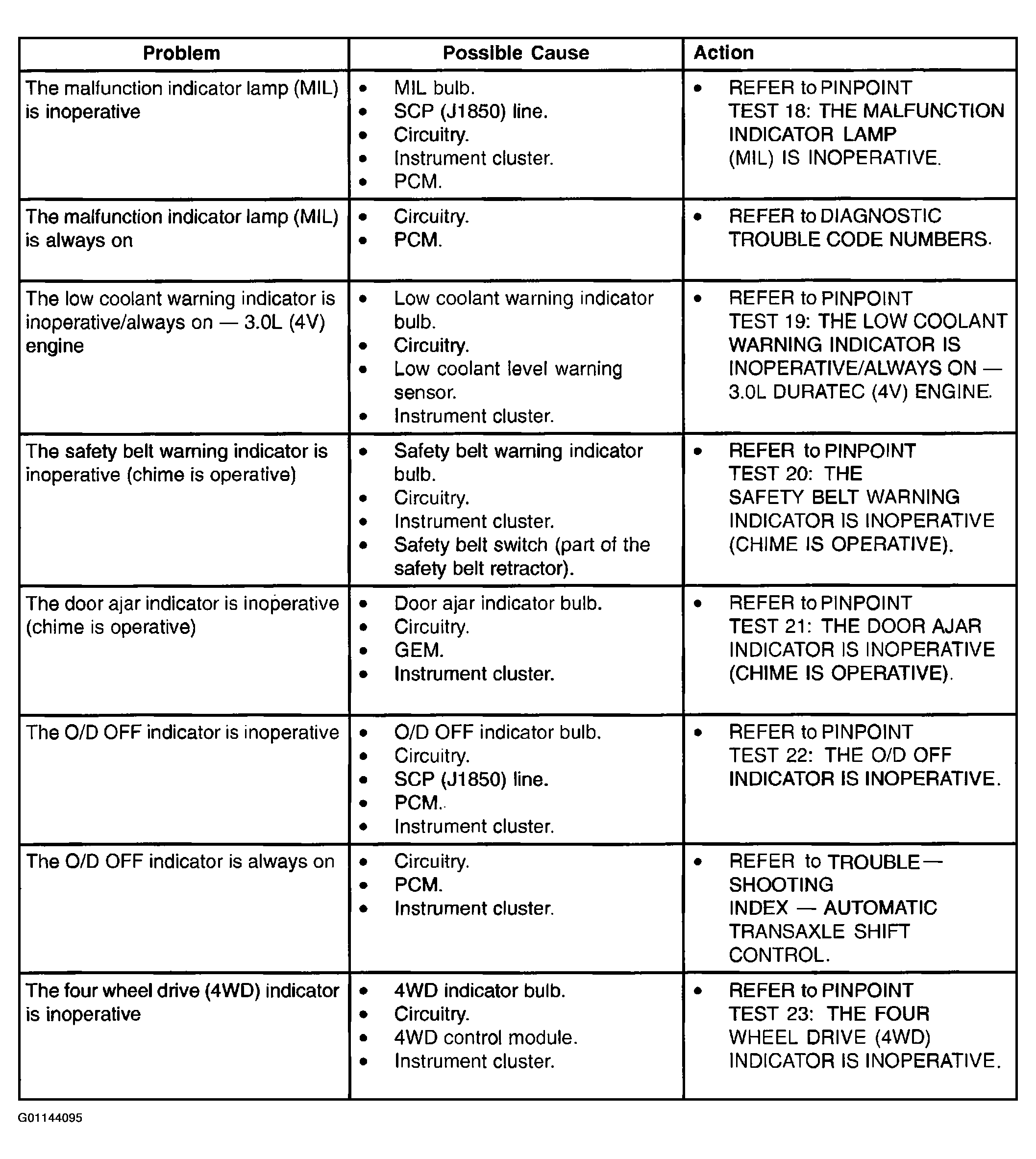

Fig 3: Troubleshooting Index - Instrument Cluster (3 Of 5)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Troubleshooting Index - Instrument Cluster (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

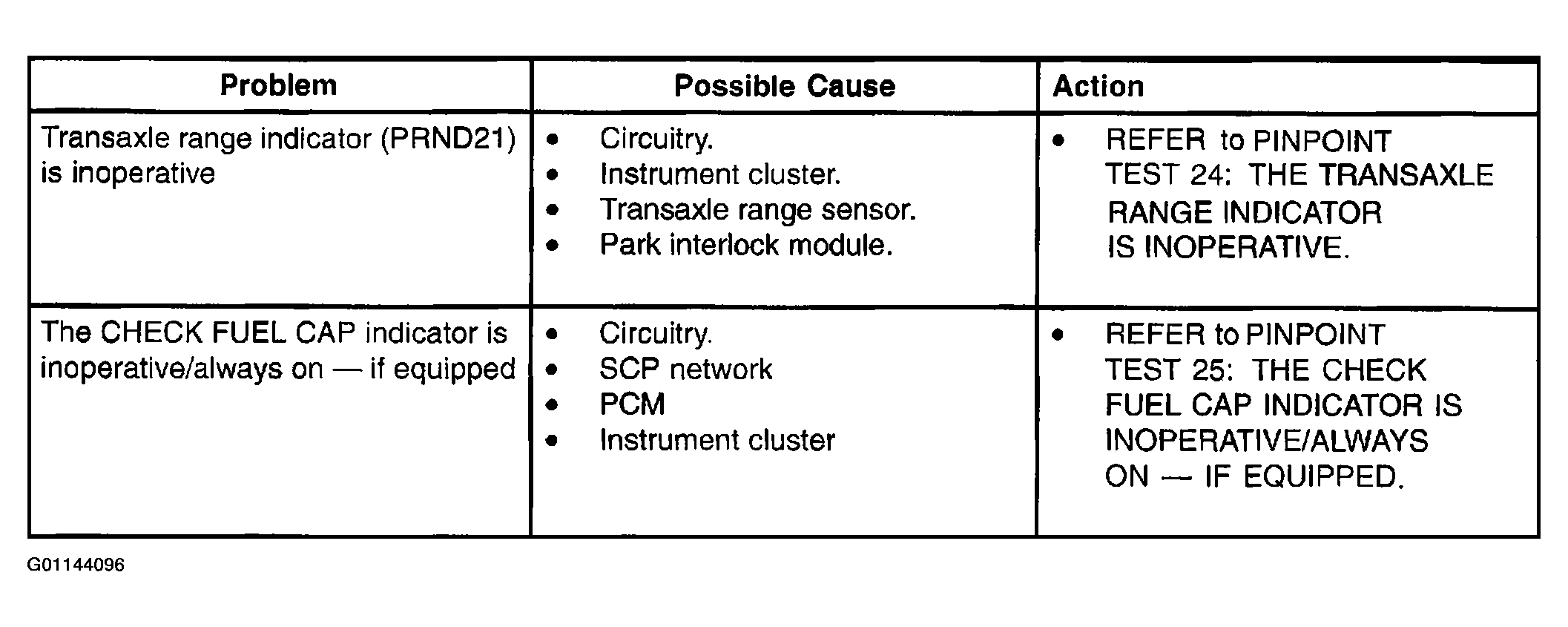

Fig 5: Troubleshooting Index - Instrument Cluster (5 Of 5)

Courtesy of MAZDA MOTORS CORP.
