Troubleshooting Index - Steering

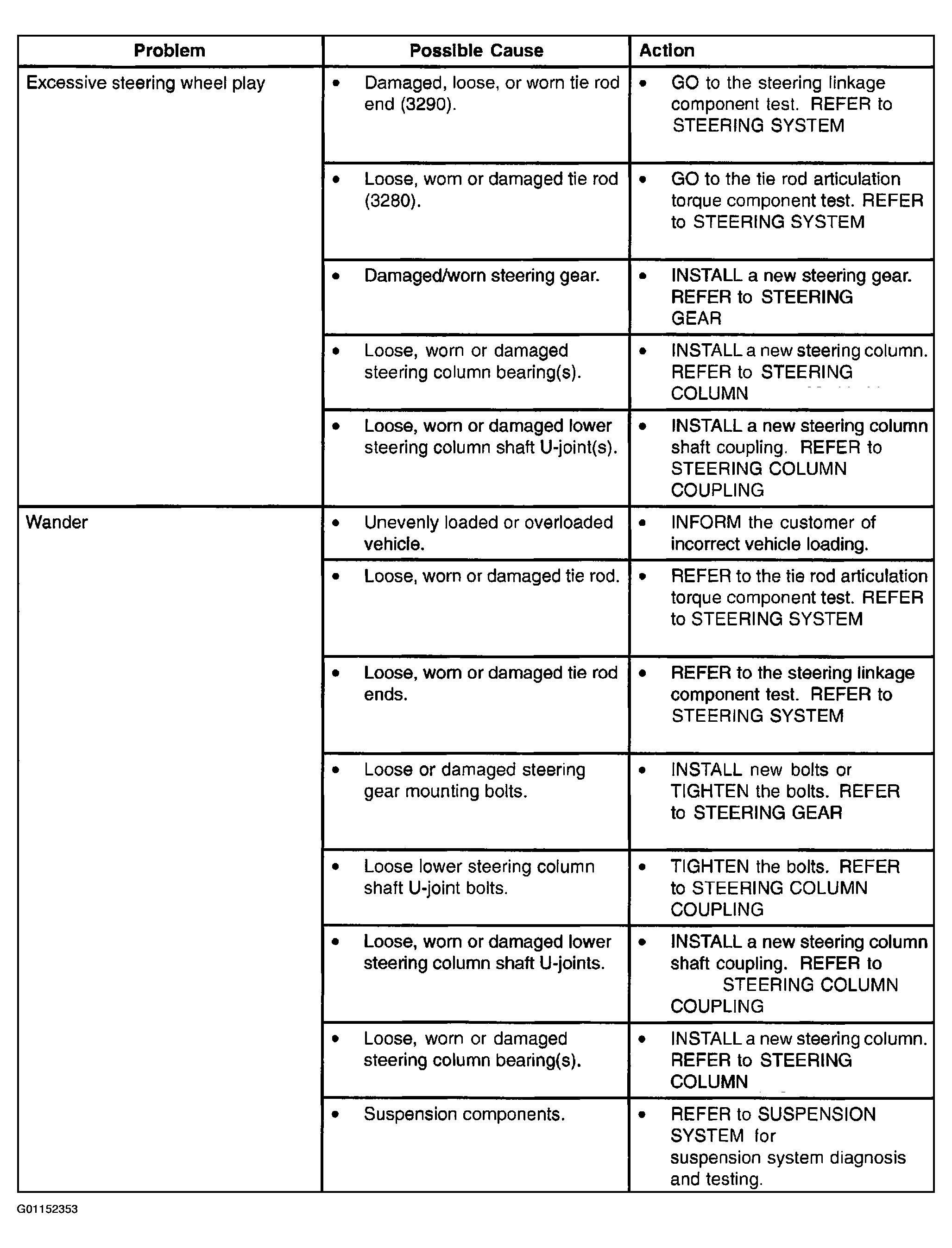

Fig 1: Troubleshooting Index - Steering (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

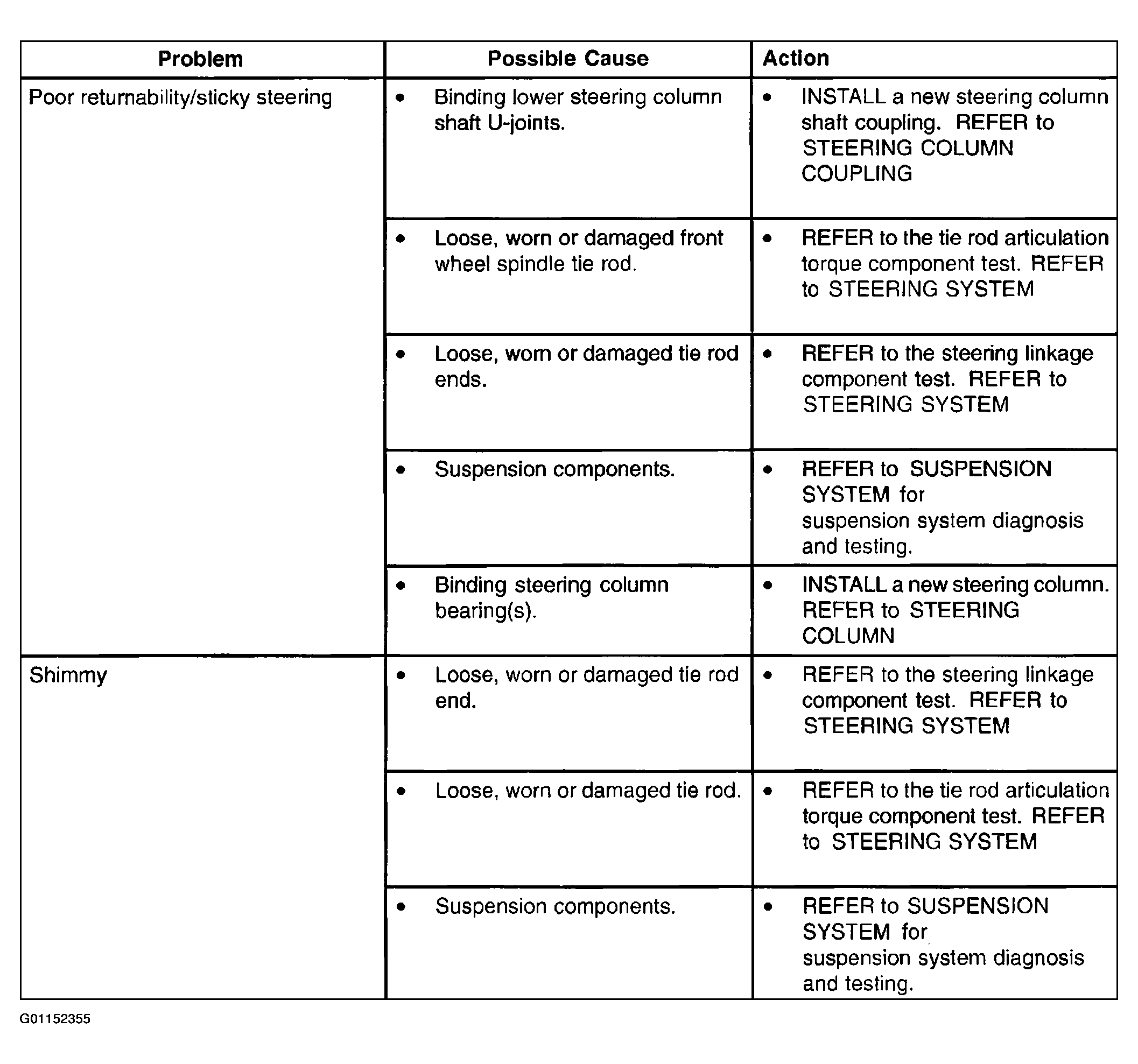

Fig 2: Troubleshooting Index - Steering (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

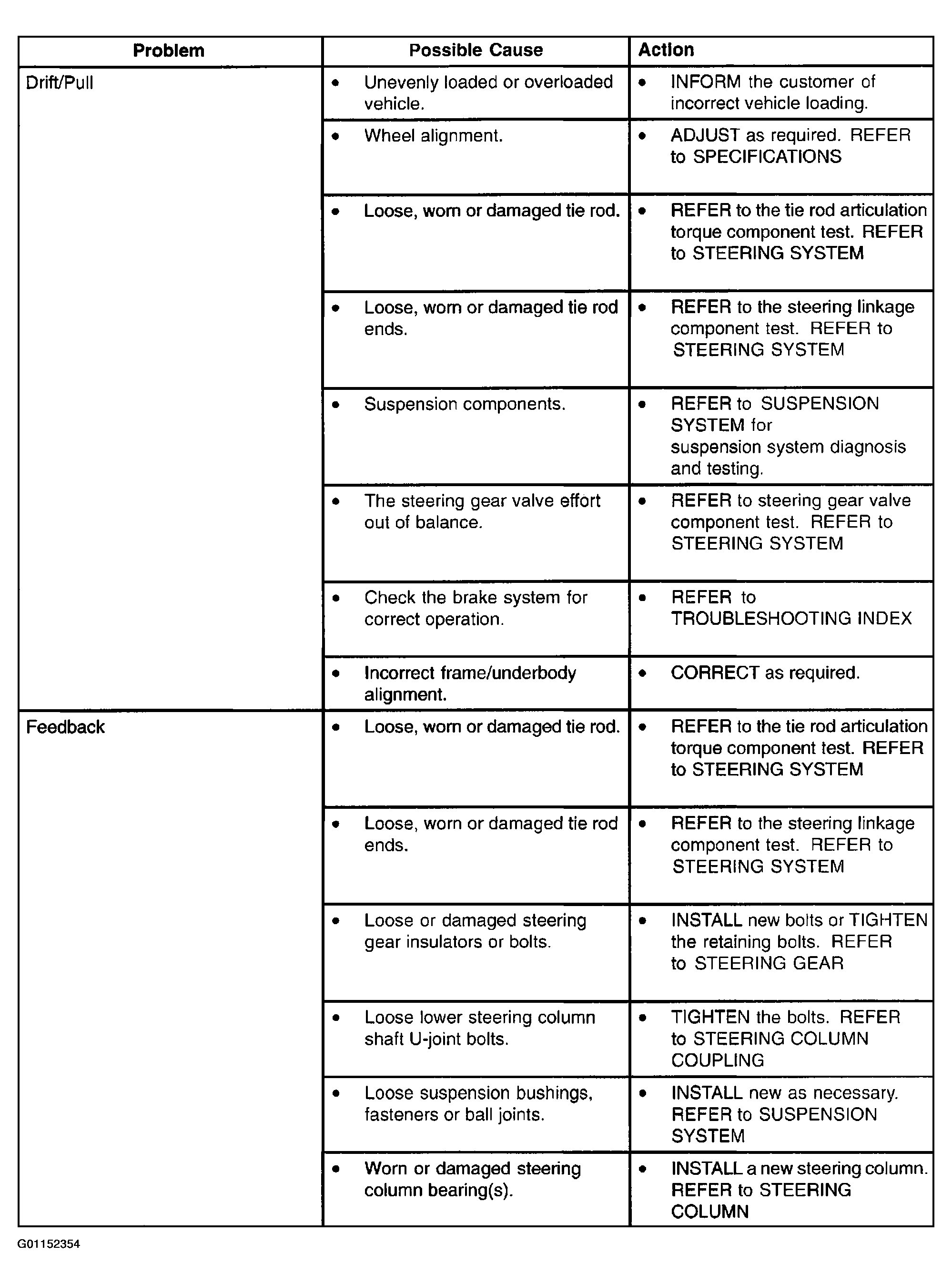

Fig 3: Troubleshooting Index - Steering (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

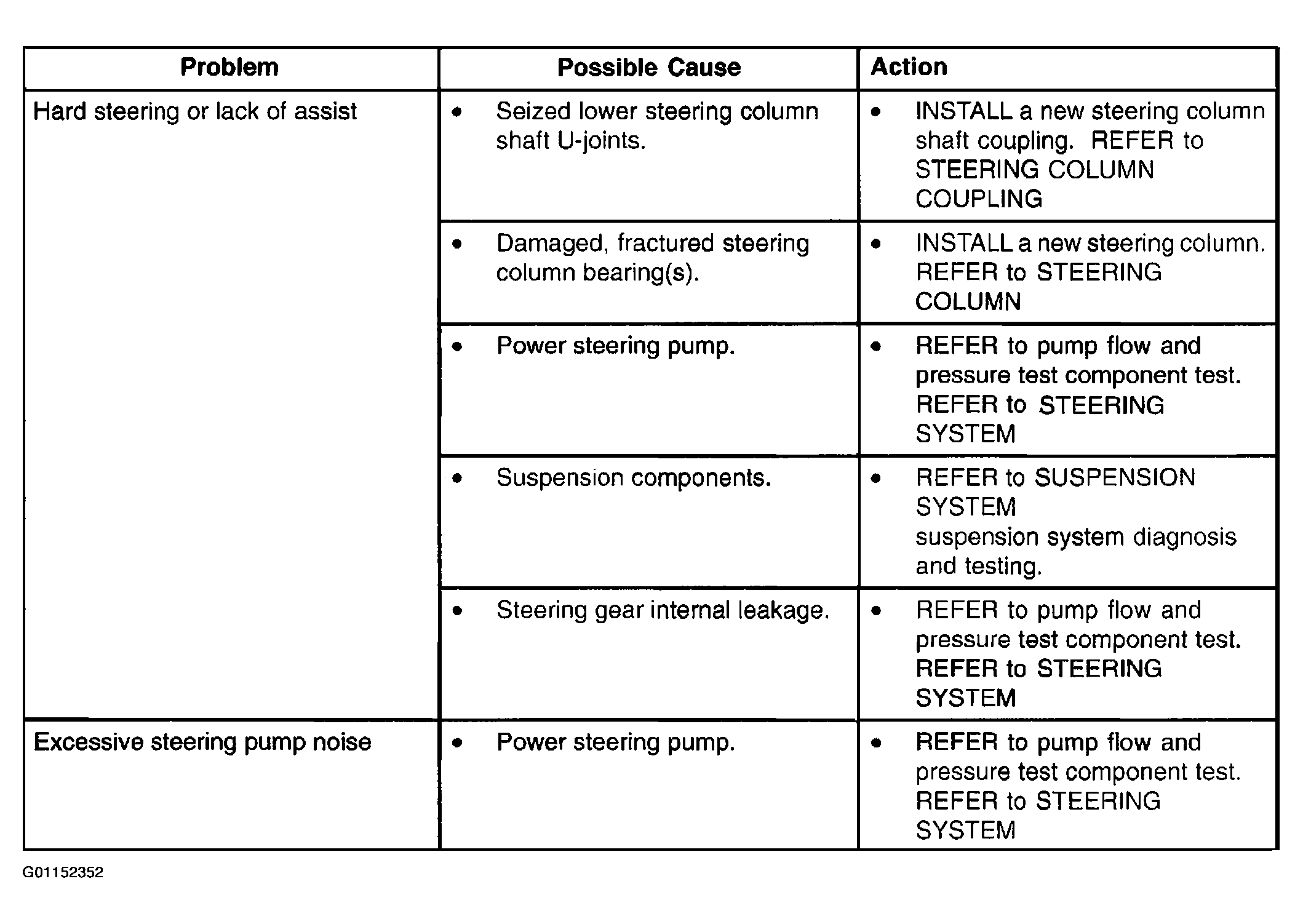

Fig 4: Troubleshooting Index - Steering (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
