Assembly Note

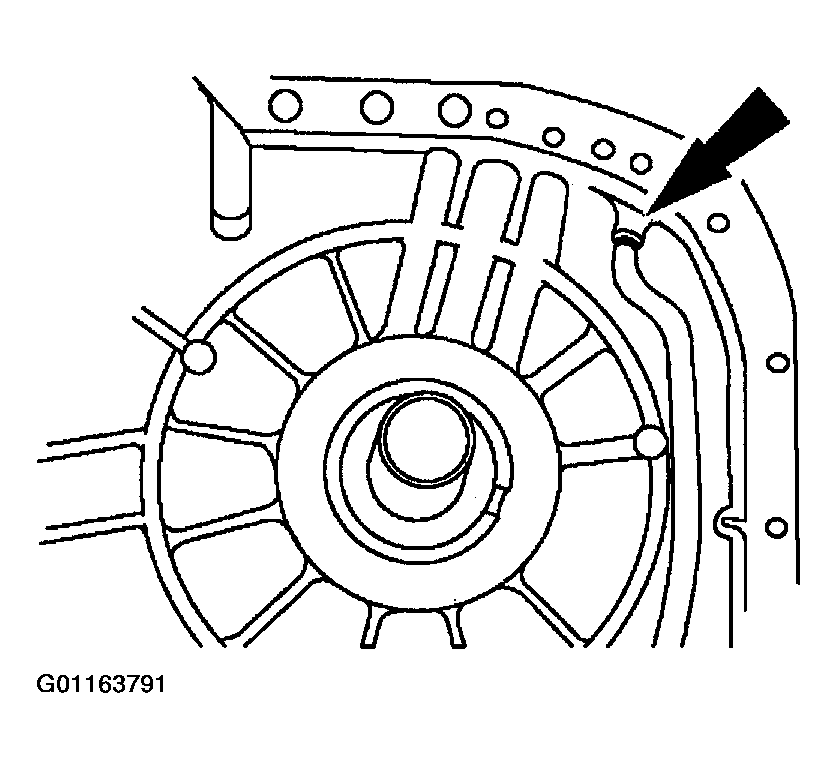

Position a new differential lube tube in the torque converter housing. See Figure .

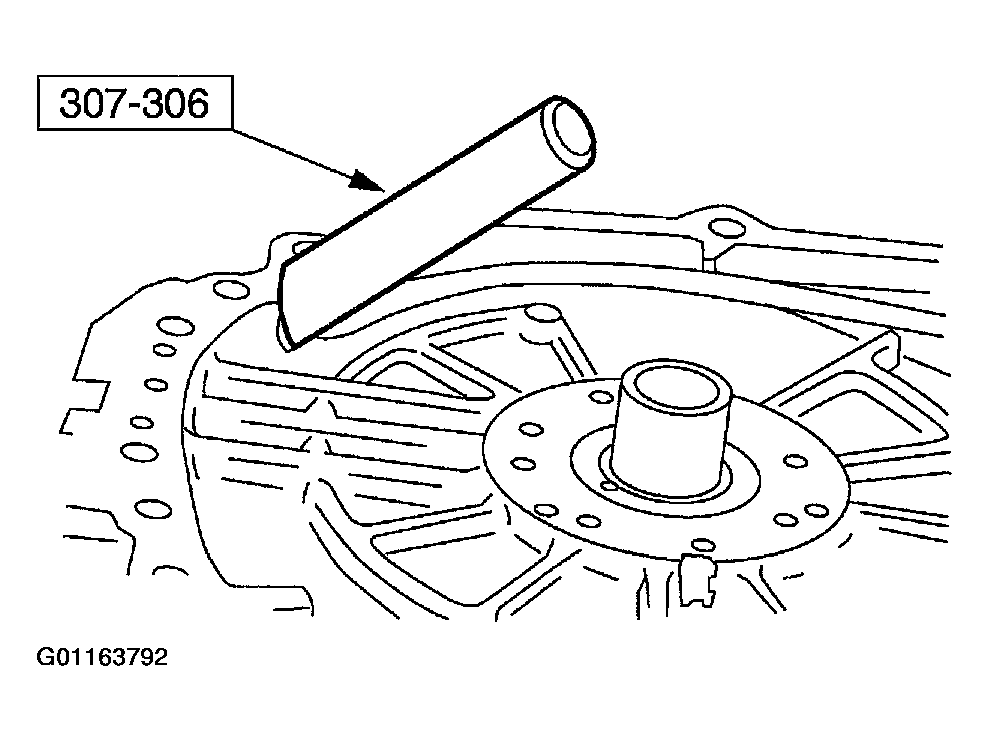

Fig 1: Installing Differential Lube Tube
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the differential lube tube.

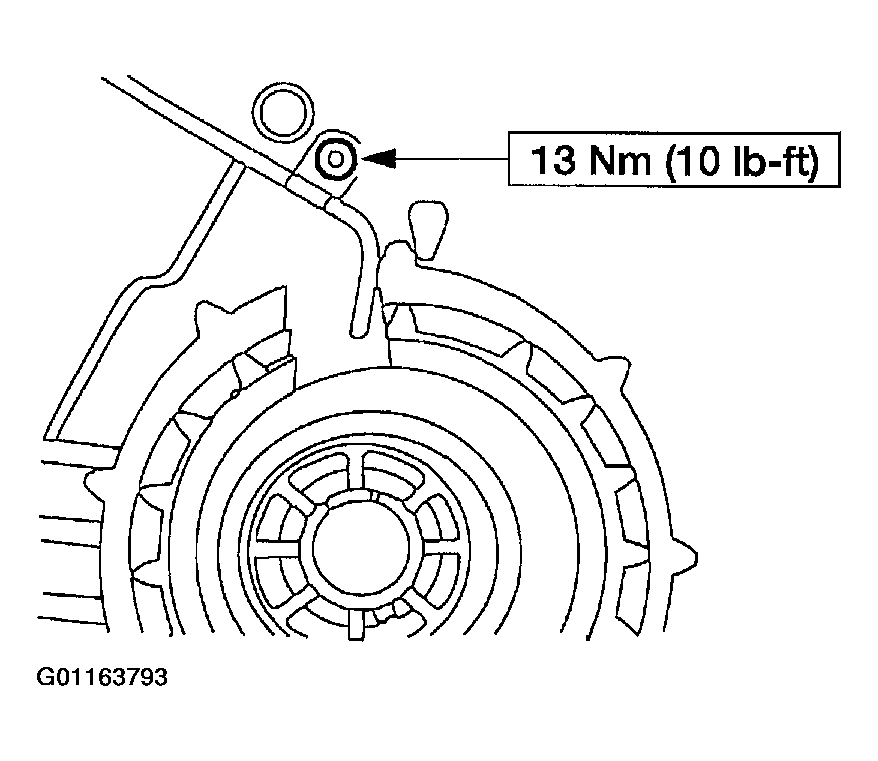

Fig 2: Installing Differential Lube Tube Bolt
Courtesy of MAZDA MOTORS CORP.
Install the differential lube tube bolt.

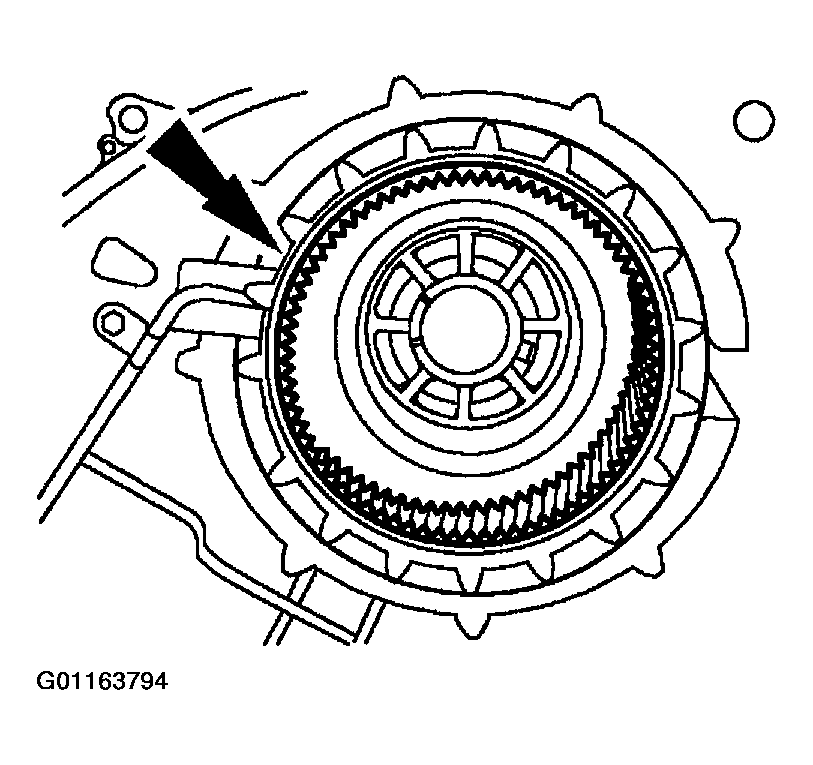

Fig 3: Installing Final Drive Ring Gear
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The final drive ring gear is installed with the lug end uppermost.
Install the final drive ring gear.

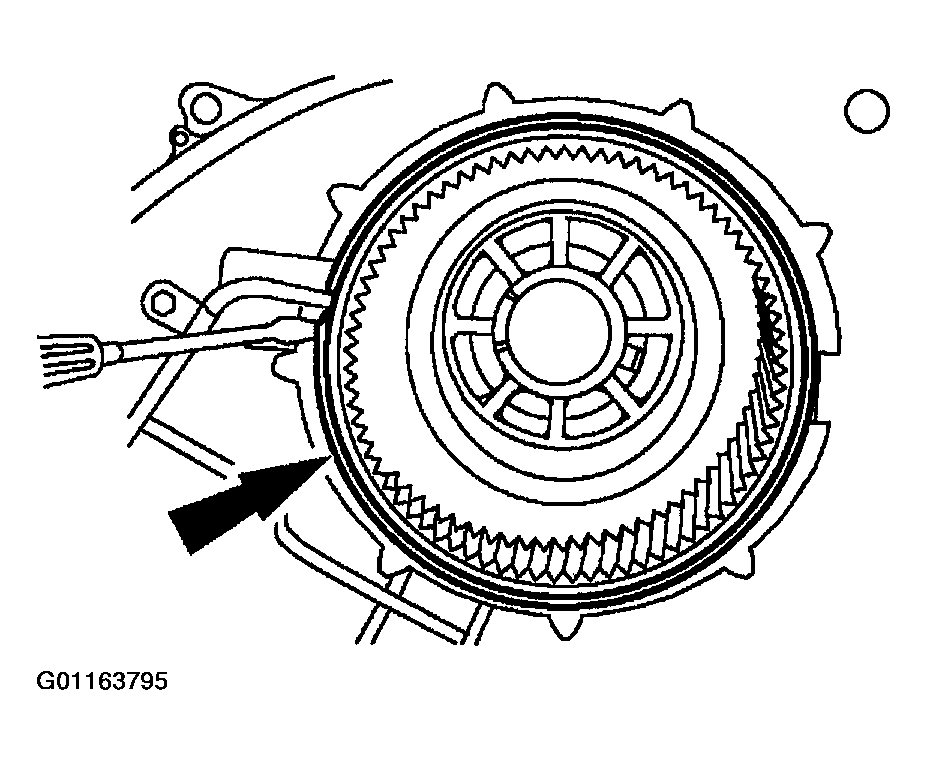

Fig 4: Installing Final Drive Ring Gear Retaining Ring
Courtesy of MAZDA MOTORS CORP.
Install the final drive ring gear retaining ring.

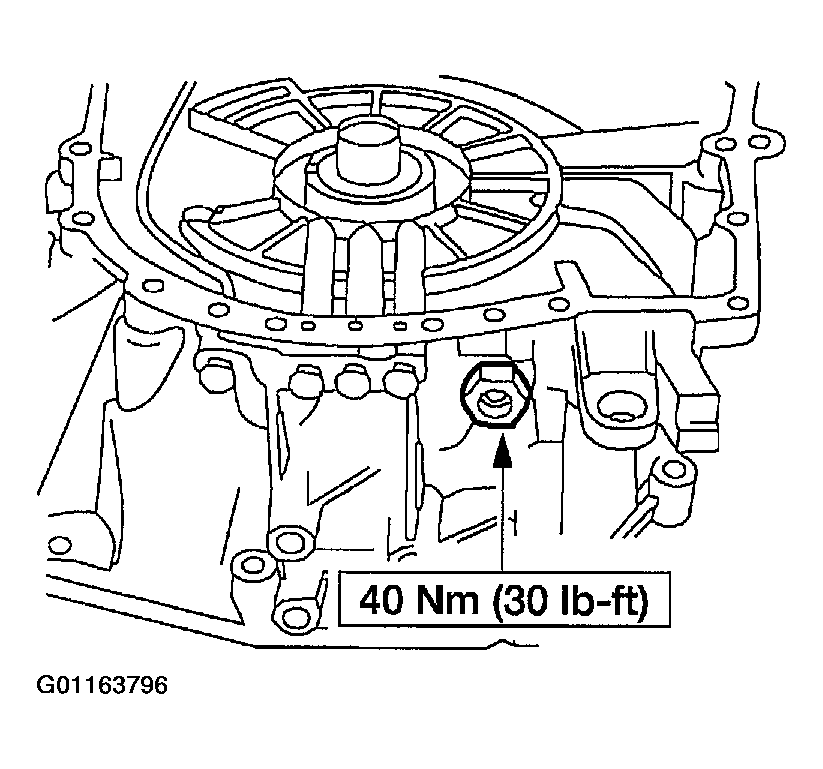

Fig 5: Installing Cooler Tube Fitting
Courtesy of MAZDA MOTORS CORP.
Install the cooler tube fitting.
