Troubleshooting Index - Automatic Transaxle Shift Control: Notes

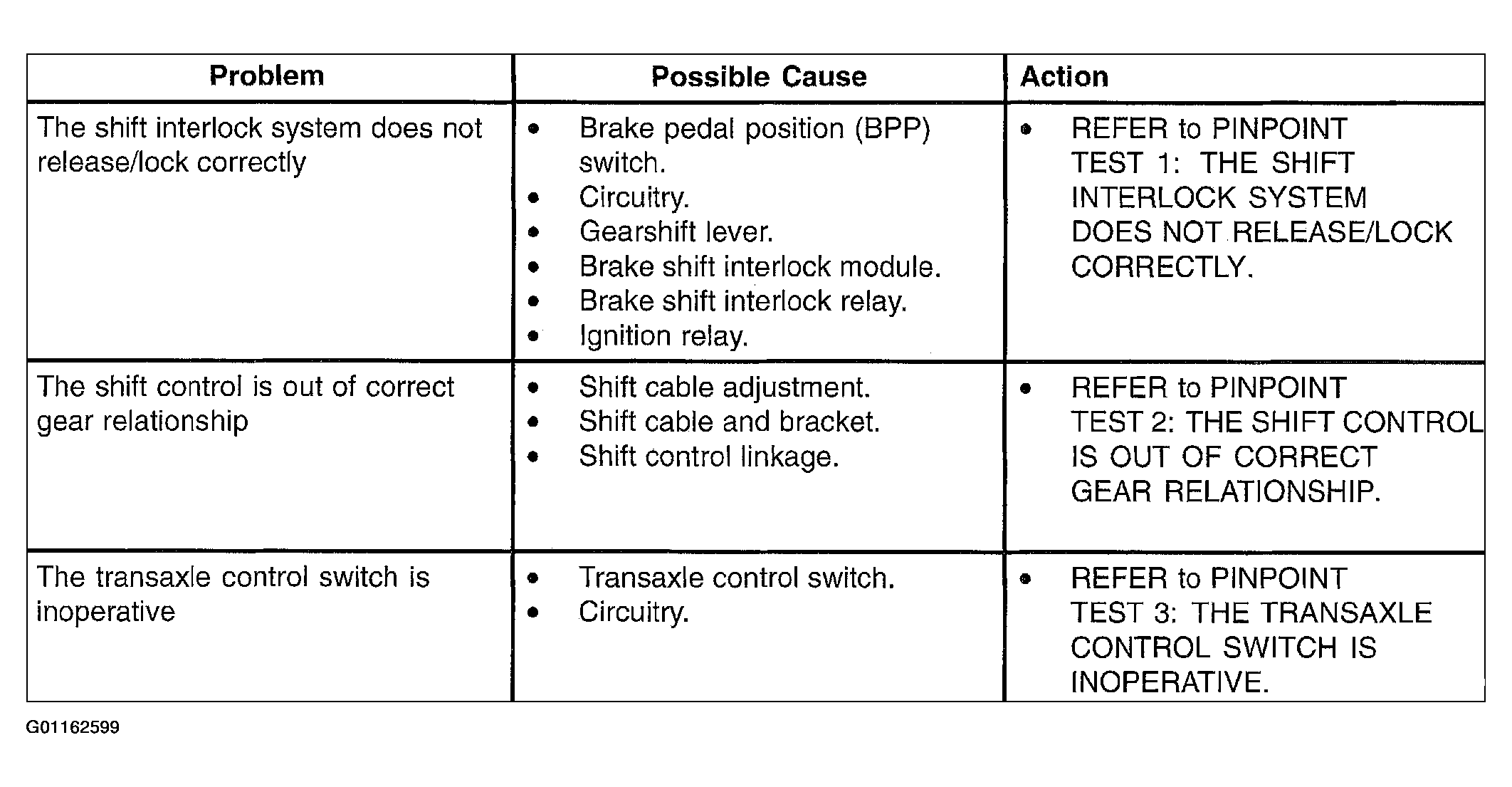

Fig 1: Troubleshooting Index - Automatic Transaxle Shift Control
G01162599Courtesy of MAZDA MOTORS CORP.
