Diagnosis Index

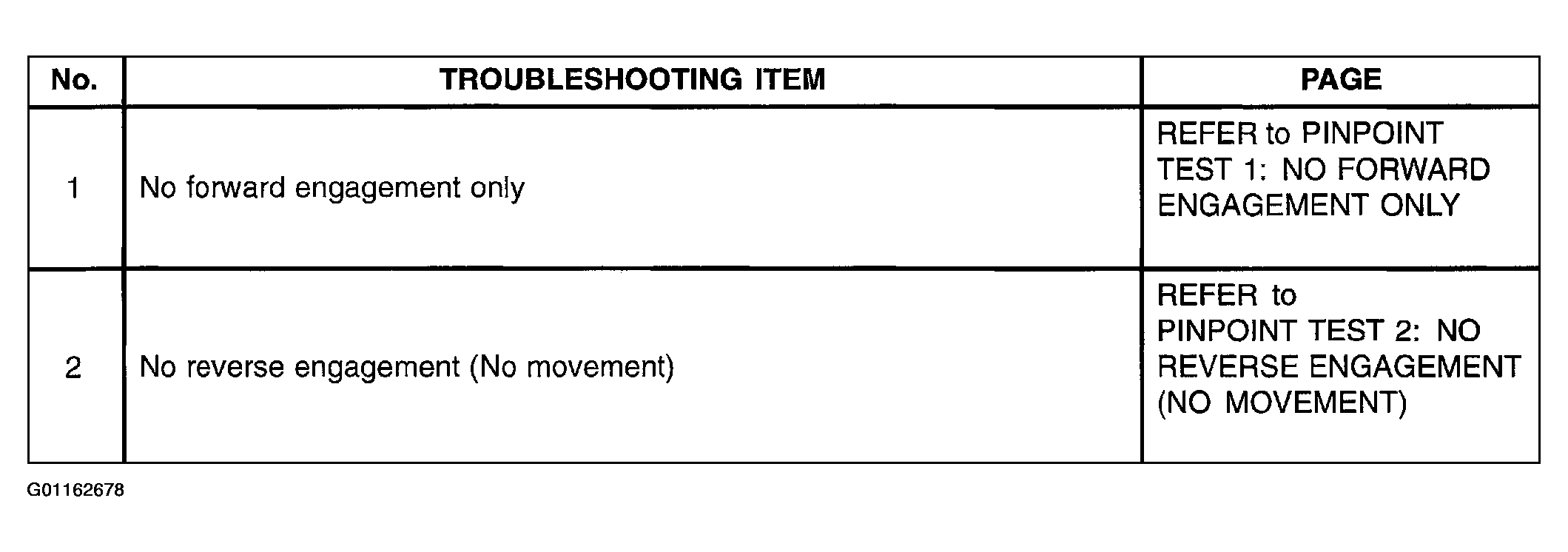

Fig 1: Automatic Transaxle Troubleshooting Index (Troubleshooting Items No. 1-2)

Courtesy of MAZDA MOTORS CORP.

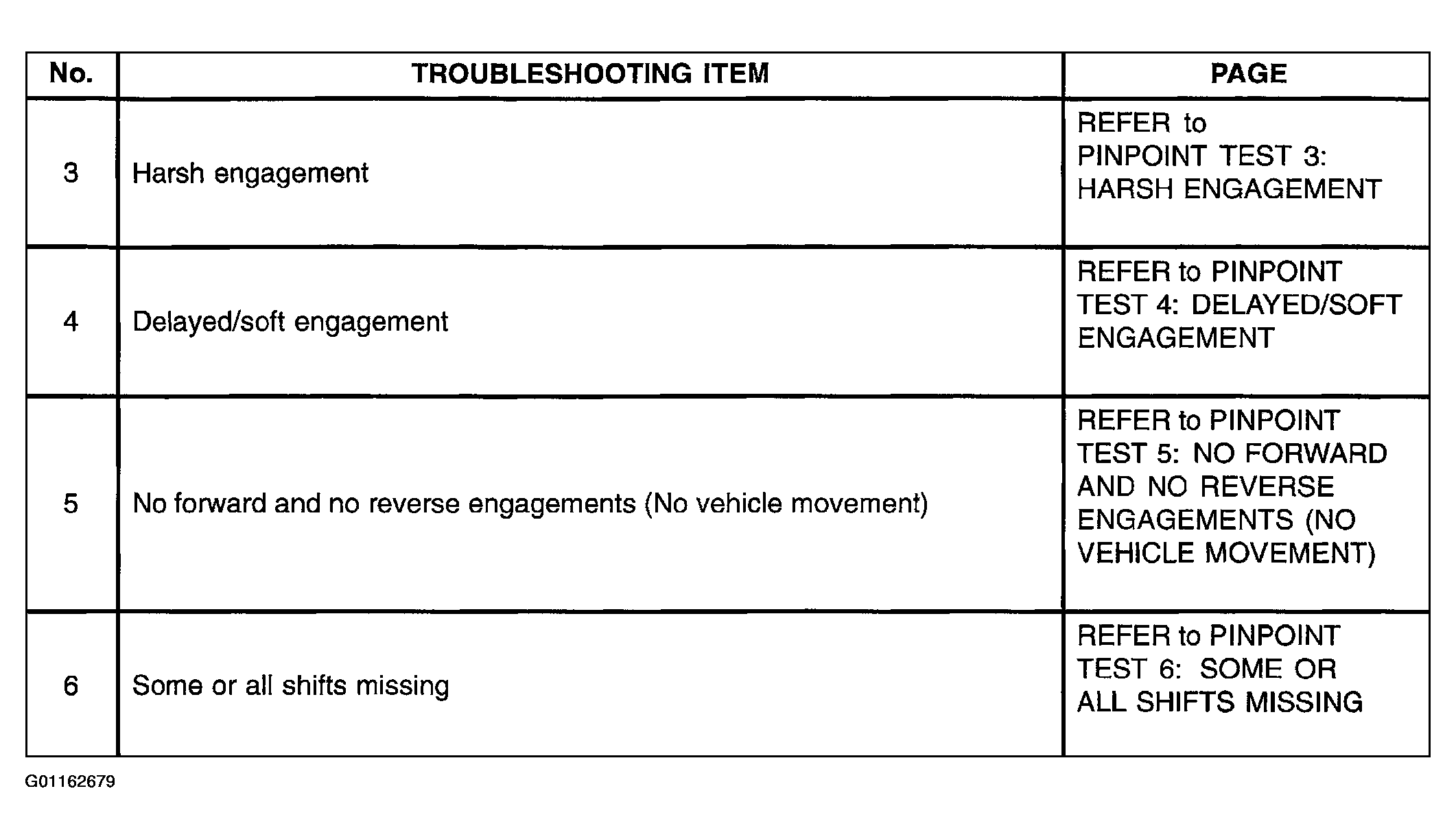

Fig 2: Automatic Transaxle Troubleshooting Index (Troubleshooting Items No. 3-6)

Courtesy of MAZDA MOTORS CORP.

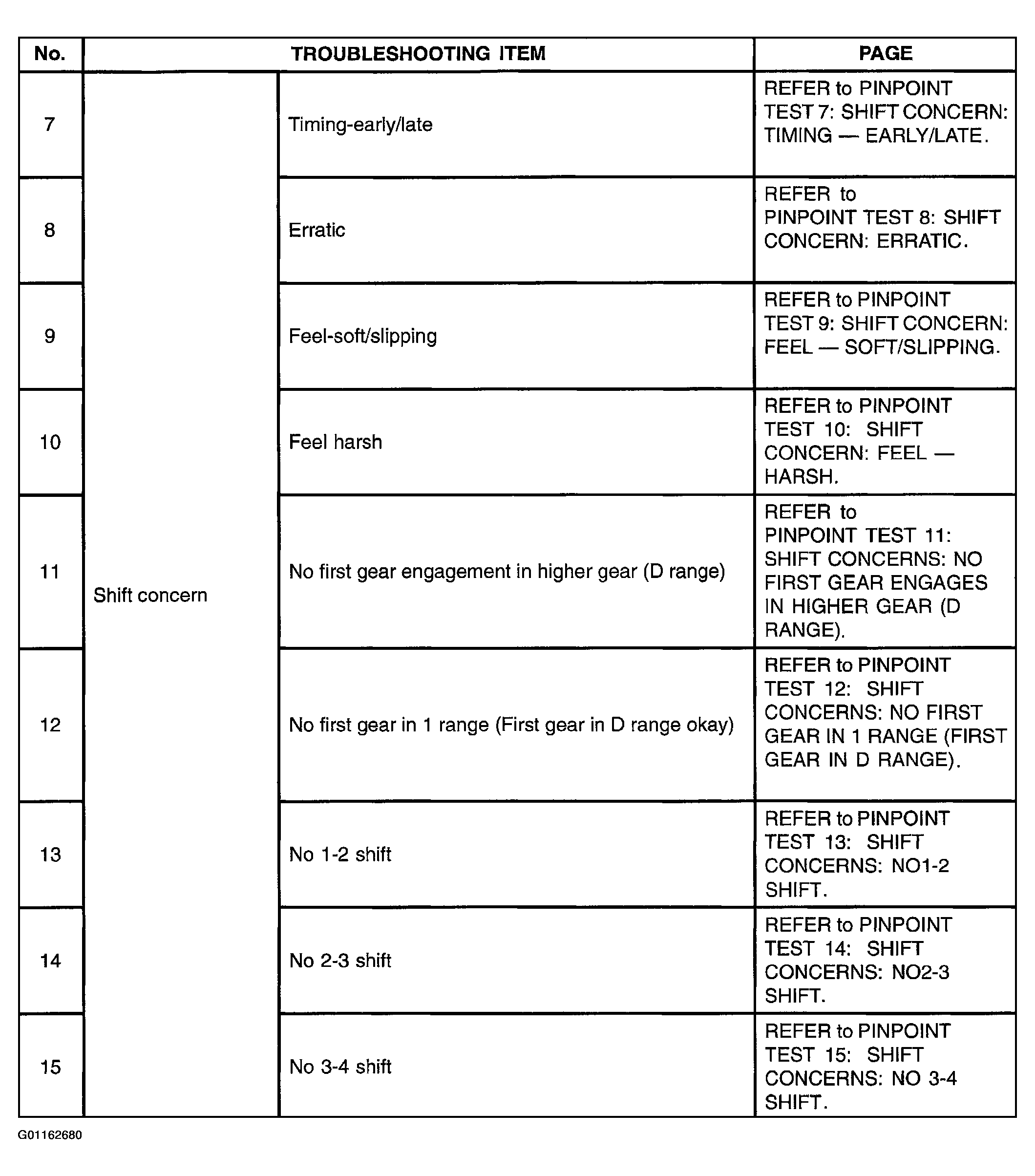

Fig 3: Automatic Transaxle Troubleshooting Index (Troubleshooting Items No. 7-15)

Courtesy of MAZDA MOTORS CORP.

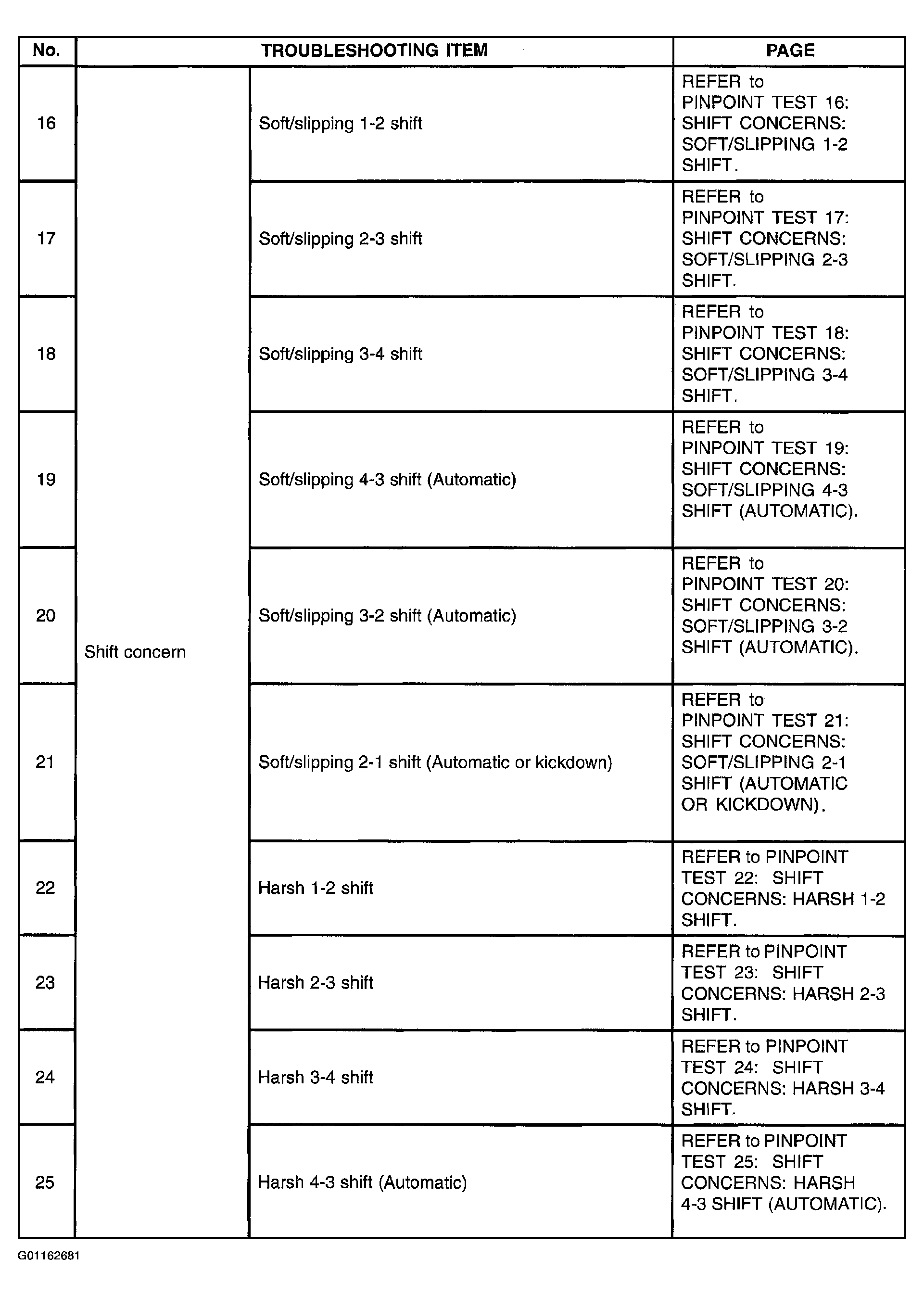

Fig 4: Automatic Transaxle Troubleshooting Index (Troubleshooting Items No. 16-25)

Courtesy of MAZDA MOTORS CORP.

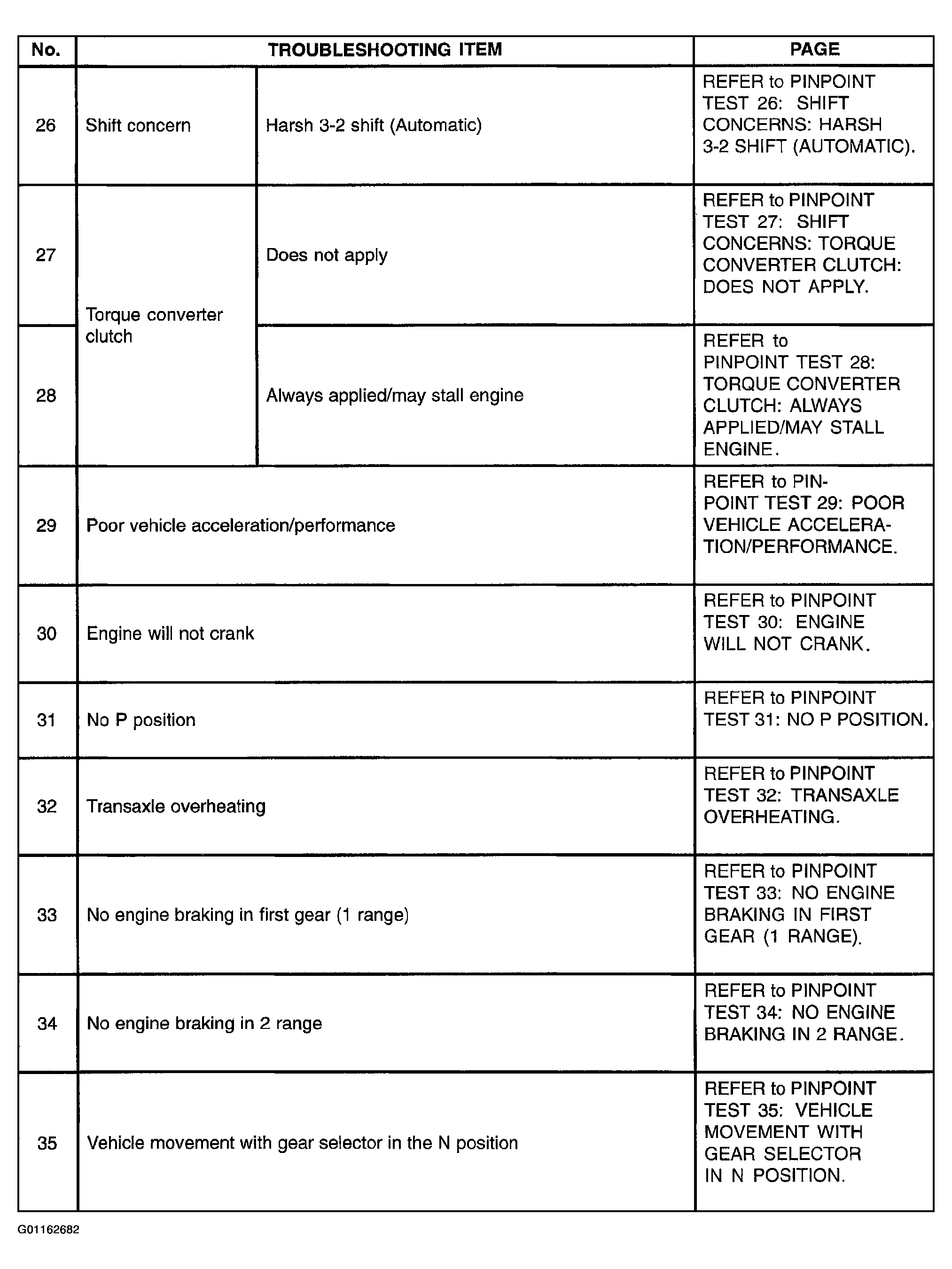

Fig 5: Automatic Transaxle Troubleshooting Index (Troubleshooting Items No. 26-35)

Courtesy of MAZDA MOTORS CORP.

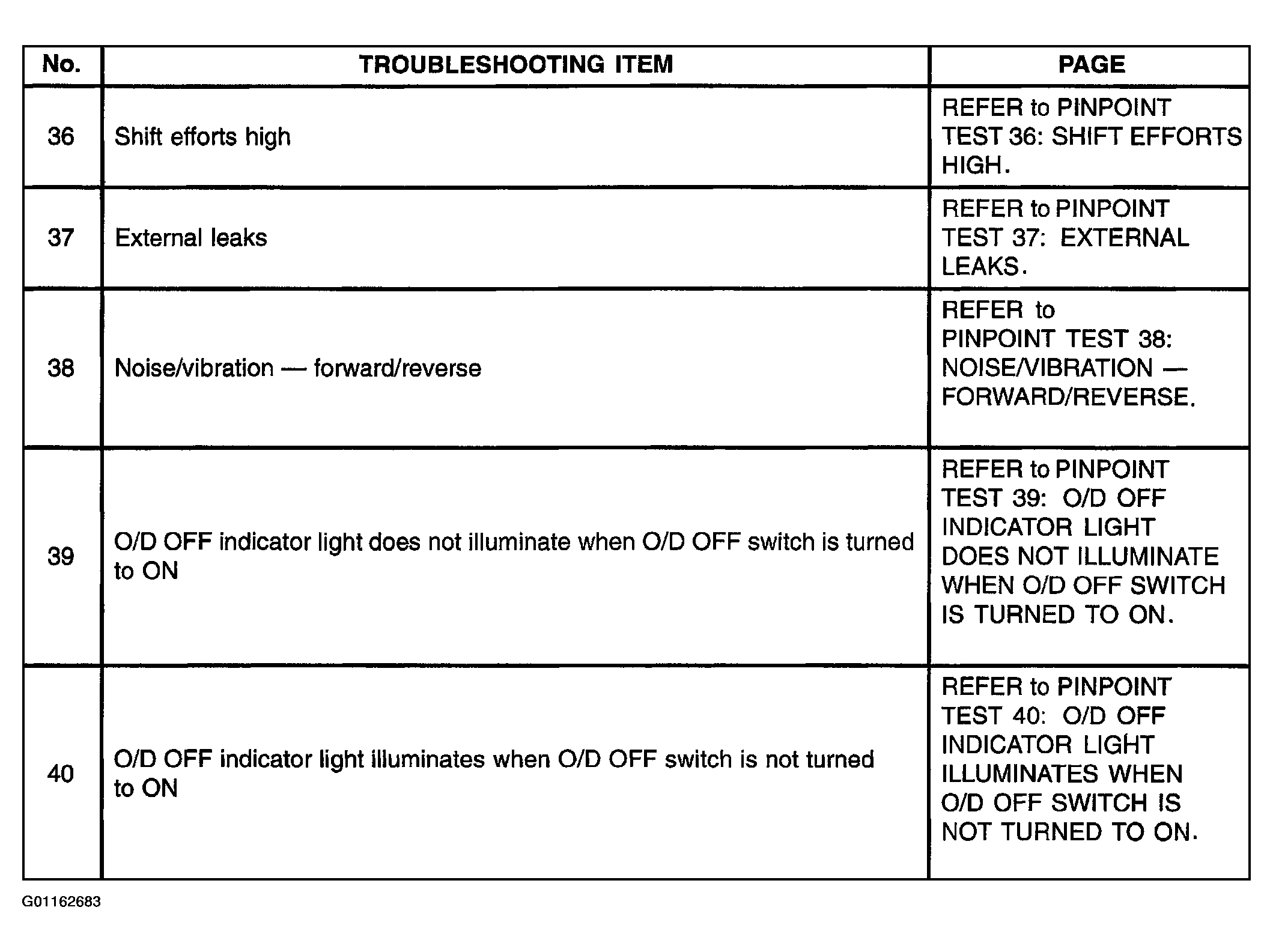

Fig 6: Automatic Transaxle Troubleshooting Index (Troubleshooting Items No. 36-40)

Courtesy of MAZDA MOTORS CORP.
