Power Window SUBSWITCH Inspection

Inspect for continuity between the power window subswitch terminals.
- If not as specified, replace the power window subswitch.

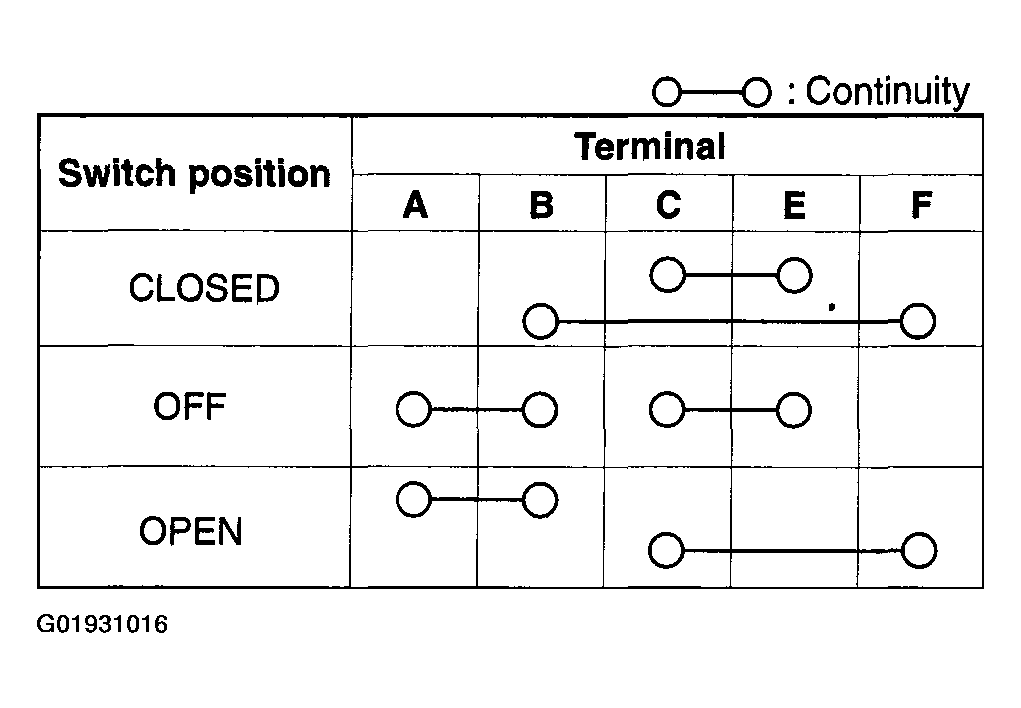

Fig 1: Power Window Subswitch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Continuity Between Power Window Subswitch Terminals
Courtesy of MAZDA MOTORS CORP.
