Select Cable Installation Note

Remove the center console.
Make sure that the shift lever (transaxle side) is in neutral.
Unlock the lock piece of the select cable (shift lever side) in the order shown in Fig 1 or Fig 2 .

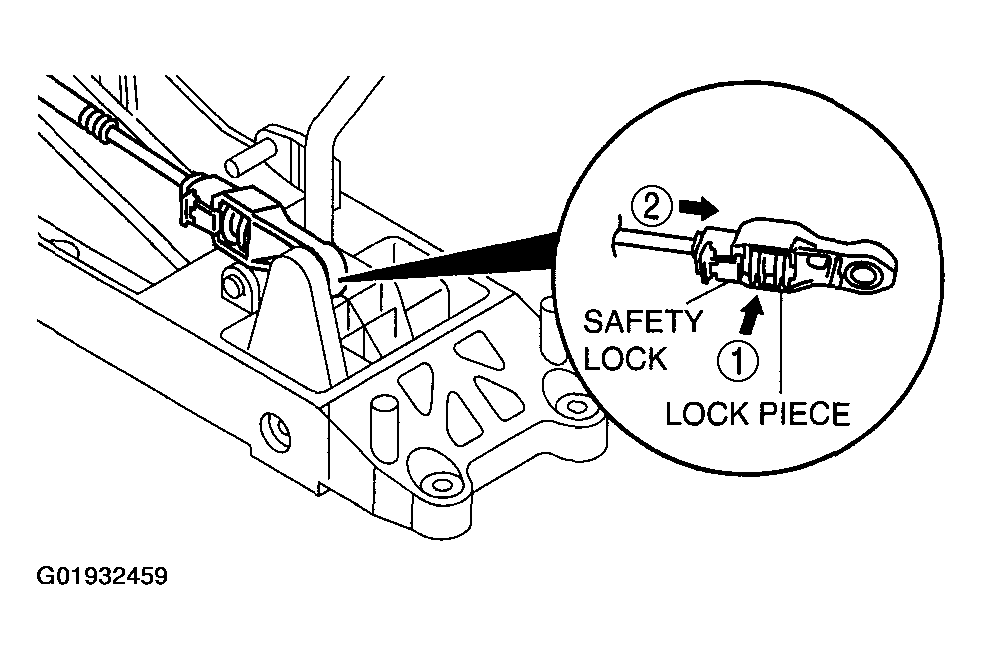

Fig 1: Removing Select Cable (G35M-R)
Courtesy of MAZDA MOTORS CORP.

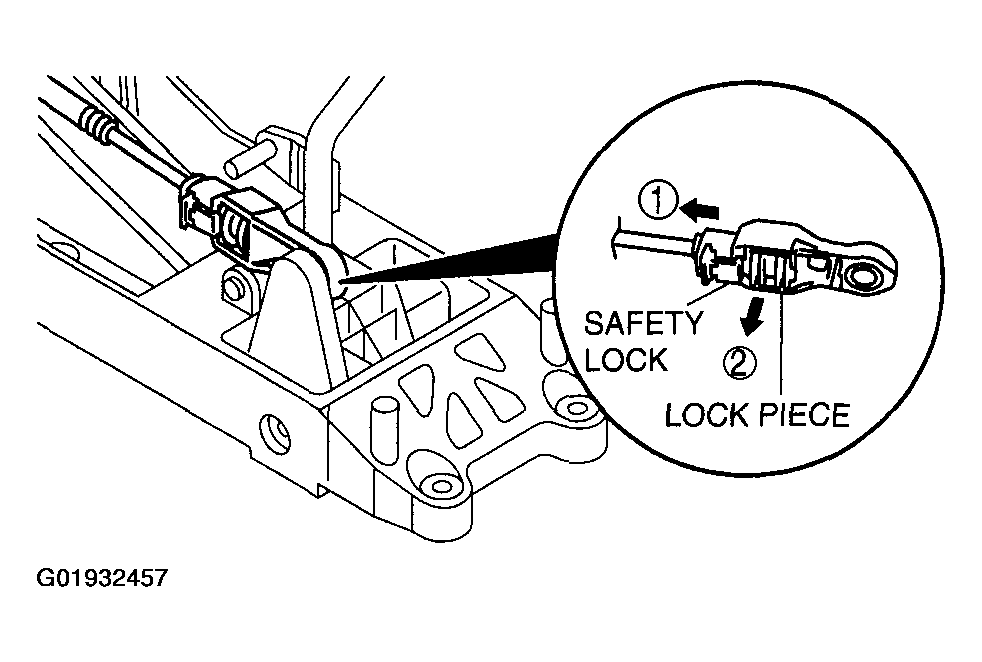

Fig 2: Removing Select Cable (A65M-R)
Courtesy of MAZDA MOTORS CORP.
Shift the sift lever to neutral.
Lock the lock piece of the selector cable (shift cable side) in the order shown in Fig 3 or Fig 4 .

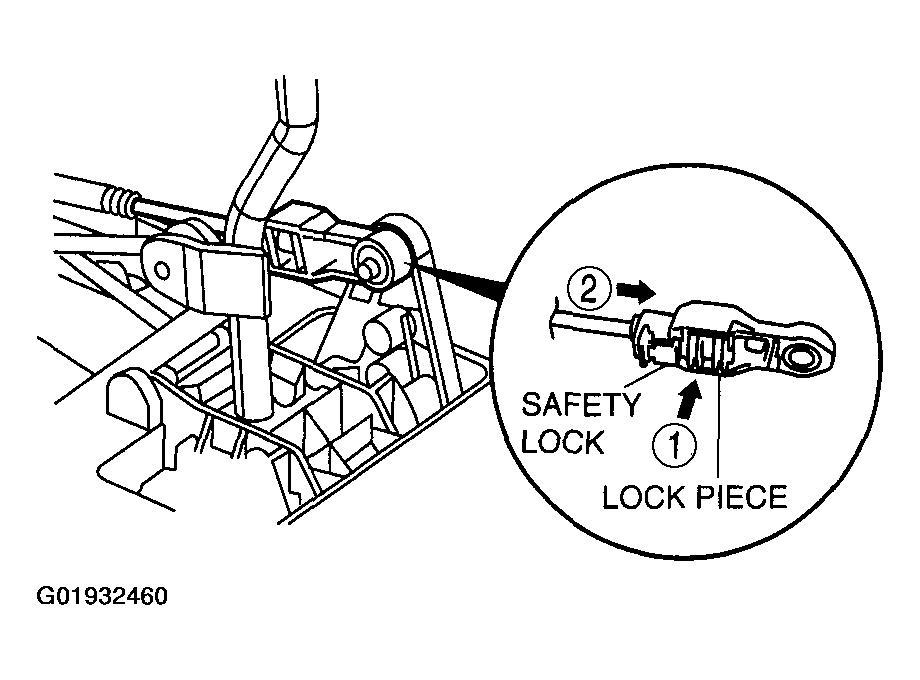

Fig 3: Installing Select Cable (G35M-R)
Courtesy of MAZDA MOTORS CORP.

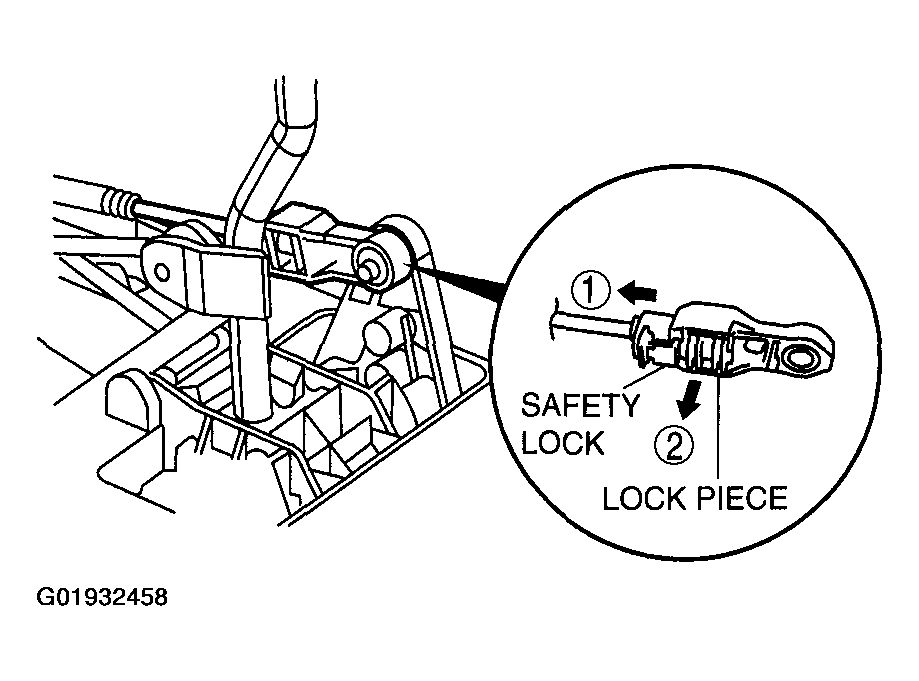

Fig 4: Installing Select Cable (A65M-R)
Courtesy of MAZDA MOTORS CORP.
Install the center console.
Shift the shift lever from neutral to other position, and make sure that there are no other components in that area to interfere with the lever.
