Fan Control Module Connector End View

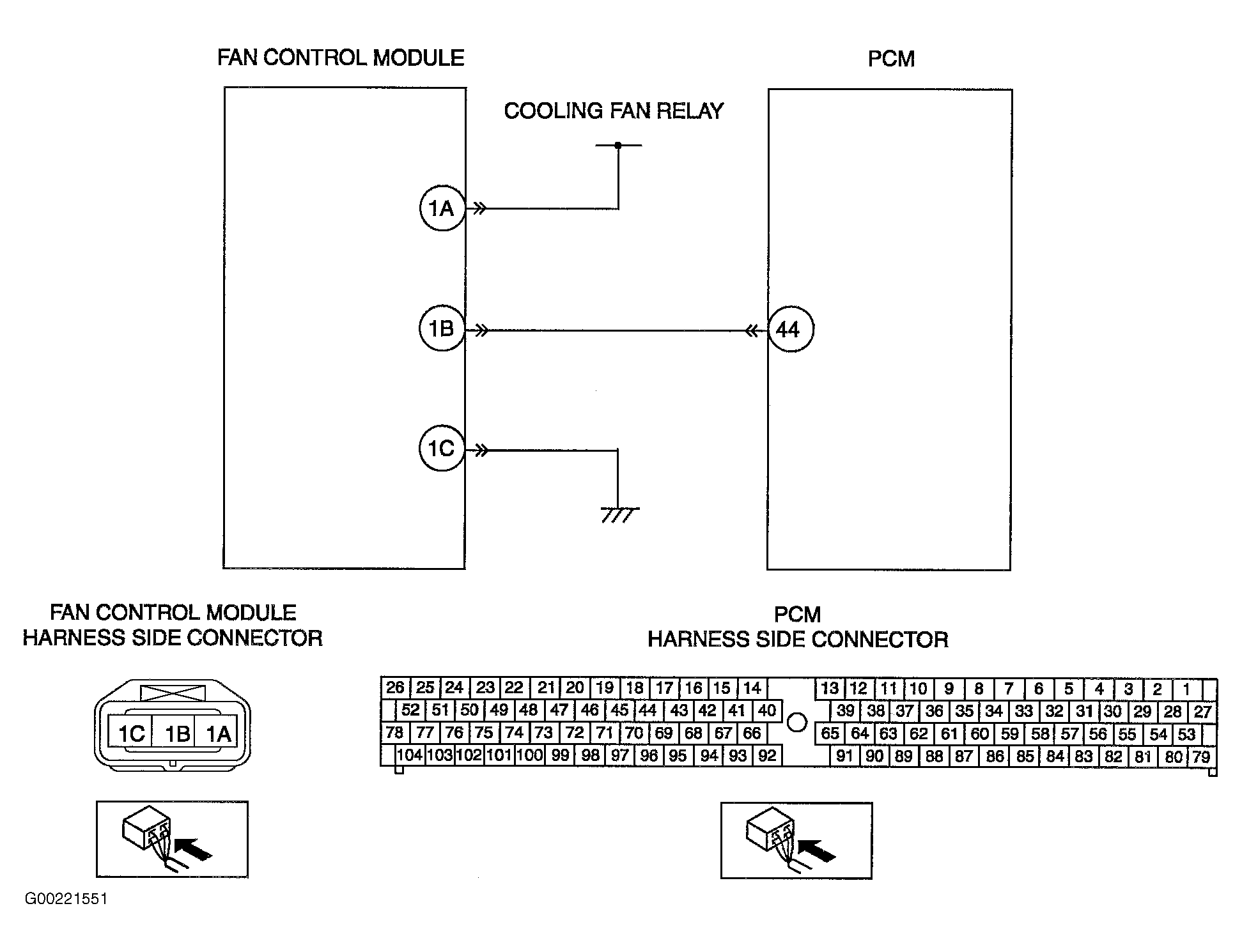

Fig 1: Fan Control Module Connector End View
G00221551Courtesy of MAZDA MOTORS CORP.
