Diagnostic procedure

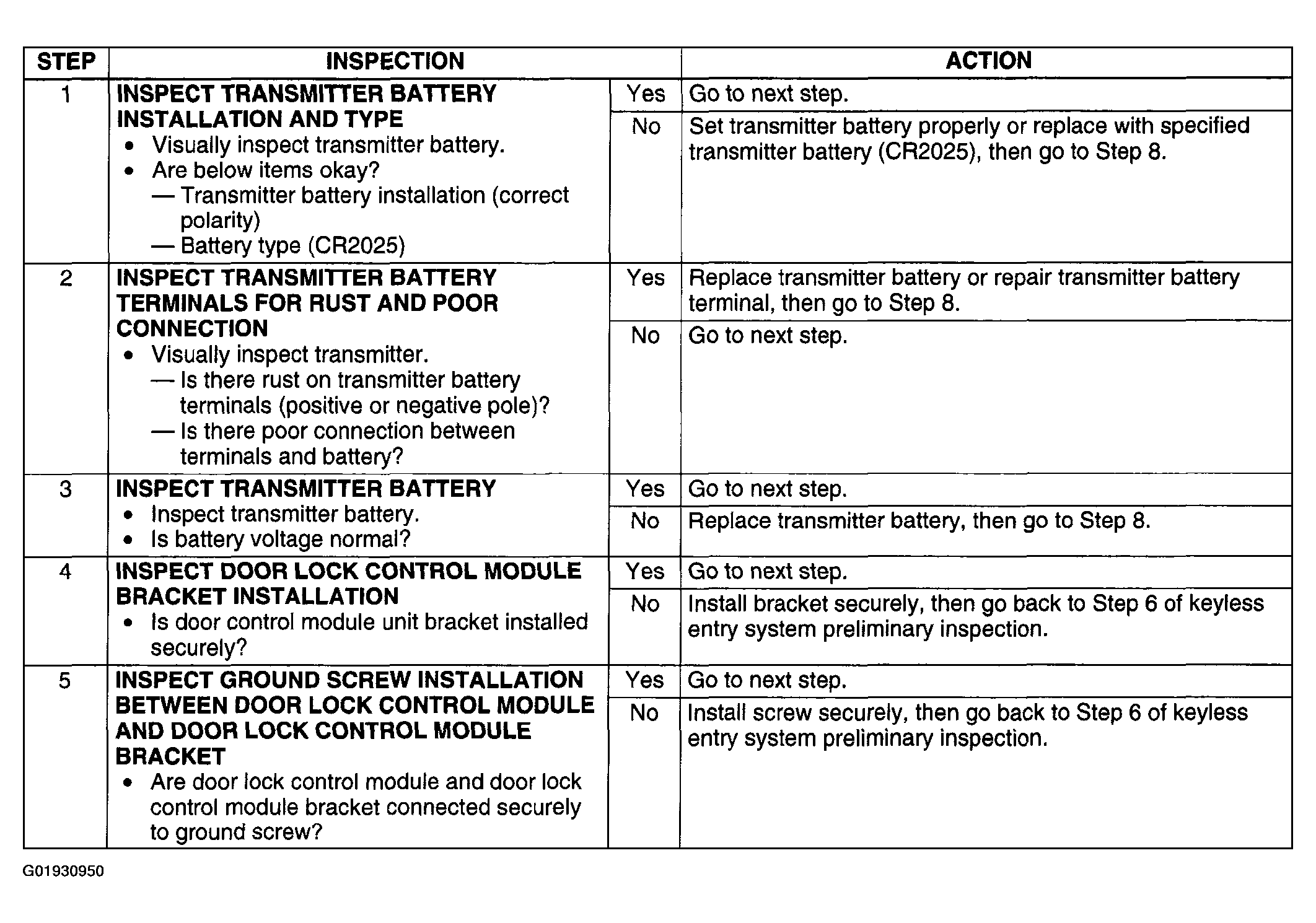

Fig 1: Diagnostic Procedure - No. 3 Transmitter ID Code Cannot Be Reprogrammed (1 Of 2)
G01930950Courtesy of MAZDA MOTORS CORP.

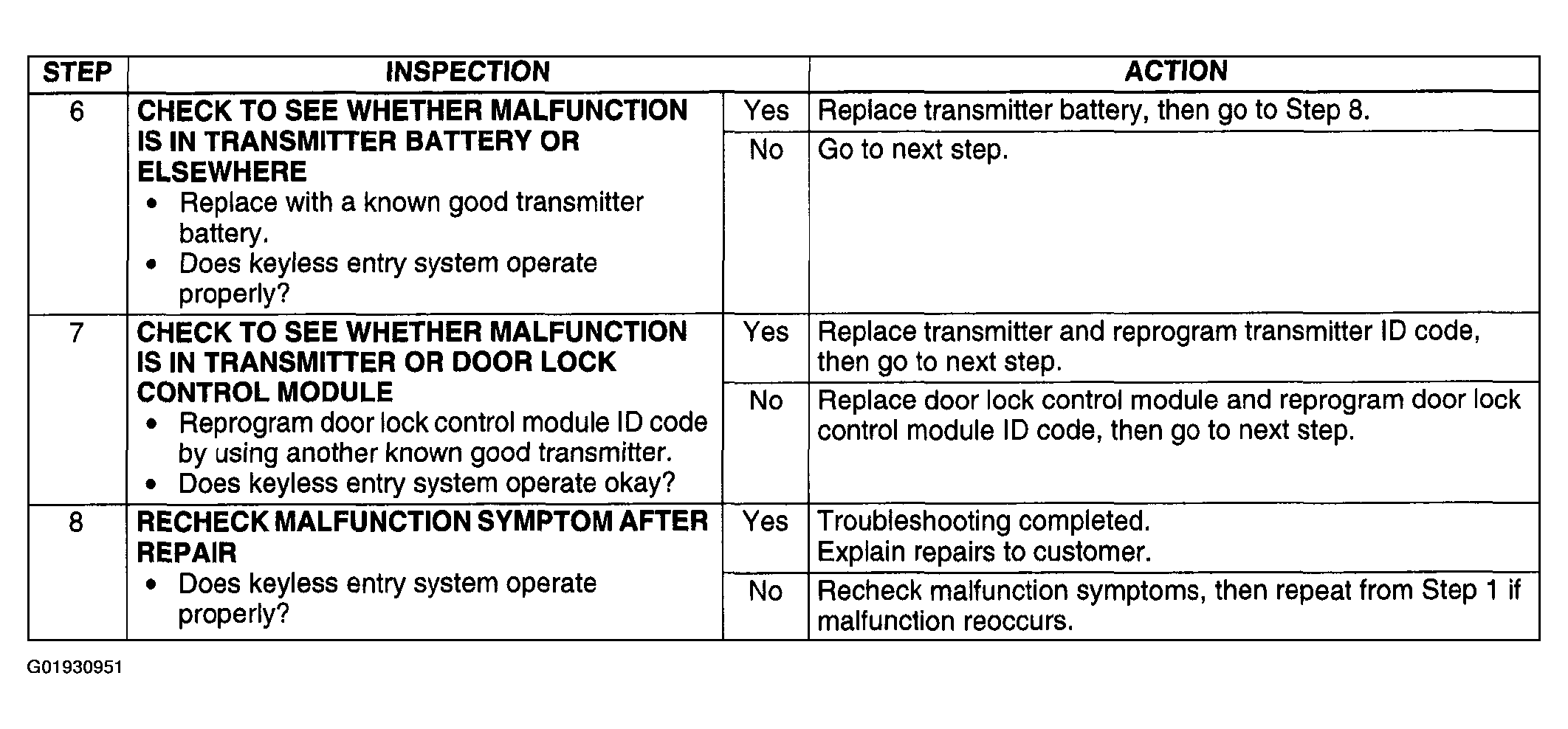

Fig 2: Diagnostic Procedure - No. 3 Transmitter ID Code Cannot Be Reprogrammed (2 Of 2)
G01930951Courtesy of MAZDA MOTORS CORP.
