Fuse Block Removal/Installation

Disconnect the negative battery cable.
Remove the left-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure below.

Fig 1: Fuse Block Removal Order Table
Courtesy of MAZDA MOTORS CORP.

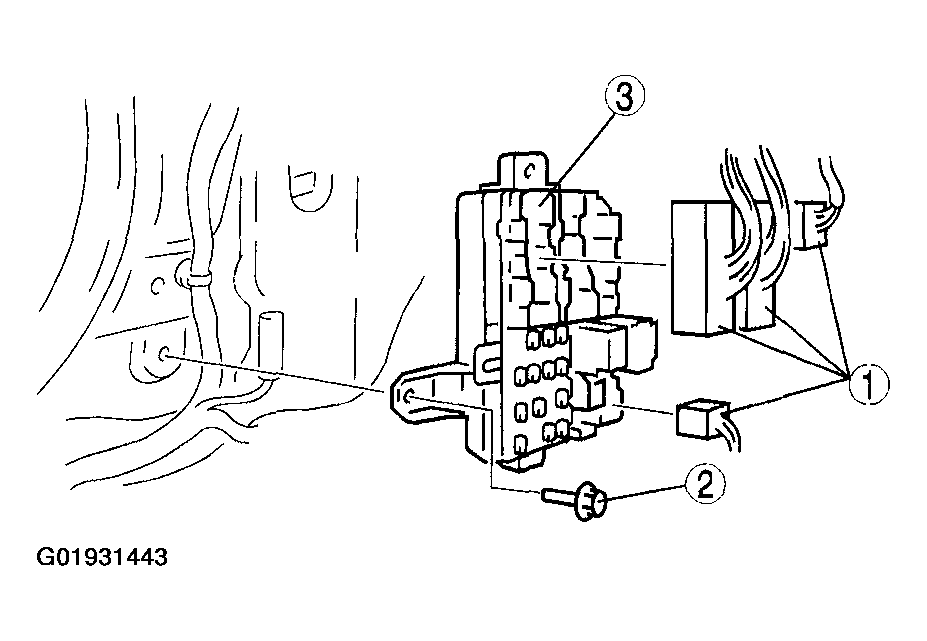

Fig 2: Removing Fuse Block
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
