Relay Location

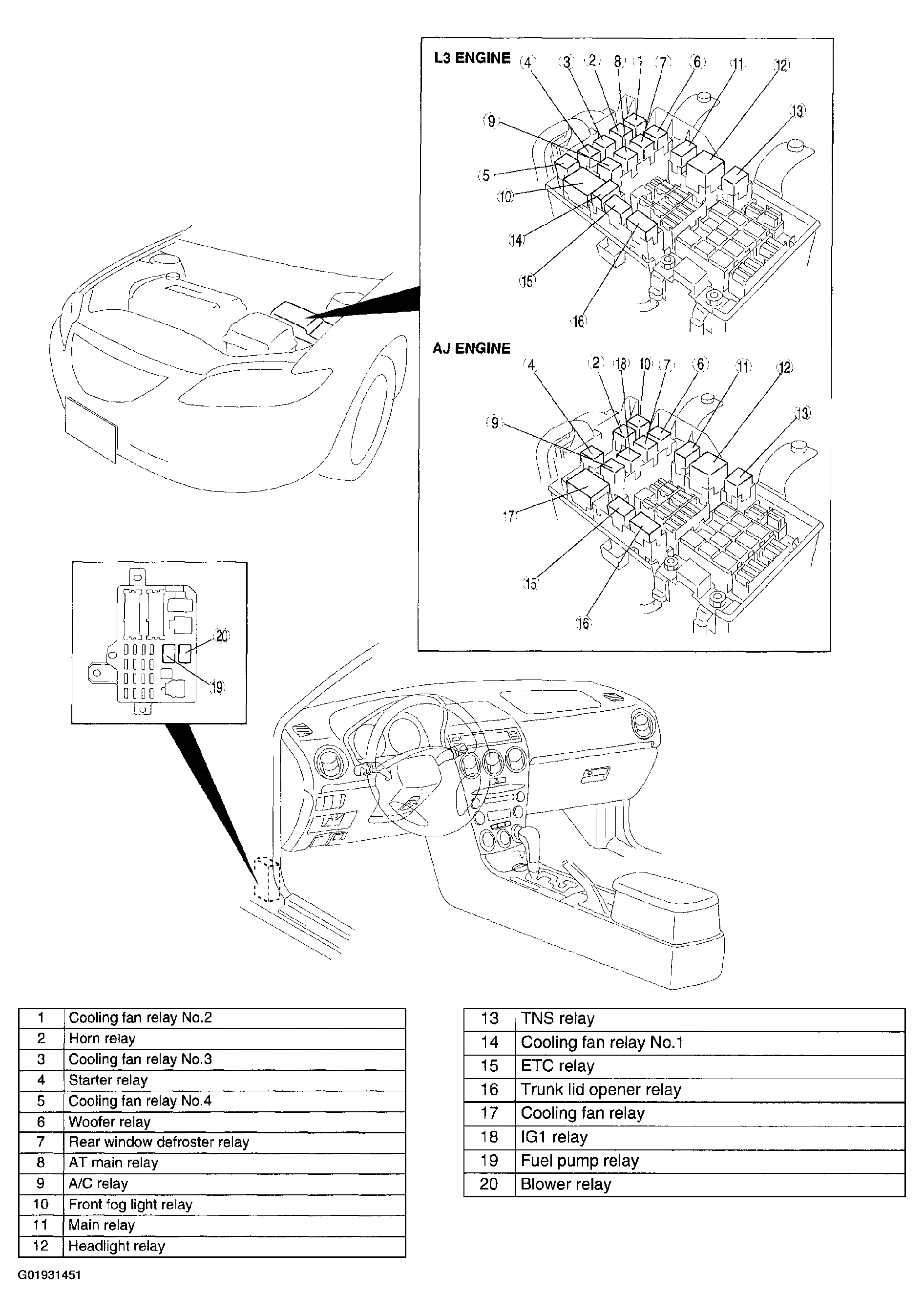

Fig 1: Identifying Relay Location (L3 Engine/AJ Engine)
G01931451Courtesy of MAZDA MOTORS CORP.
