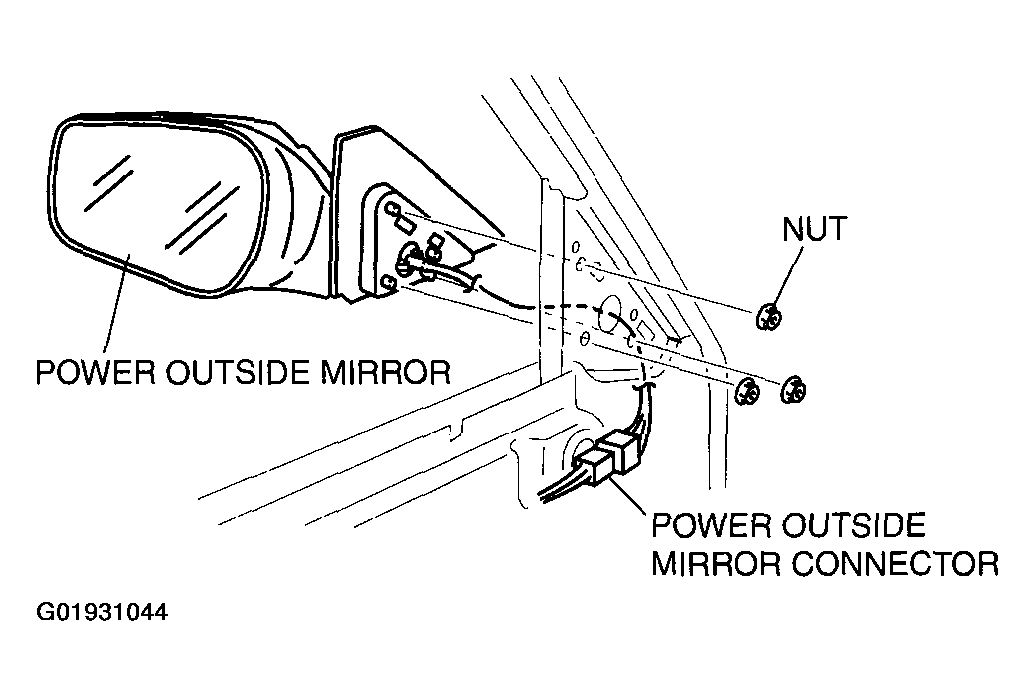

Power Outside Mirror Removal/Installation
- Disconnect the negative battery cable.
- Remove the inner garnish.
- Remove the front door trim.
- Disconnect the power outside mirror connector.
- Remove the nuts.
- Remove the power outside mirror.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
