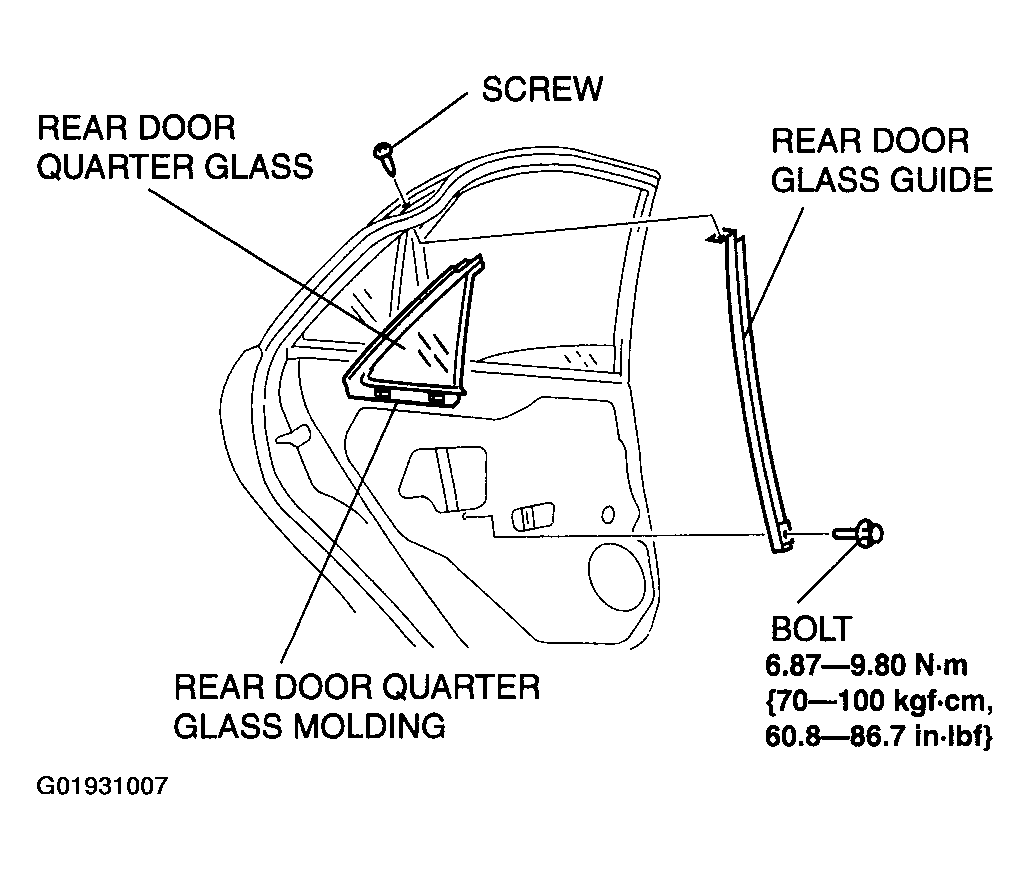

Rear Door Quarter Glass Removal/Installation
- Remove the rear door trim.
- Remove the screw and bolt, then remove the rear door glass guide.
- Remove the rear door quarter glass and the molding as a signal unit.
- Remove the rear door quarter glass molding from the glass.
- Install in the reverse order of removal.
