Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

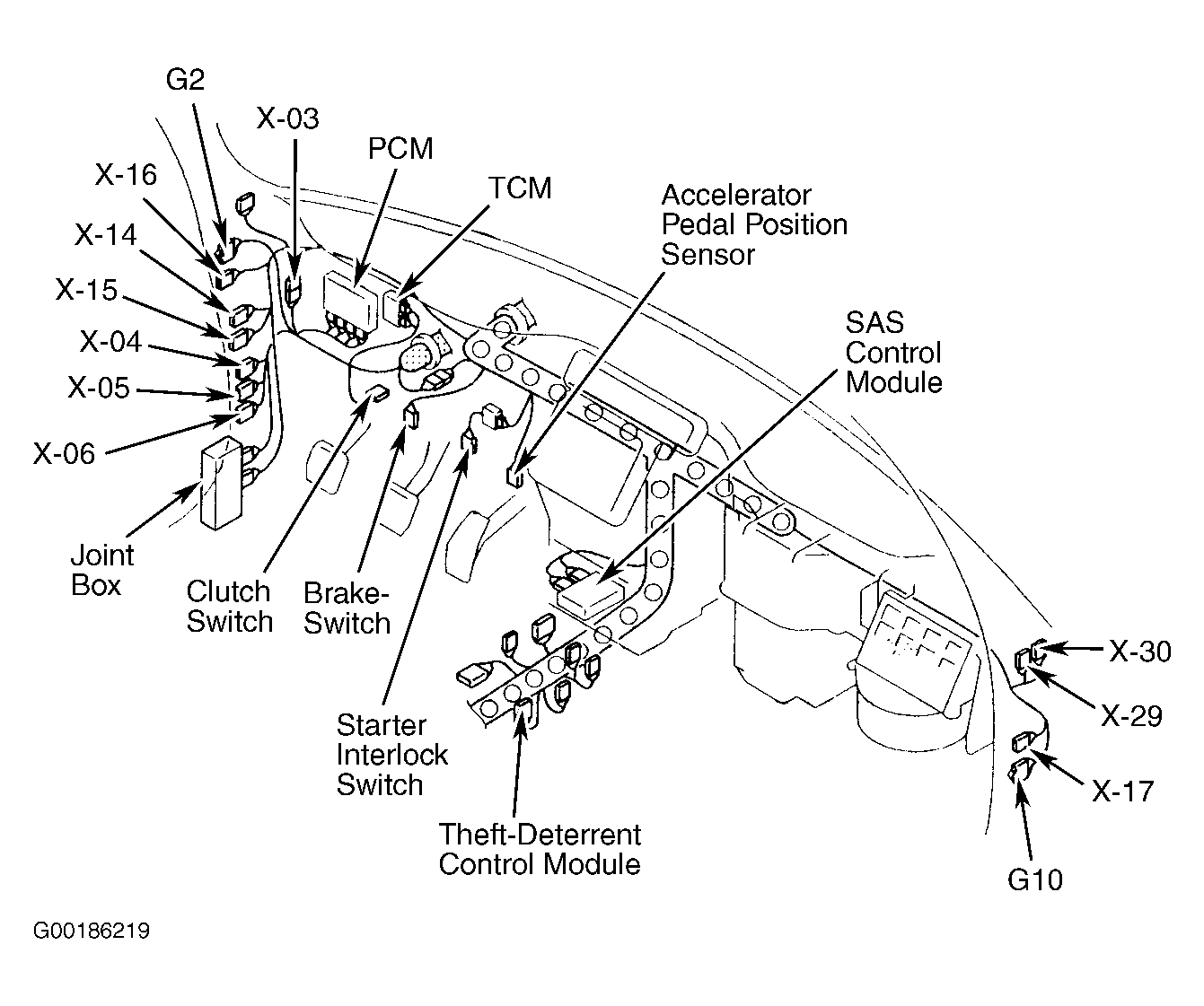

| Joint Box | Behind left kick panel. See Figure. |
| Main Fuse & Relay Box | On left front inner fender panel. |
| Component | Component Location |
|---|---|
| Joint Box | Behind left kick panel. See Figure. |
| Main Fuse & Relay Box | On left front inner fender panel. |
