Operating Order

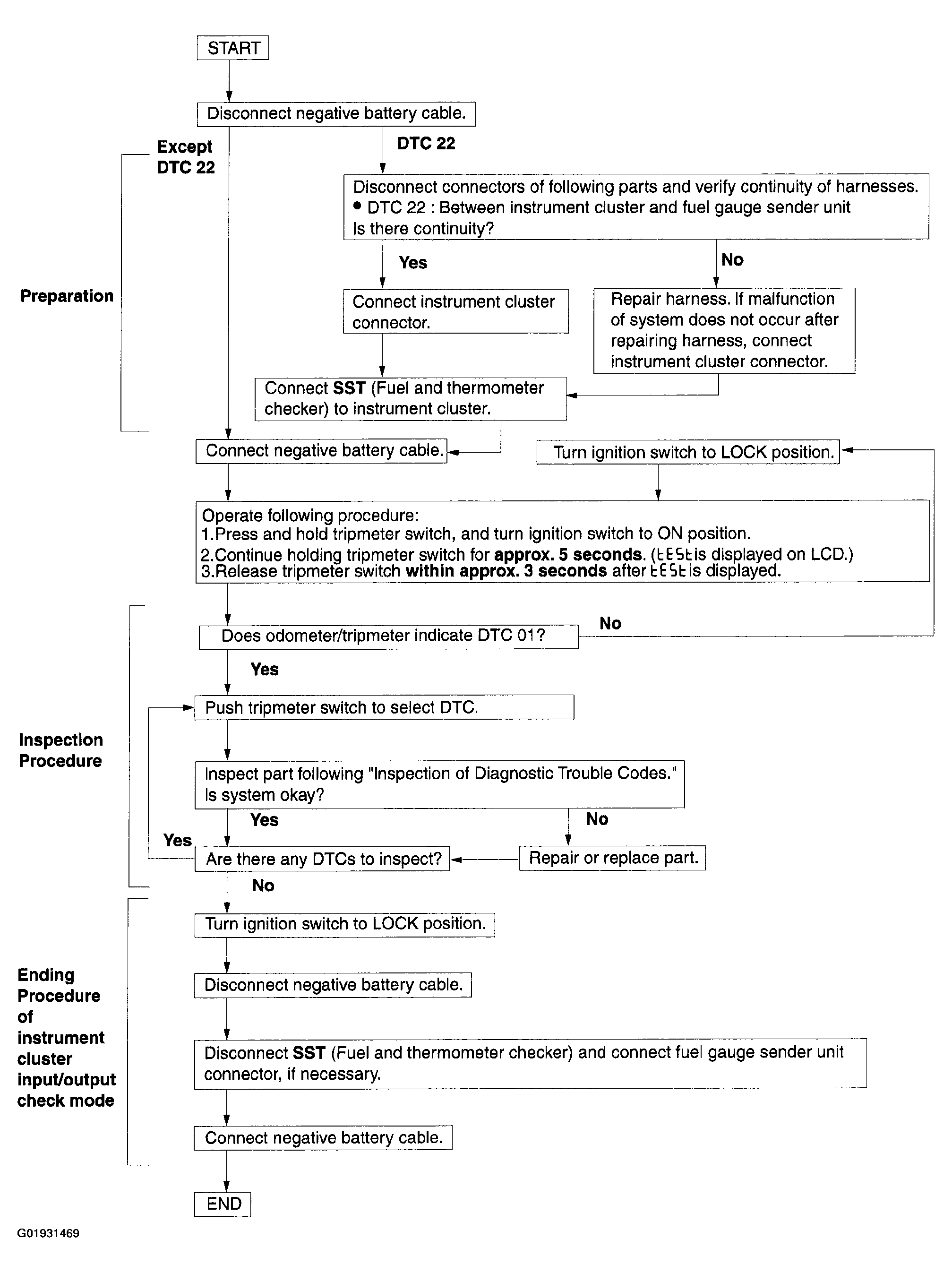

Fig 1: Instrument Cluster Input/Output Check Mode Procedure Chart
G01931469Courtesy of MAZDA MOTORS CORP.
