Rear Seat Disassembly/Assembly

  1. Disassemble in the order indicated.
  2. Assemble in the reverse order of disassembly.

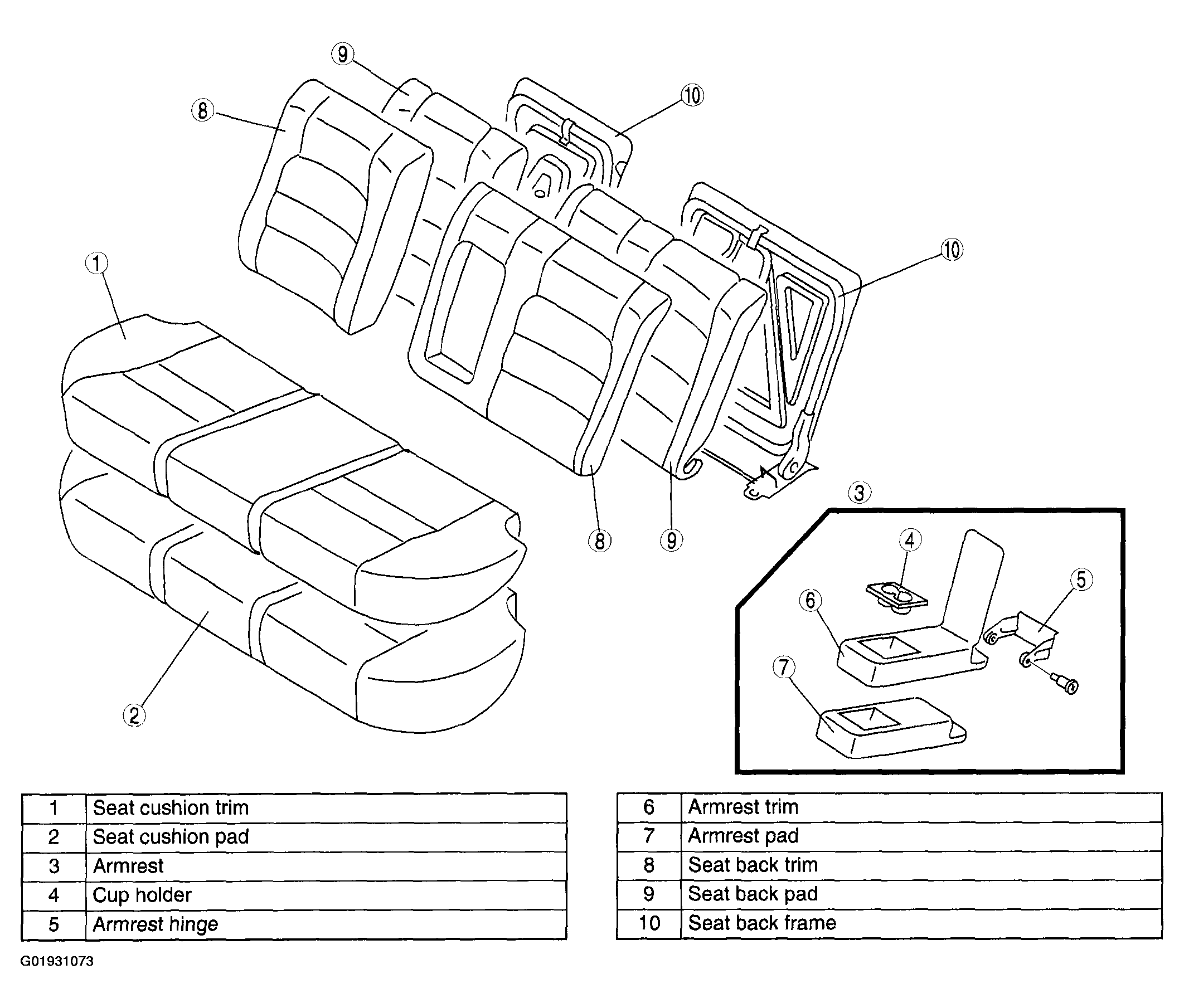

    Fig 1: Disassembling Rear Seat
    G01931073Courtesy of MAZDA MOTORS CORP.
