Seat Belt System
›
Seat Belt Location Index
Seat Belt Location Index

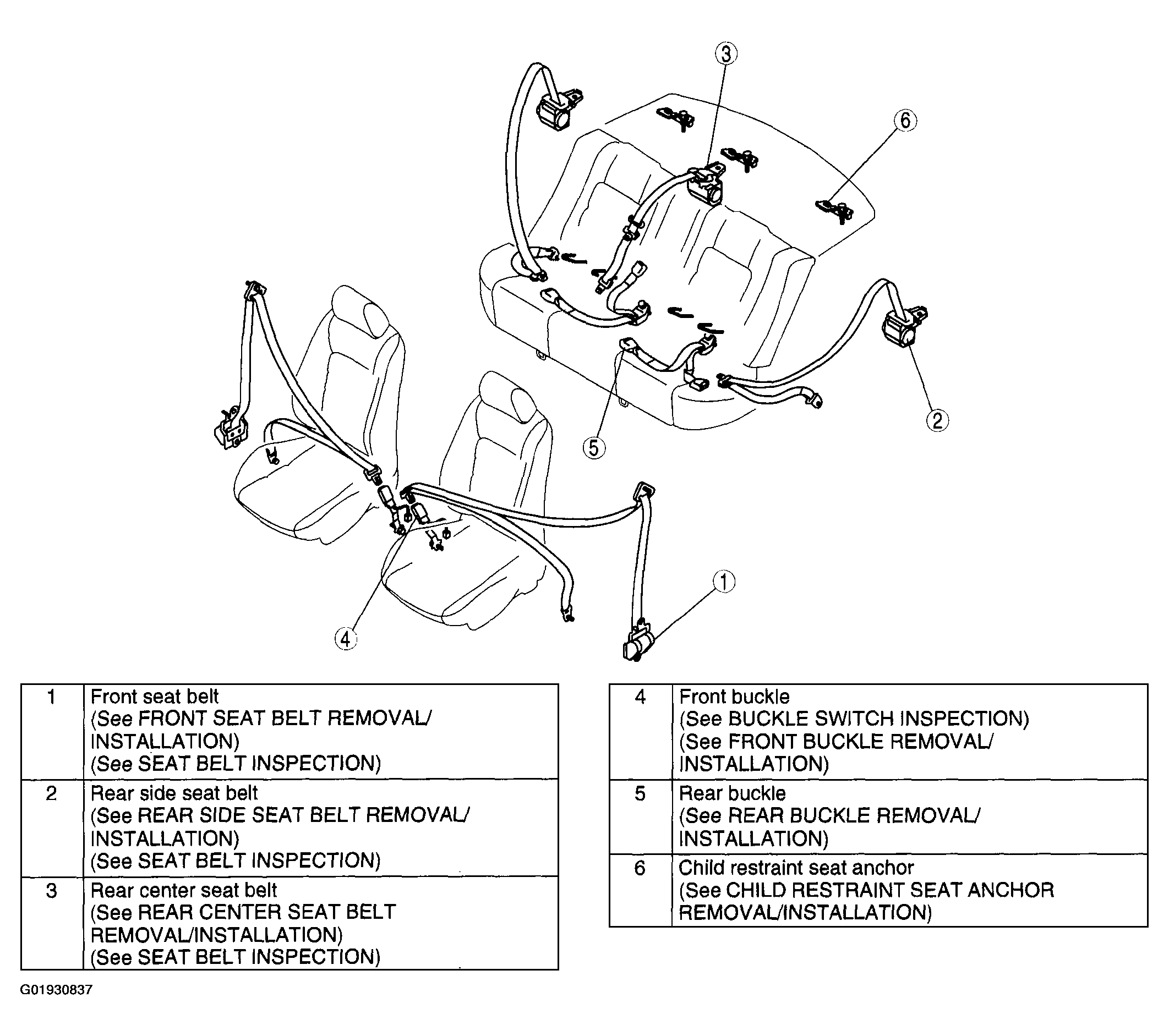

Fig 1: Identifying Seat Belt Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
