Clip Disassembly Note

  1. Lift up the clip tab using a screwdriver (-).
  2. Remove the clip pushing with a screwdriver (-) and a hammer as shown in Fig 1.

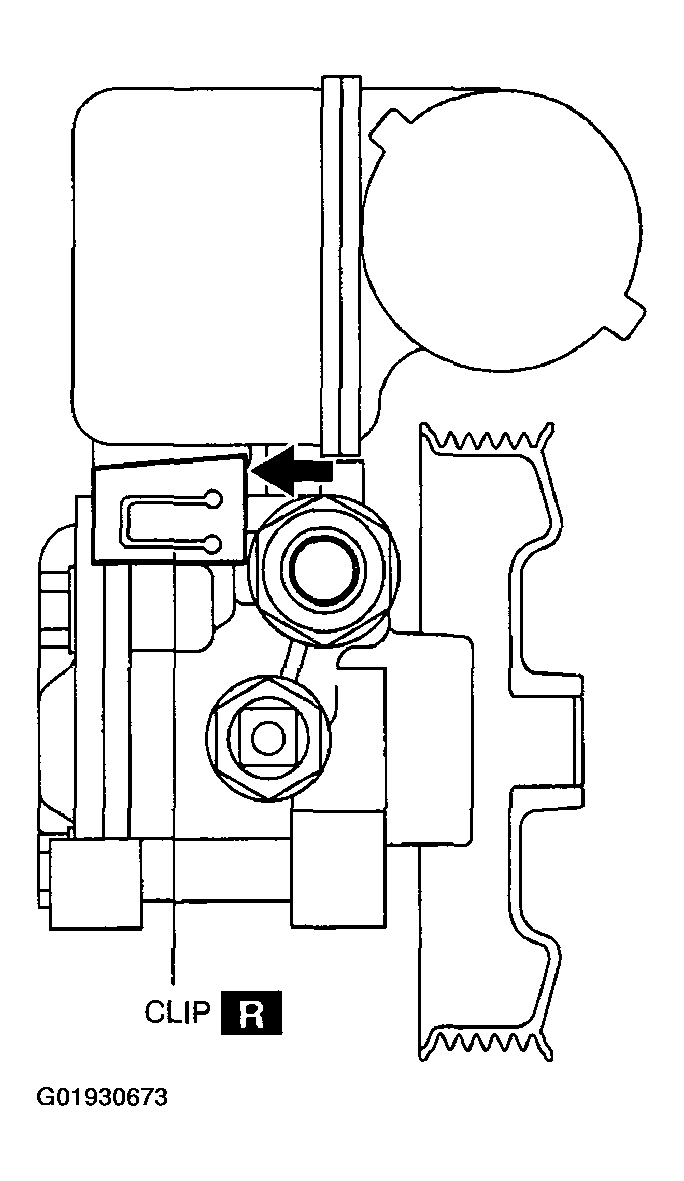

    Fig 1: Removing Clip
    G01930673Courtesy of MAZDA MOTORS CORP.
