Steering Gear And Linkage Disassembly: Notes

CAUTION:

Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.

Disassemble in the order indicated in Fig 1.

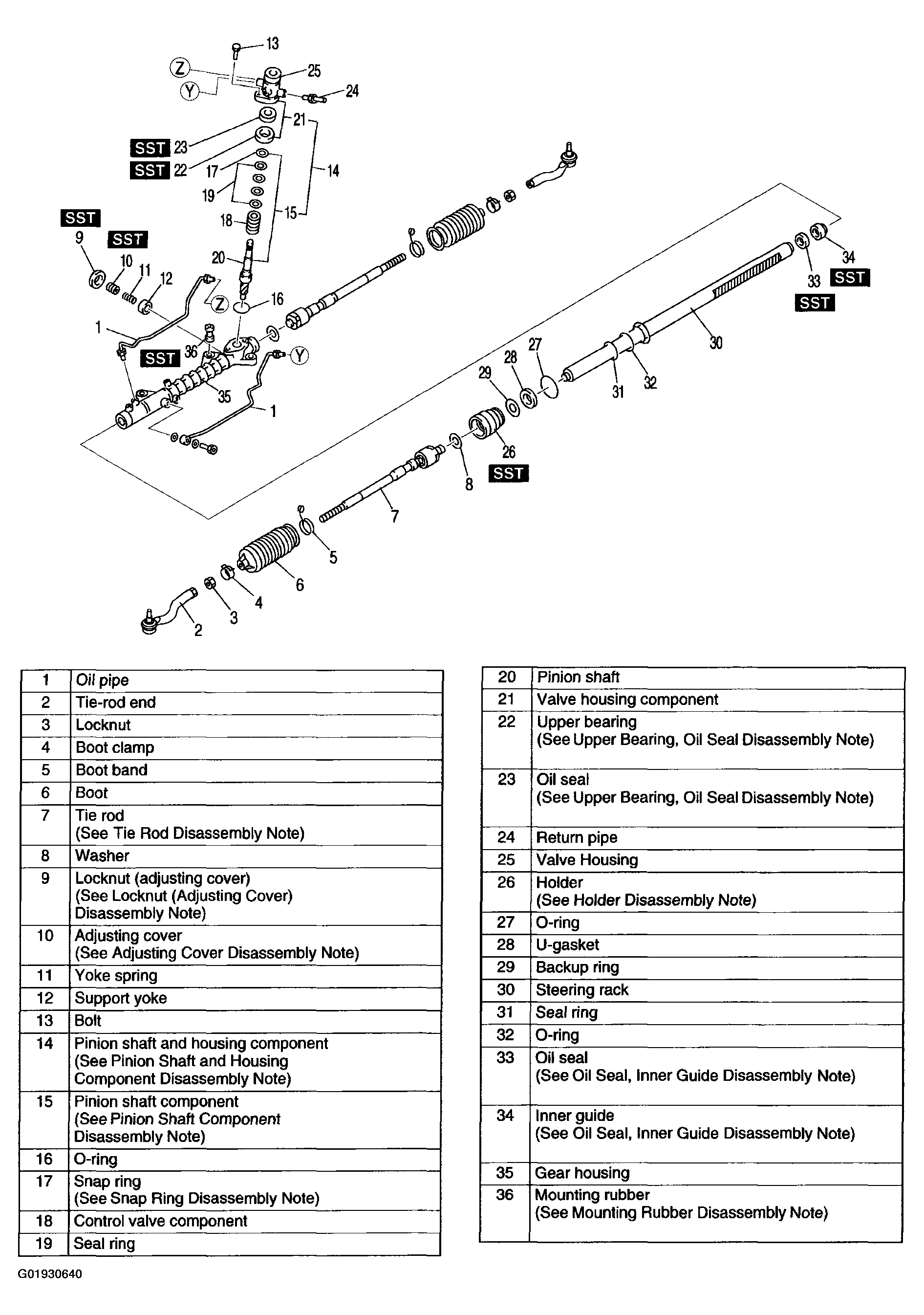

Fig 1: Exploded View Of Steering Gear And Linkage
Courtesy of MAZDA MOTORS CORP.
