Neutral Switch Removal/Installation

  1. Remove the neutral switch.

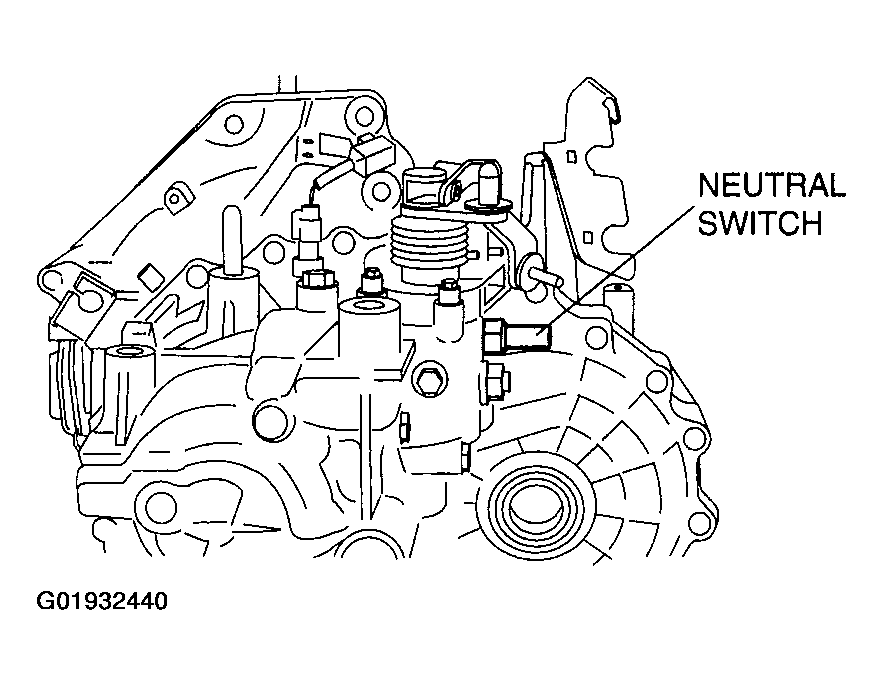

    Fig 1: Locating Neutral Switch
    G01932440Courtesy of MAZDA MOTORS CORP.
  2. Apply a light coat of silicone sealant to the screw of the neutral switch.
    1. Sealant
    2. Three Bond product: TB1215
  3. Install the neutral switch to the transaxle case.
    1. Tightening torque 22.5-33.3 N.m {2.3-3.4 kgf.m, 16.6-24.6 ft.lbf}
