Assembly Components

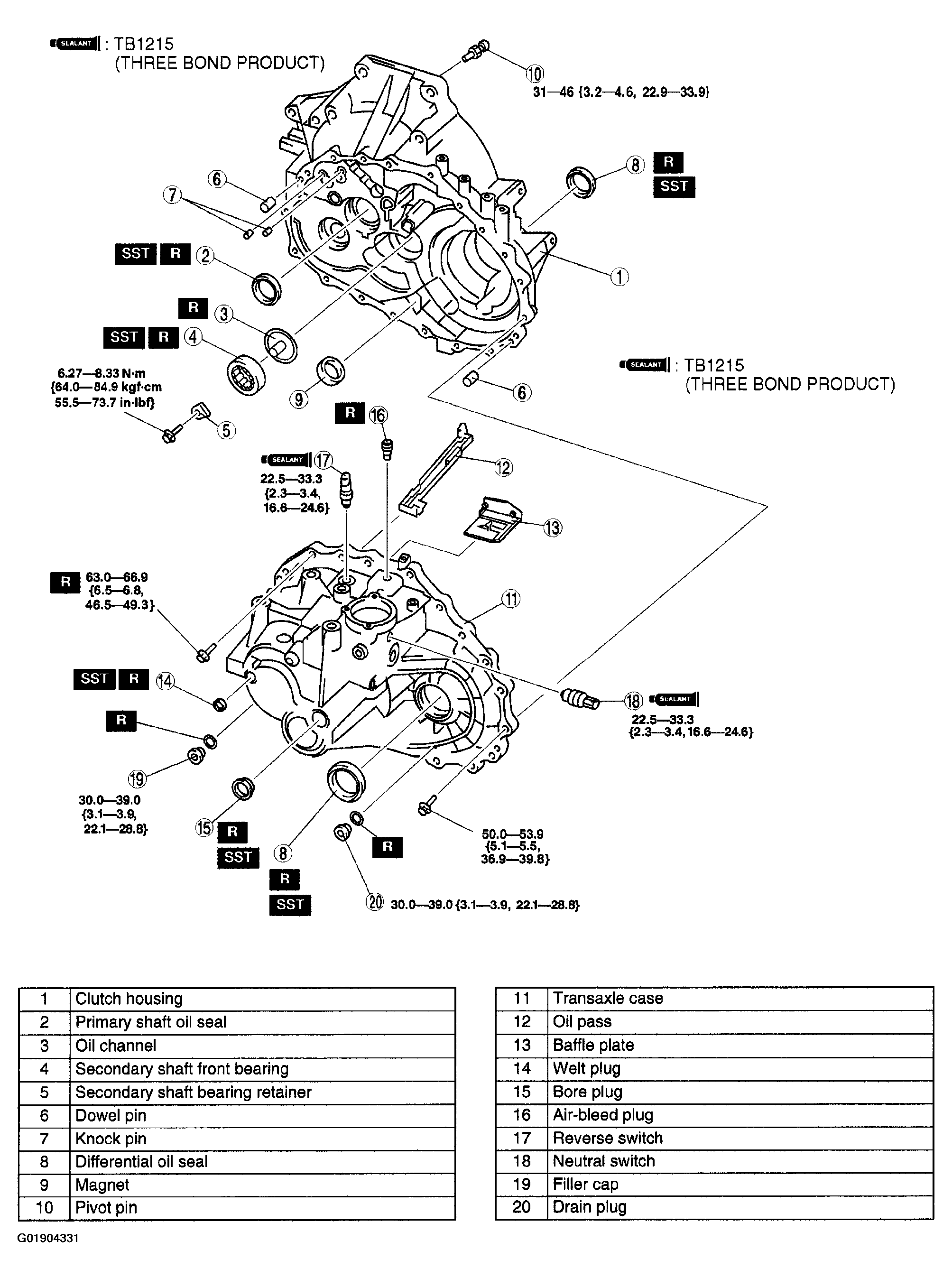

Fig 1: Assembling Clutch Housing & Transaxle Case (1 Of 2)
G01904331Courtesy of MAZDA MOTORS CORP.

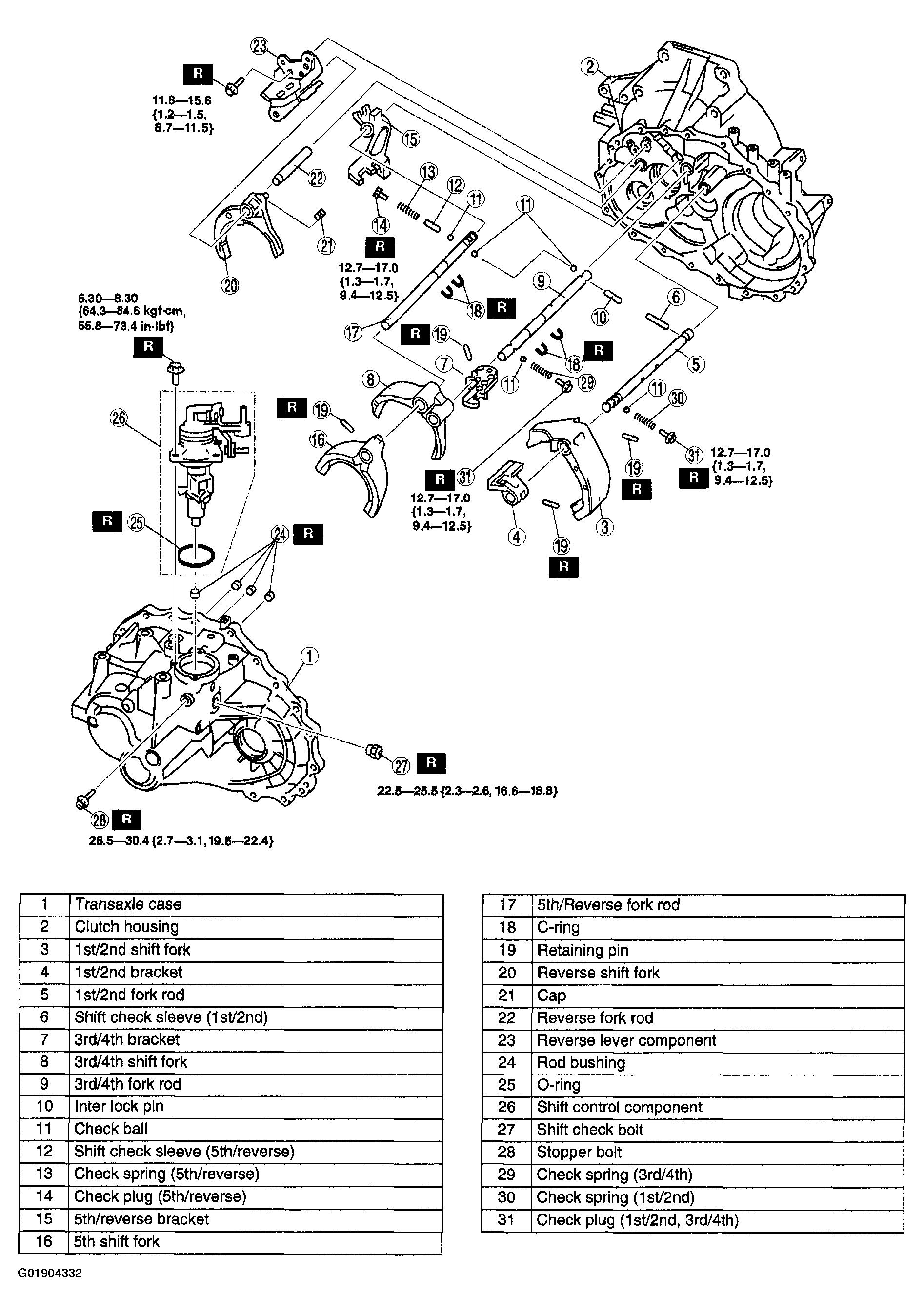

Fig 2: Assembling Clutch Housing & Transaxle Case (2 Of 2)
G01904332Courtesy of MAZDA MOTORS CORP.
