Differential Assembly: Notes

  1. Assemble in the order shown in the figure.

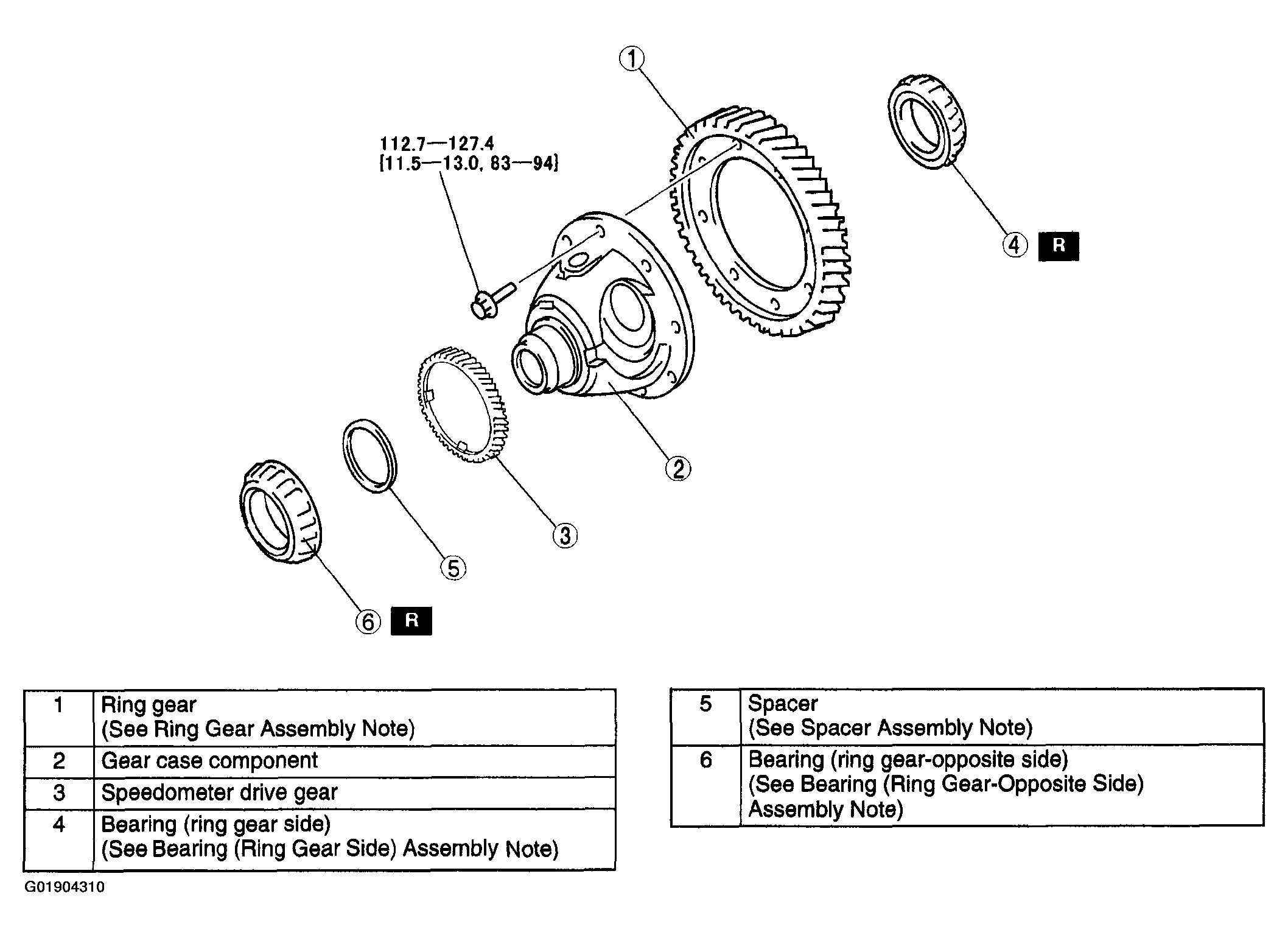

    Fig 1: Assembling Differential
    G01904310Courtesy of MAZDA MOTORS CORP.
