Ring Gear Assembly Note

Install the gear case component, and tighten the bolt in the order shown in the figure.
Tightening Torque
1. 112.7-127.4 N.m {11.5-13.0 kgf.m, 83-94 ft.lbf}

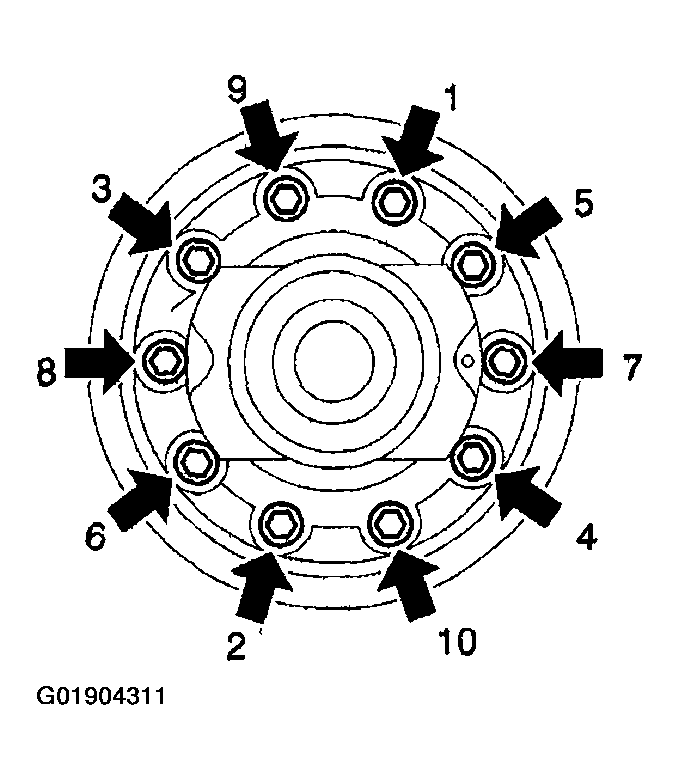

Fig 1: Ring Gear Bolt Tightening Sequence

Courtesy of MAZDA MOTORS CORP.
