Secondary Shaft Components Assembly: Notes

  1. Assemble in the order shown in the figure.

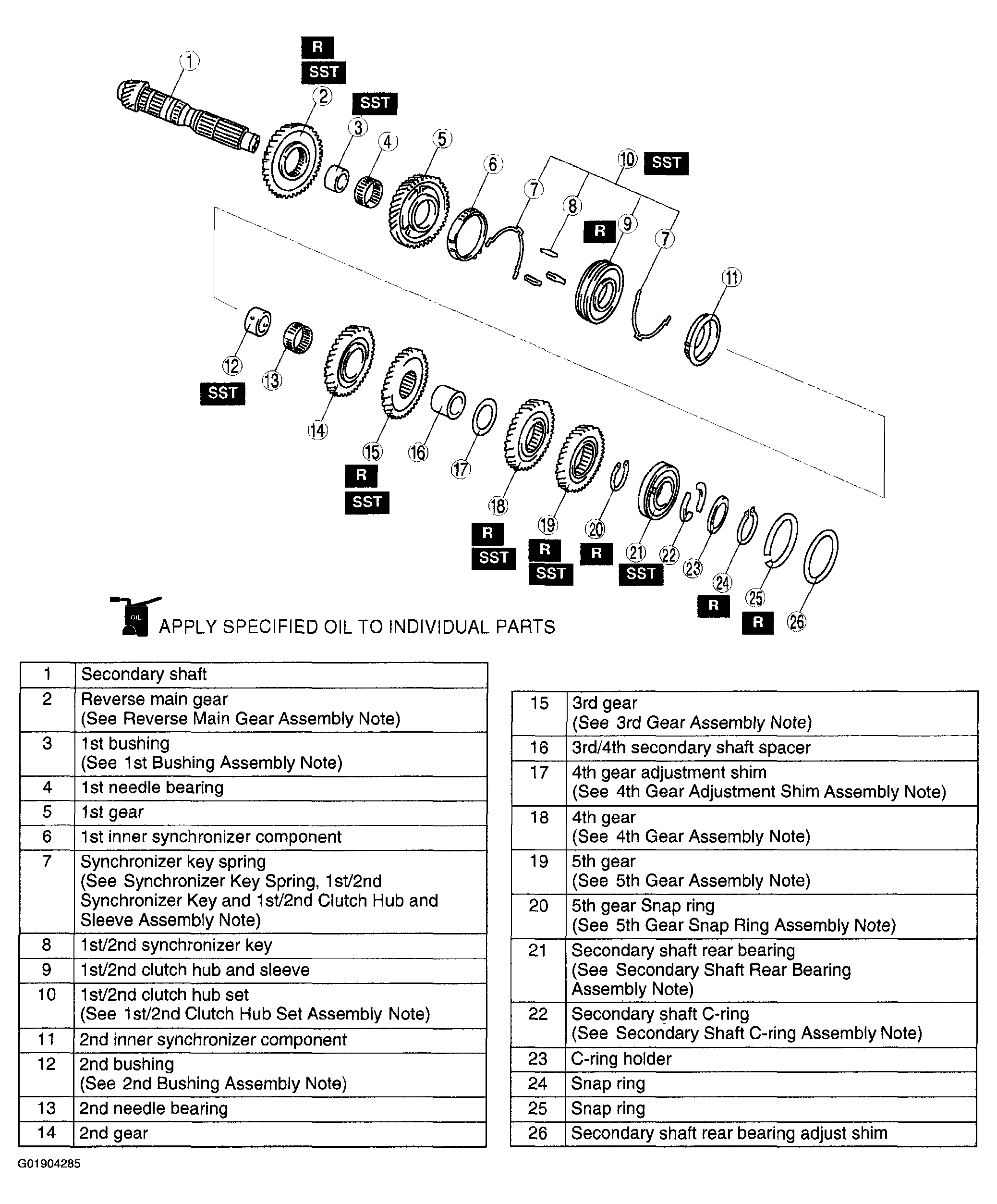

Fig 1: Assembling Secondary Shaft Components
G01904285Courtesy of MAZDA MOTORS CORP.
