Technical Data

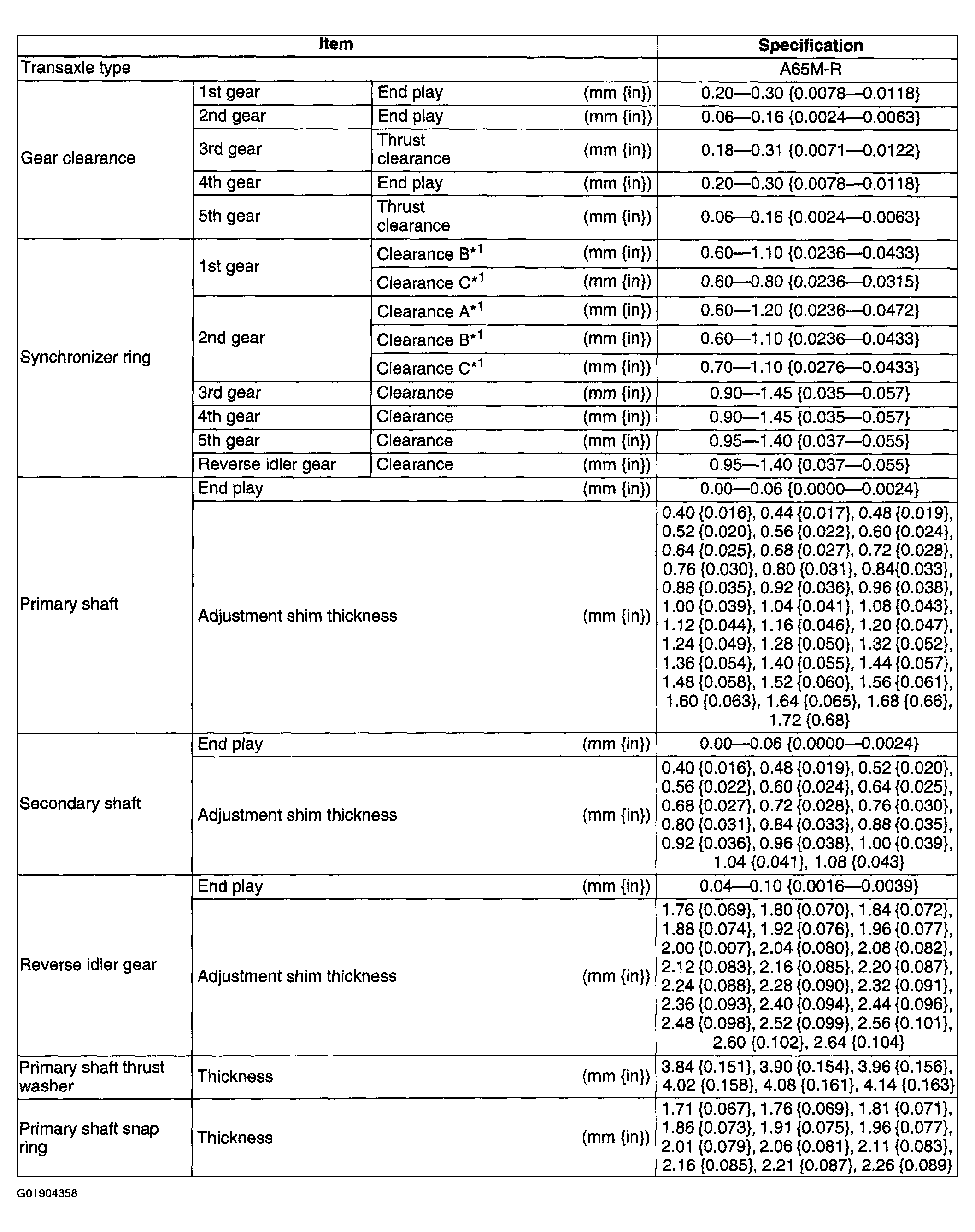

Fig 1: Technical Data (1 Of 2)

G01904358

Courtesy of MAZDA MOTORS CORP.

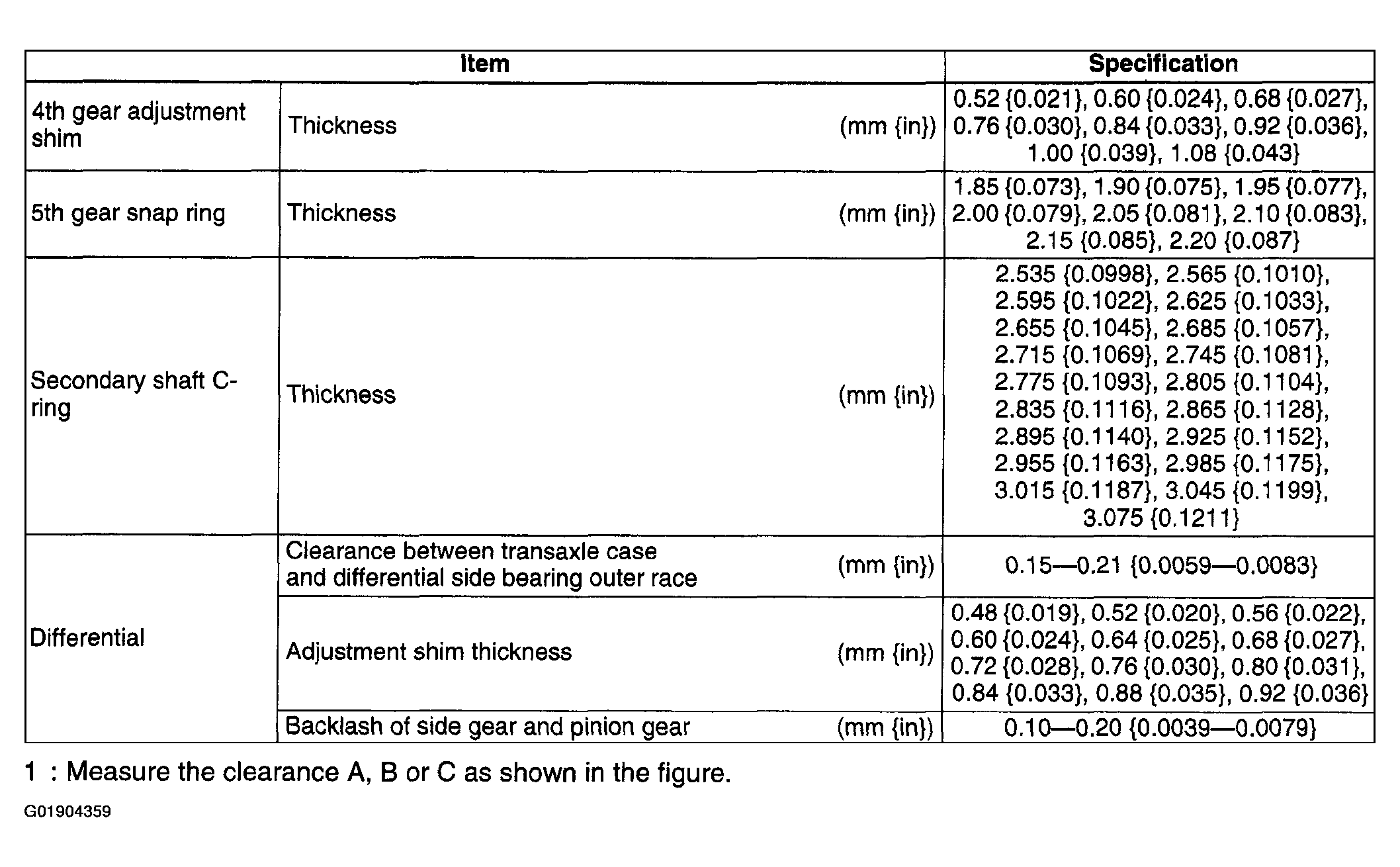

Fig 2: Technical Data (2 Of 2)

G01904359

Courtesy of MAZDA MOTORS CORP.

Fig 3: Measuring Clearances A, B & C

G01904360

Courtesy of MAZDA MOTORS CORP.
