Unable To Configure New Module

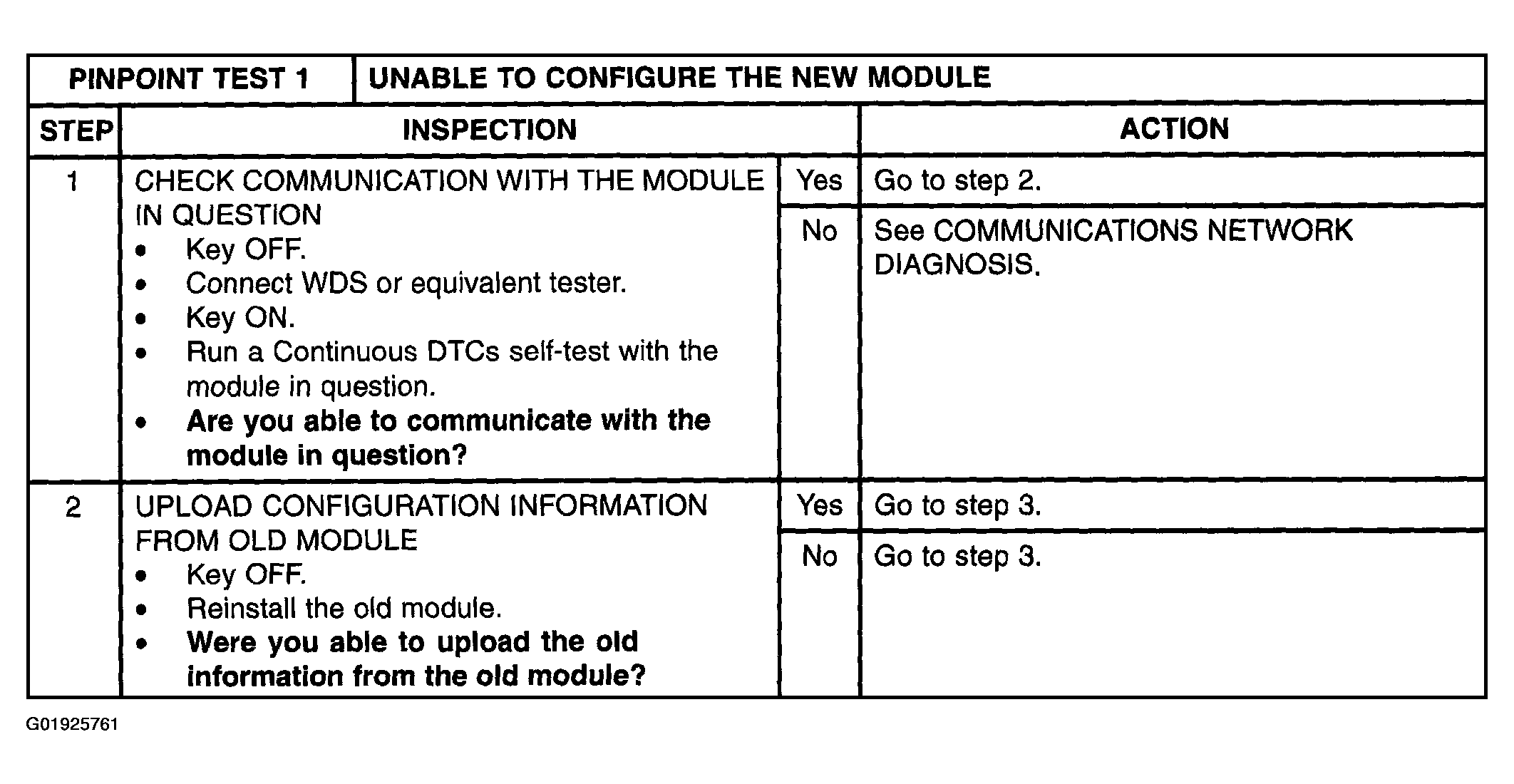

Fig 1: Diagnosis Procedure -- Unable To Configure New Module (Steps 1-2)
G01925761Courtesy of MAZDA MOTORS CORP.

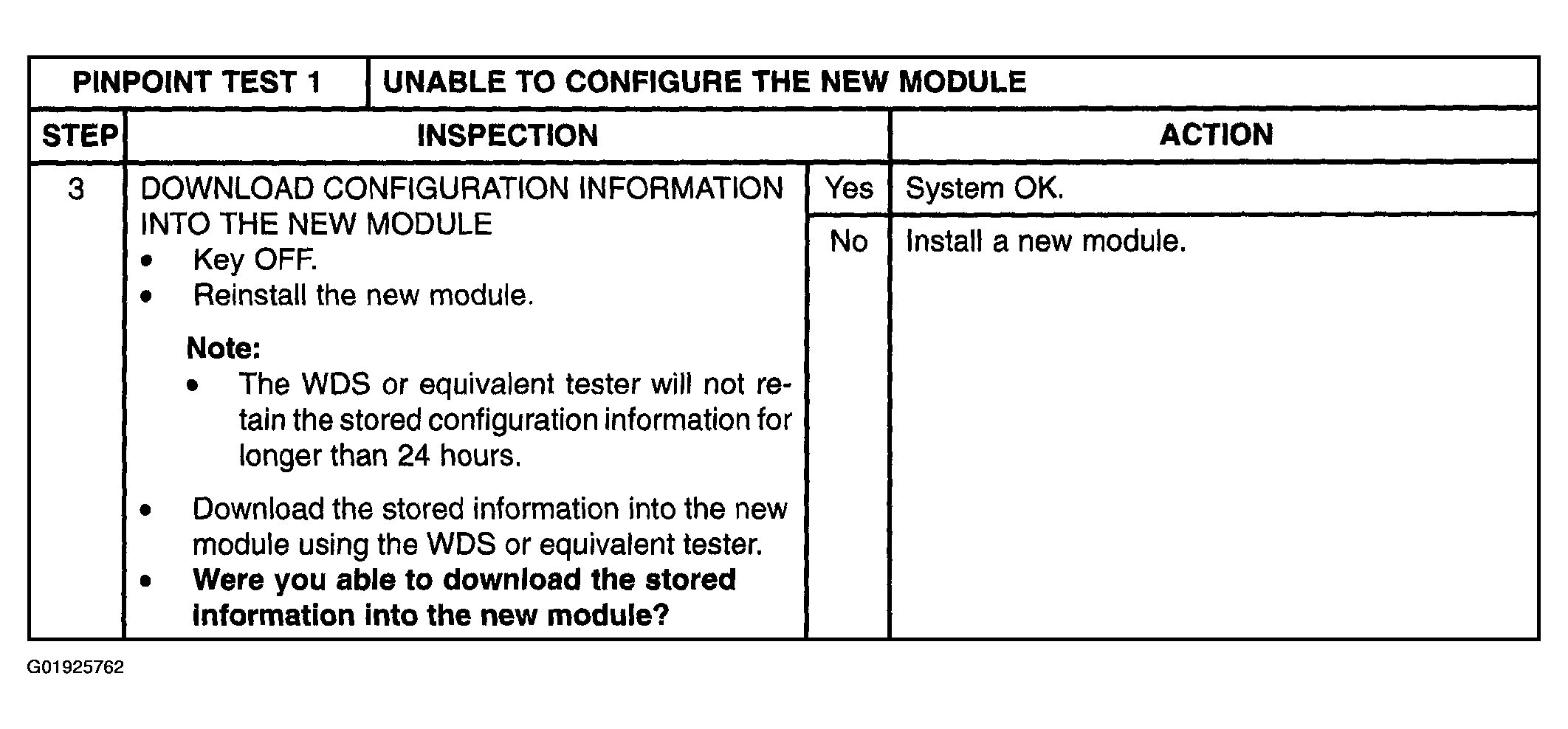

Fig 2: Diagnosis Procedure - Unable To Configure New Module (Step 3)
G01925762Courtesy of MAZDA MOTORS CORP.
